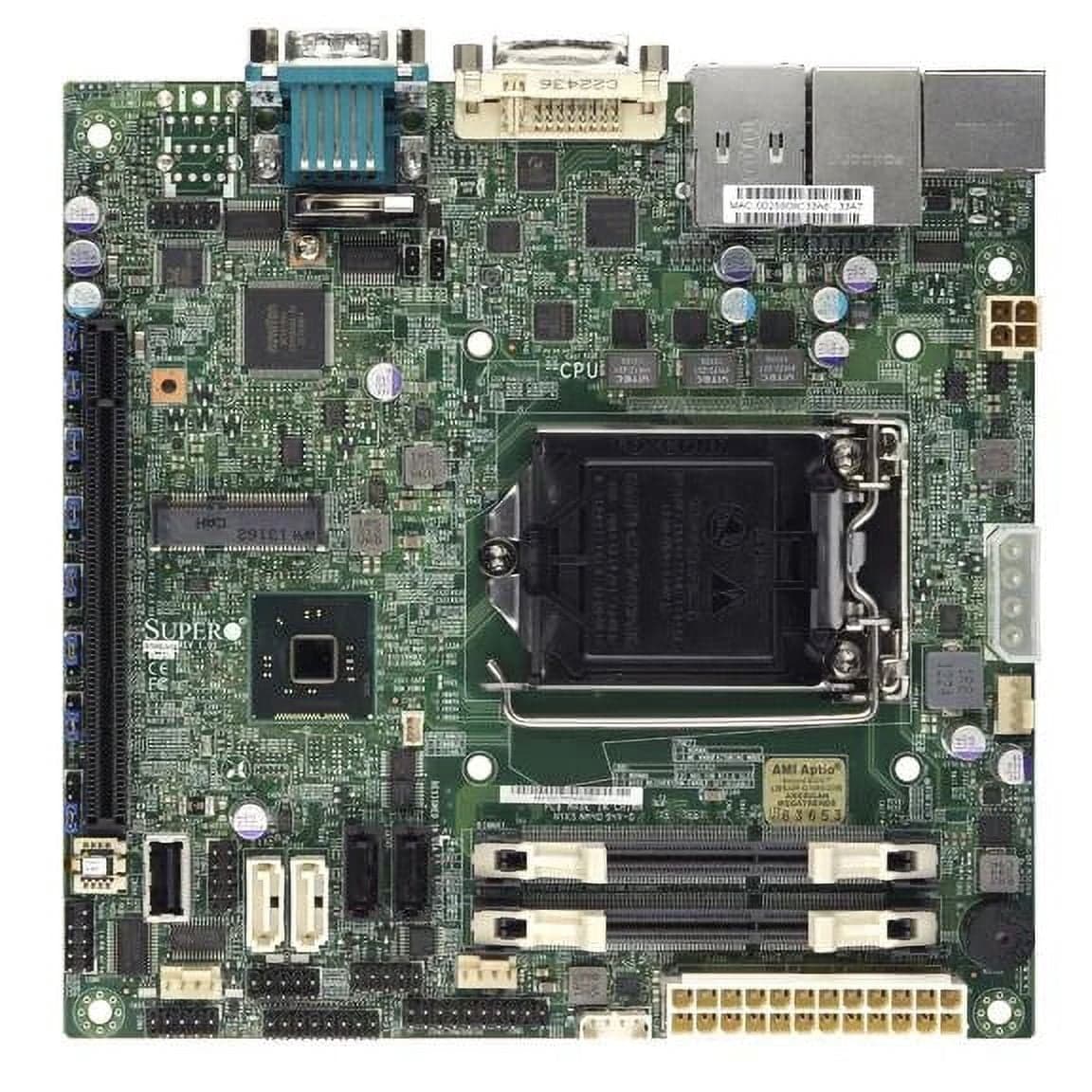

Supermicro X10SLV-Q Mini ITX Server Motherboard (LGA 1150) - Intel Q87 - Supports Intel 4th gen. Core i7/i5/i3, Pentium, Celeron processors

Compact Mini ITX server board with a single H3 (LGA 1150) socket supporting Intel® 4th gen. Core i7/i5/i3, Pentium, and Celeron processors, built on the Intel Q87 Express chipset. Memory is handled by two UDIMM slots for up to 16GB DDR3 non-ECC at 1600MHz. Integrated Intel Processor Graphics offers DisplayPort, HDMI and DVI-I outputs and can drive up to 3 independent displays. Networking includes dual Gigabit Ethernet LAN ports. Storage and expansion feature 4 SATA3 (6Gbps) ports, one PCI-E 3.0 x16 slot and one Mini-PCI-E slot with mSATA support. Rear I/O provides 2 USB 3.0 ports; the board supports a total of 5 USB 2.0 ports (2 rear, 2 via headers, 1 Type A). HD audio is available with front panel audio headers.
