Supermicro X10DRG-HT Dual-Socket R3 (LGA 2011) Server Motherboard — Intel® C612, Dual 10GBase-T, Full Warranty

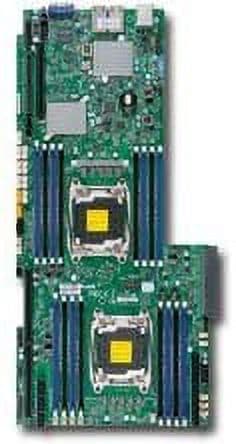

The Supermicro X10DRG-HT is a dual-socket R3 (LGA 2011) server motherboard based on the Intel® C612 chipset. It accepts Intel® Xeon® processor E5-2600 v4†/ v3 family CPUs and supports UPI links up to 9.6GT/s for high-performance multi-CPU configurations. Memory support reaches up to 2TB† using ECC 3DS LRDIMM across 16 DIMM slots, with DDR4- 2400†MHz capability. Expansion options include four PCI-E 3.0 x16 slots plus one PCI-E 3.0 x8 (wired in an x16 slot). Networking is handled by the onboard Intel® X540 dual-port 10GBase-T controller. Storage features ten SATA3 (6Gbps) ports with hardware RAID support for 0, 1, 5 and 10. Remote management is provided by integrated IPMI 2.0 with KVM and a dedicated management LAN port. Rear and header connectivity includes 4 USB 3.0 (2 rear + 2 via header(s)) and 2 USB 2.0 (2 via header(s)). Full Warranty included.
