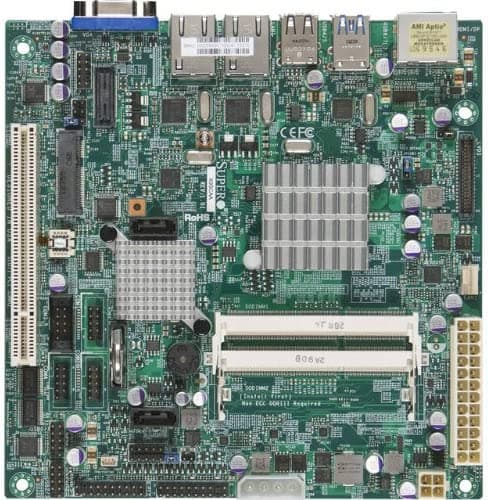

Supermicro MBD-X9SCAA-B Mini-ITX Motherboard — Intel Atom N2800 NM10 DDR3, USB 3.0, Dual GbE, VGA/HDMI/DP (Brown Box)

Compact Supermicro MBD-X9SCAA-B Mini-ITX board with an onboard Intel Atom N2800 Processor (1.8GHz, 1MB Cache, Dual-Core). The CPU is included and supports up to 6.5W TDP while the platform is driven by the Intel NM10 Express chipset. Memory: Two 204pin DDR3-1066 SODIMM slots (single-channel, non-ECC) with a maximum supported capacity of 4GB. Expansion: 1x Mini PCI-Express slot (with mSATA support) and 1x 32-bit PCI slot (5.0V) for additional cards. Storage: 2x SATA2 ports for connecting drives. External I/O: 2x USB 3.0 ports and 6x USB 2.0 ports (2 on the rear I/O, 4 available via headers). Video outputs include 1x VGA port, 1x HDMI port and 1x DisplayPort. Network connectivity is provided by 2x RJ45 LAN ports. LAN Controller: Intel 82574L Dual Port Gigabit Ethernet controller. Form Factor & Packaging: Mini-ITX form factor; ships in Brown Box.
