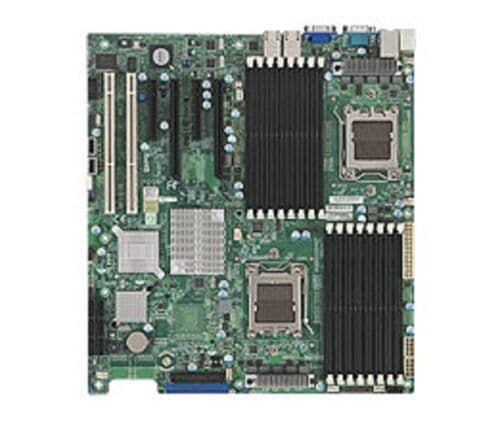

Supermicro H8DII+-F Retail Server Motherboard — Dual 1207-pin Socket F for AMD Opteron 2000, AMD SR5690/SP5100, SATA2, Intel 82574L Dual LAN

Overview: Supermicro H8DII+-F is a dual-socket server motherboard built for the AMD Opteron 2000 family. It accepts two processors in 1207-pin Socket F and is compatible with Dual Six-Core/Quad-Core AMD Opteron 2000 Series CPUs. Chipset: AMD SR5690 & SP5100. Memory: 16x 240pin DDR2-800/667/533 DIMMs, operating in dual-channel mode with ECC/REG support. Maximum supported memory capacity is 128GB. Expansion Slots: 2x PCI-Express 2.0 x16 Slots; 2x PCI-Express 2.0 x8 Slot; 2x PCI-X 64-bit 133/100MHz slots. Storage: 1x ATA-133 channel and 6x SATA2 ports. Onboard storage supports RAID 0, 1, 10 configurations. Rear and Internal I/O: 6x USB 2.0 Ports (2 rear, 2 type A, 2 by headers); 1x VGA; 1x Floppy Port; 2x PS/2 Ports; 2x Serial Ports (1 rear, 1 by header); 2x RJ45 LAN Ports. Networking: Dual-port Gigabit Ethernet provided by Intel 82574L Dual-Port Gigabit Ethernet Controllers. This retail motherboard is intended for high-density server deployments requiring dual Opteron processors, extensive DDR2 memory capacity, multiple expansion slots and redundant gigabit networking.
