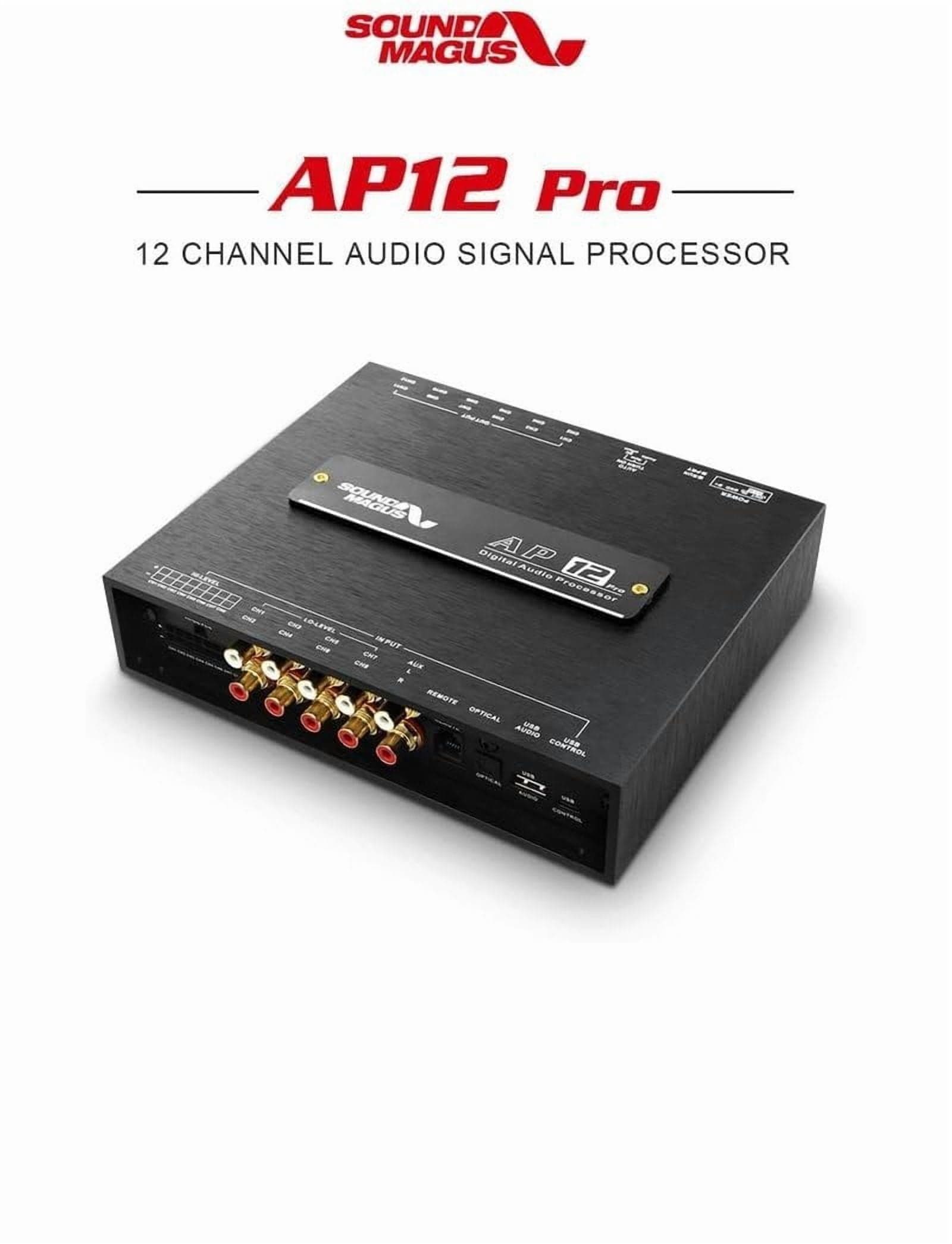

SOUND MAGUS AP12V3 AP12 Pro 12-Channel DSP Car Audio Processor — Bluetooth 5.0, USB & Optical, 12 RCA Outputs, 8 Inputs

Compact 12-channel digital signal processor for car audio tuning. The SOUND MAGUS AP12V3 (AP12 Pro) delivers precise control over up to twelve amplifier channels and can be operated from a Bluetooth-capable device or your head unit. It accepts multiple input types for flexible system integration and provides clean low-level outputs for driving external amplifiers. Includes an under-dash master controller knob with plug-in extension cable for convenient on-the-fly adjustments, plus a USB to USB-C extension cable and attractive gift box. Features: - 12-channel digital signal processor (DSP) with 12-channel low-level outputs - 8 input channels (low/high) plus optical and Bluetooth stereo 24-bit/96kHz input options - Supports Bluetooth 5.0 for wireless audio control - Integrated remote/master controller under-dash knob (with plug-in extension cable) - USB to USB-C extension cable included for playback of sound libraries - High signal-to-noise ratio: >97dB for clean audio - Channel separation: 80dB 1kHz - Compact dimensions for easy installation: 165mm x 198mm x 43mm 6.50 in. x 7.80 in. x 1.70 in. Electrical and performance specifications: - Working Voltage : DC 8.2-16V - Frequency Response : 10Hz 22kHz - Signal-to-Noise Ratio : >97dB - Channel Separation : 80dB 1kHz - Inputs : 8-channel low/high-level, optical, Bluetooth stereo 24-bit/96kHz - Outputs : 12-channel low-level output - Maximum Output RMS : 8-channel at 20W each Utility: Use the AP12V3 as an interface between your car radio or as a standalone controller to manage multiple amps and speaker zones. The unit supports up to 8 in 12 out configurations and is built for installers and enthusiasts who need precise multi-channel distribution and tuning in a compact package.
