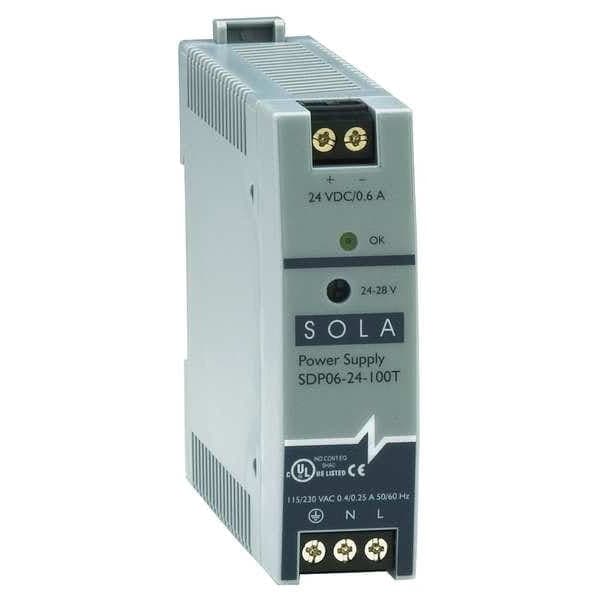

Solahd SDP0624100T DIN-Rail DC Power Supply — 24–28VDC, 0.6A, 15W (47–63Hz)

Compact 15W switching power supply from Solahd, model SDP0624100T, designed for DIN-rail mounting and industrial control applications. It provides an adjustable 24 to 28V DC output at up to 0.6A from a wide 85 to 264V AC input and operates on single-phase power (47 to 63 Hz). Key features: adjustable output; low output noise (less than 50mV); built-in overvoltage and short-circuit protection; Powerboost(TM) industrial overload design for temporary surge handling; screw terminal connections; tool-free mounting; ultra-slim 15W footprint; green LED status indicator. Standards and ratings: cUL us E61379, cURus E137632 E234790, CE, Class 2 NFPA70 Series SDP. NEMA Rating 1, IP20. Technical specifications: - Input Voltage: 85 to 264V AC - Output Voltage: 24 to 28V DC - Power Rating: 15W - Output Amps: 0.6 - Frequency: 47 to 63 Hz - Phase - Electrical: Single - Mounting: DIN Rail - Topology: Switching - Case Material: Plastic - Case Height: 2.95 in - Case Width: 0.9 in - Case Depth: 3.8 in - Output Noise: Less Than 50mV - Hold Up Time: Greater Than 25 msec - Status Indicator: Green LED This unit combines a slim mechanical profile with industrial protection features and recognized safety approvals, making it suitable for compact control panels and machine automation systems.
