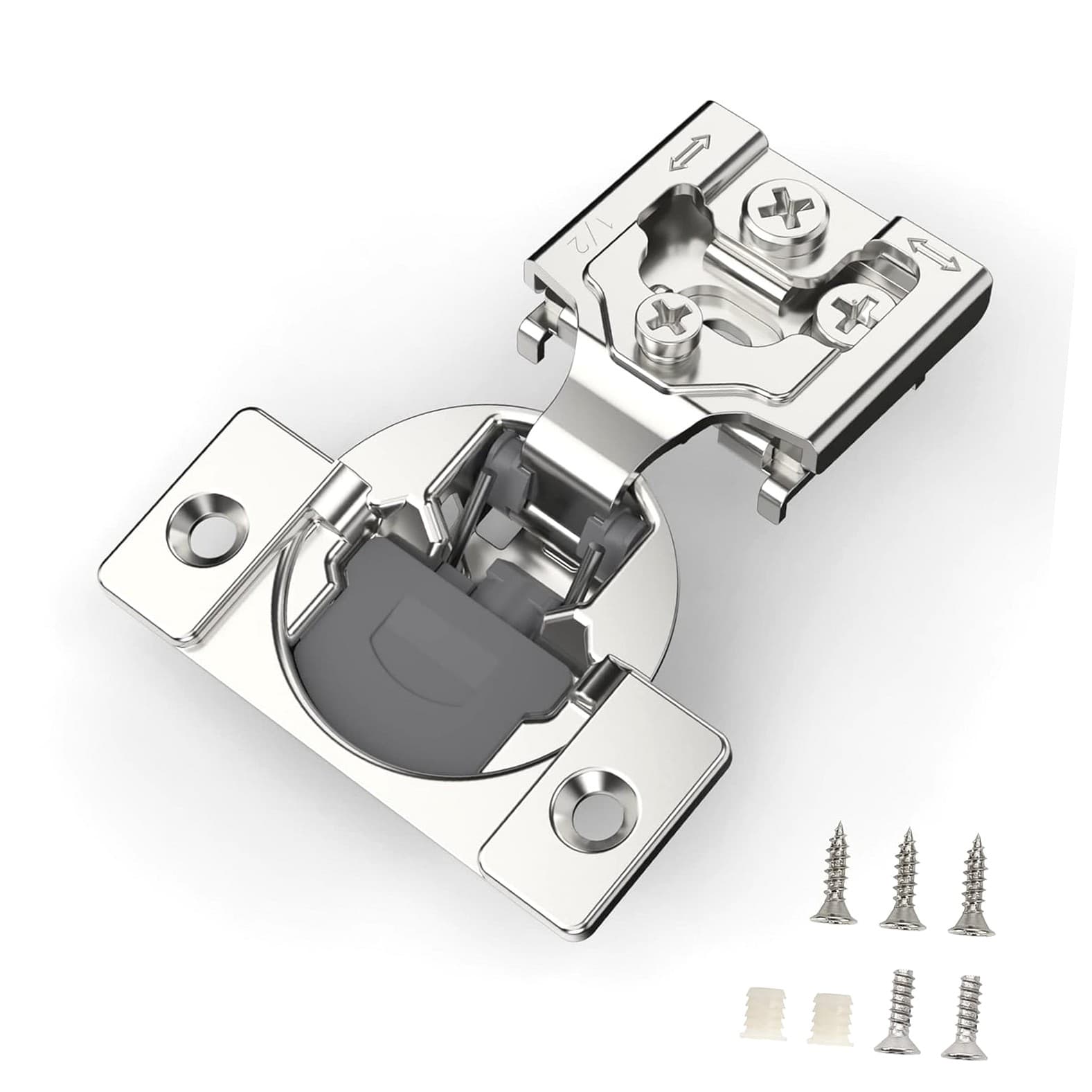

SKYSONIC 30 Pieces 1/2 inch Overlay Soft Close Cabinet Hinges for Face Frame Cabinet, Steel, 105 Degree Opening Angle, Self Door Hinges with 3

3-Way Adjustment Structure (Vertical, Horizontal, and Depth) Soft Close that gently pulls the door shut for smooth, silent . Reduced speed helps little fingers and minimizes unwanted noise in the kitchen. 30 Pieces 105 Degree Face Frame 1/2" Overlay Self- / Soft Close Cabinet Door Hinges, 1/2" Overlay Hinges are for pairs of doors in the middle of cabinet runs.

They are easily installed requiring minimal carpentry Cup Diameter: 35 mm (1-2/5"), Depth of cup: 11.6mm(9/20"), Hole Distance: 45 mm(1-4/5"), Material: -rolled Steel, : Nickel Plated, Opening Angle: 105 Degree These types are for face frame cabinets.

It' practical for kitchen cabinet doors, wardrobes, tv cabinets, bookcases, drawers, and other door connections HOW TO SELECT: You to the thickness of the cabinet side panel (measure the distance where the door panel overlaps the cabinet face) rather than the thickness of the cabinet door. You must cabinet hinges that match the side thickness of your cabinet.

For instance, if the thickness of the cabinet side panel is 1/2", then you should select the corresponding 1/2" hinges
