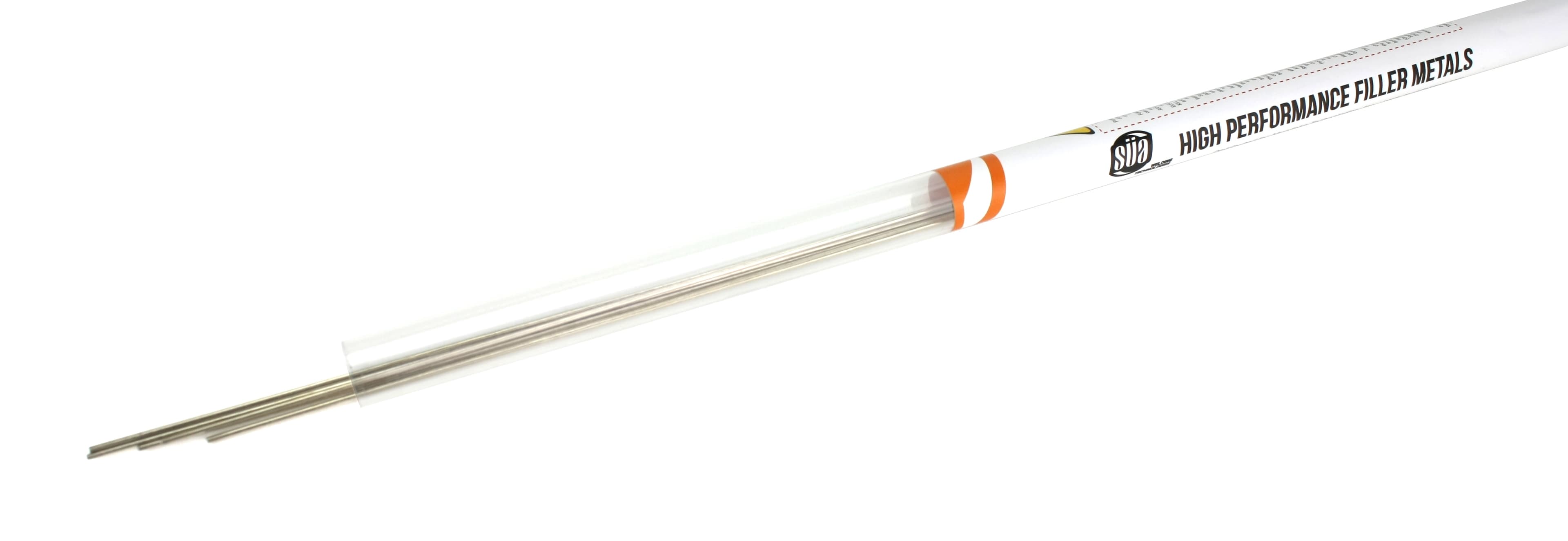

Silver Brazing Solder Rod - Bare - 45% Ag - AWS BAg-5 - Size: 1/16" x 18" - (5 Sticks)

SÜA 45% Silver Brazing is a cadmium-free alloy with an intermediate melting temperature range of (145°F/63°C) with good fillet forming properties, the plastic range of this rod gives an advantage when filling loose connections. This 45% silver alloy has good joint strength and ductility at a moderately higher temperature. Complies with ANSI/AWS A5.8 ASME SFA 5.8, QQ-B-654A Class BAg-5 specifications. It can be used for brazing of tubular assemblies, brazing of musical brass instruments, brass lamps, aircraft engine oil coolers. SÜA 45% Silver is a general-purpose, brazing filler metal for use where cadmium-free filler metal is required. The final properties of a joint brazed with SÜA 45% Silver are dependent upon numerous factors including base metal properties, joint design and metallurgical interaction between the base metal and the filler metal. Diameter of rod: 1/16” - Length: 18” - No flux is required for copper brazing. For brazing brass or copper to brass, use white silver brazing flux. Available in 3, 5 and 9 Sticks Packages. Select your option from the menu.
