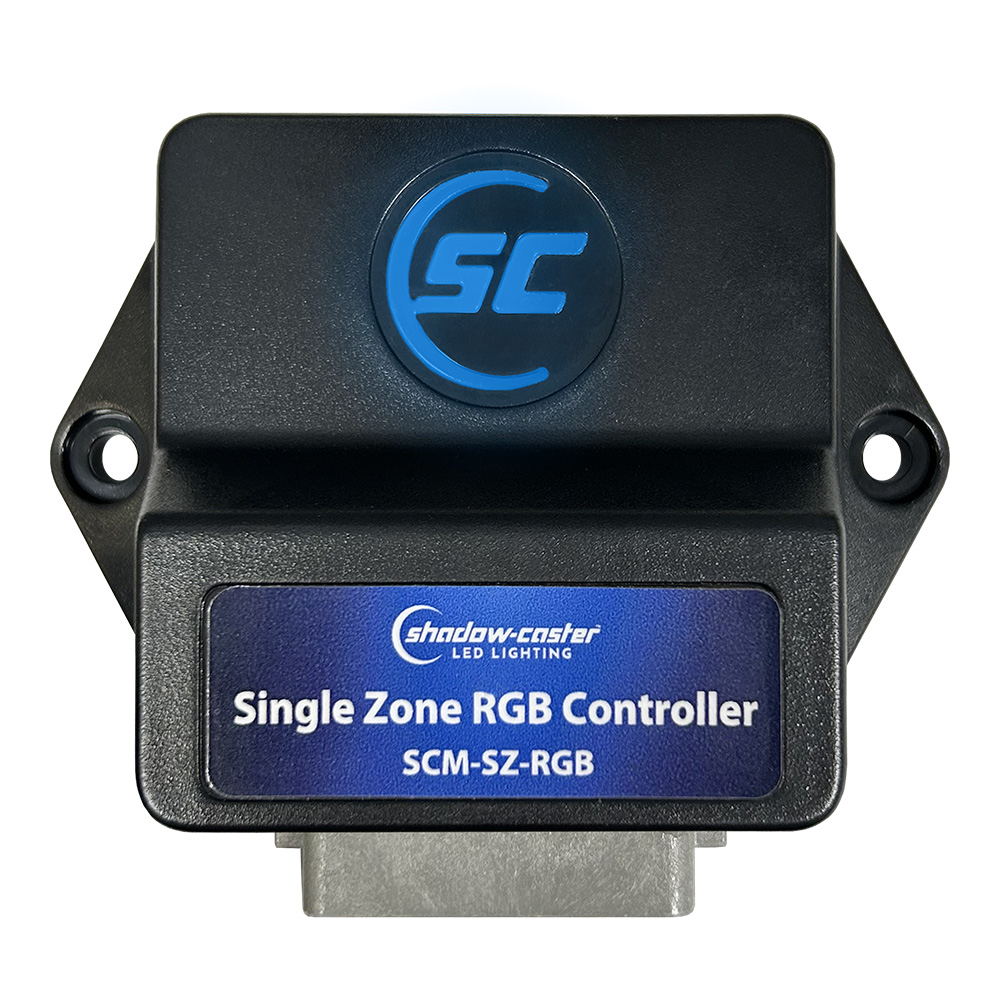

Shadow Caster SCM-SZ-RGB RGBW Boating sku-16545821813

Shadow Caster SCM-SZ-RGB, sku-16545821813, is a single-zone RGB(W) LED controller for Boating. A standard push-button switch can set color and brightness. Its built-in Shadow-NET® interface synchronizes those settings with other Shadow-NET® devices, including compatible underwater and interior lights. The backlit SC logo shows color and brightness and flashes red when it detects a fault.

The controller supports color rotation, single-color fade and multi-color fade, detects the white channel automatically and has overcurrent protection. It works with an off/on/momentary switch or a single momentary push button. The SCM-RGB-EXP expansion module adds RGBW capacity for another zone.

Maximum current draw is 10A; the housing and connector have an IP67 rating, and operation is compatible with 12V and 24V. Controller dimensions are 3.5 by 2.9 by 1.2 inches (88 by 72.4 by 30.6mm). The listed box dimensions are 2 inches high by 4 inches wide by 4 inches long, and the listed weight is 0.6 lbs.

The source also lists the type as Covers, UPC 8500563200234, and a quick guide and owner's manual in PDF format.
