SG04 Stress Analyzer 4 Channels Analysis Realizes Instrument 4GB Memory SD Card 4000MAH Battery Capacity

1. Operation interface 4.3 inch touch color screen 2. Mode 3 3. Channel 4 4. Precision 5. Resolution: Stress mold: 0.1N; Strain mode: 1ue; Weighing mode: 0.01g 6. Stress test range: -10000-+10000N 7. Strain test range: -10000- +10000ue 8. Weighing test range: 0-9999KG 9. Power supply: rechargeable polymer lithium battery 8.4V 10. Working current: 500MA 11. Battery capacity: 4000MAH 12.

Charger interface: DC005 5.5-2.5 13. Standby battery life: 4H 14. Working status Battery life: 2H 15. Working temperature: 0-45 degree 16. Storage temperature: -10-60 degree 17. Weight 800g A) Relay acquisition, four channels to ensure that they do not interfere with each other.

B) Multi-mode application, realizes instrument multi-function: The instrument has stress test function, strain test function and weighing function, which can realize high-precision stress-strain analysis and accurate object weighing.

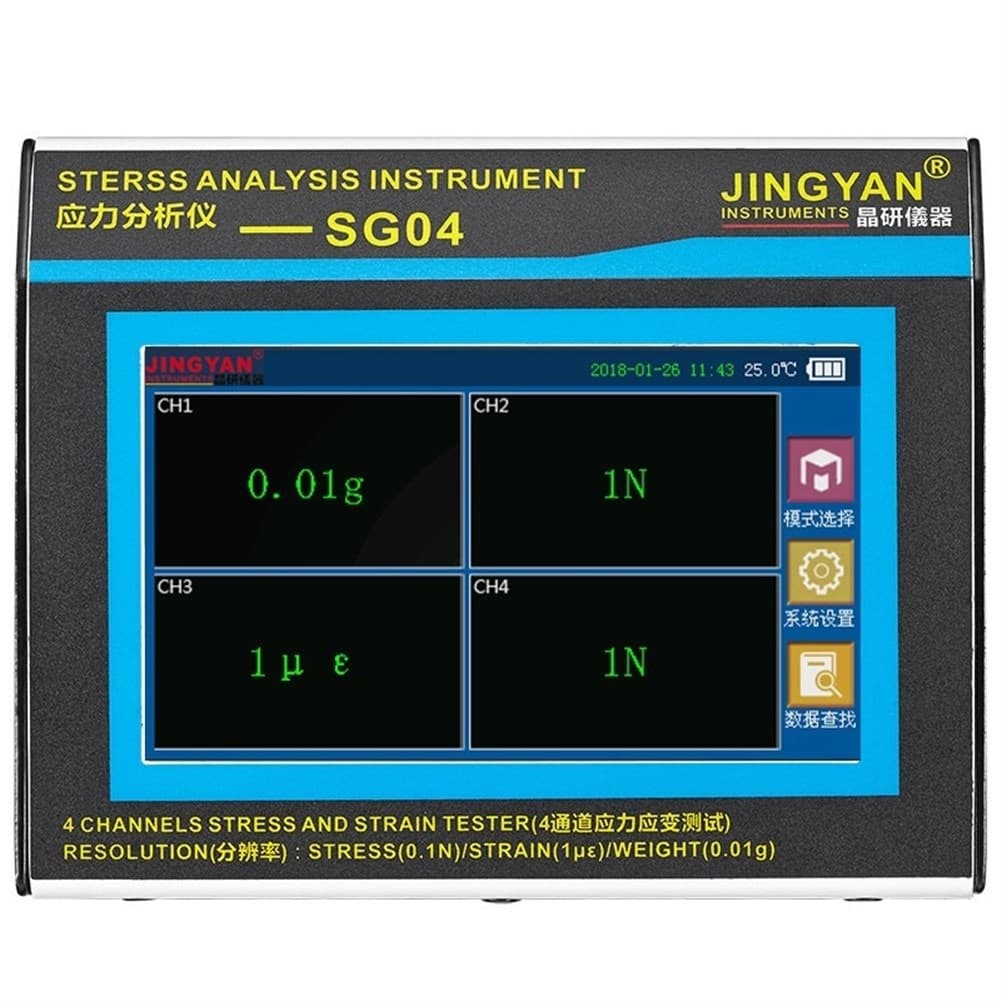

C) Touch color screen, display is intuitive, easy to operate: 4.3-inch color touch screen, can view 4 channels of test data at the same time, can also view the test data curve of each channel, graph the force situation, visually reflect the degree of stress; touch screen operation, More human than the physical button.

D) SD card saves data, easy to operate: save the data in the SD card, insert the instrument, you can save the data in the instrument; insert the computer, you can operate the data on the computer, open or read according to the user's needs Easy to operate. E) The USB serial port is connected to the computer end to read data in real time, and the analysis is more convenient.

F) Lightweight design for easy portability. G) Dual-purpose bracket, which can be placed on the horizontal plane or in the vertical plane.
