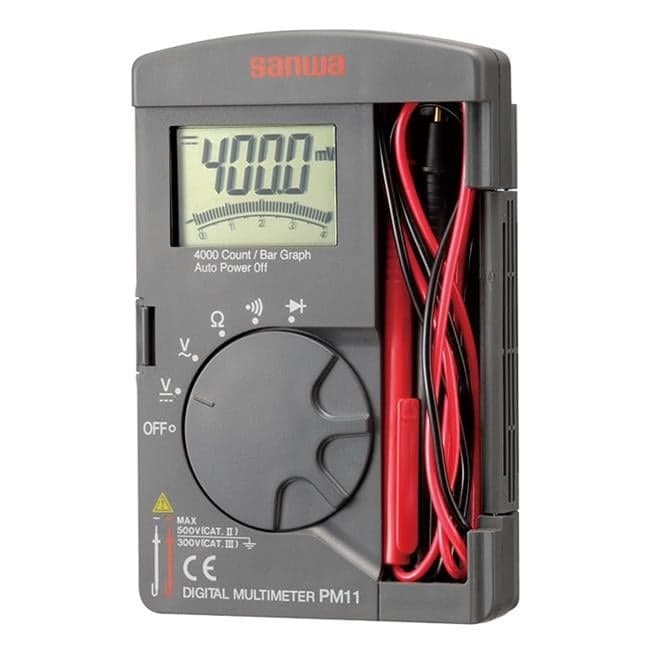

Sanwa Pocket Digital Multimeter PM11 with 4000 Count Display

This Sanwa PM11 is a pocket-size digital multimeter with a 4000-count display and 0.8% accuracy, designed to be portable and used for low voltage circuit measurement. The device features an analog bar-graph on the display with 40 segments, which is meant to imitate the needle in an analog multimeter.

The instrument has been designed in accordance with the safety standard IEC 61010-1 Measurement Category II, ensuring its safe use for measuring mains sockets and electrical appliances. The PM11 digital multimeter offers features such as measuring voltages, resistance, and continuity, with the voltage and resistance functions having a full auto-range feature.

The device uses the "dual-integration" measuring method, which converts the voltage into time and provides stable measurements with high accuracy, resolution, and noise rejection ratio, particularly at 50 or 60Hz power line frequency.

The all-plastic build of the PM11 includes a compartment in the front for the testing leads, and the cleverly designed cover folds flat in the back when in use, protecting the unit when closed.
