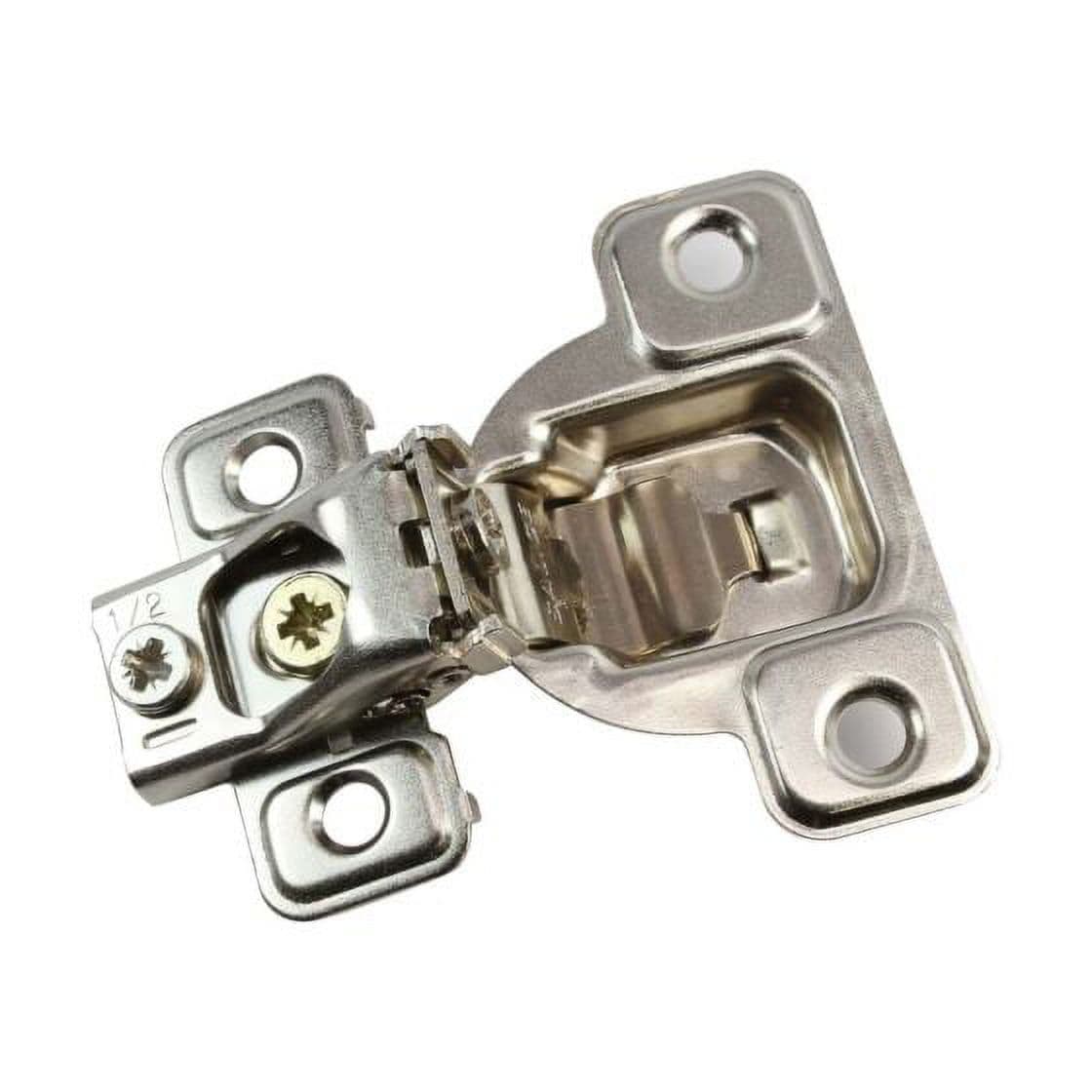

Salice 25-Pack 106 Degree 3/4" Overlay, Excenthree Face Frame Hinge with 3 Cam Adjustment, Nickel Finish

Self-closing hinge via a spring mechanism 106-degree opening angle 3/4" overlay 35mm bore diameter 7/16" cup depth For face frame applications only. Screw on application Made of steel 3-cam adjustment (height, depth, and side-to-side) Drilling distance of 3/32" (2.5mm) Screw Hole Distance: 45mm Height Cam Adjustment: +/-2mm(3/32") Depth Cam Adjustment: -0.5mm(-1/64"), +2.5mm(+7/64") Side Cam Adjustment: +2.8mm(+7/64"), -1.5mm(-1/16")
