Rockford Fosgate DSR1 8-Channel DSP with Integrated iDatalink Maestro Module

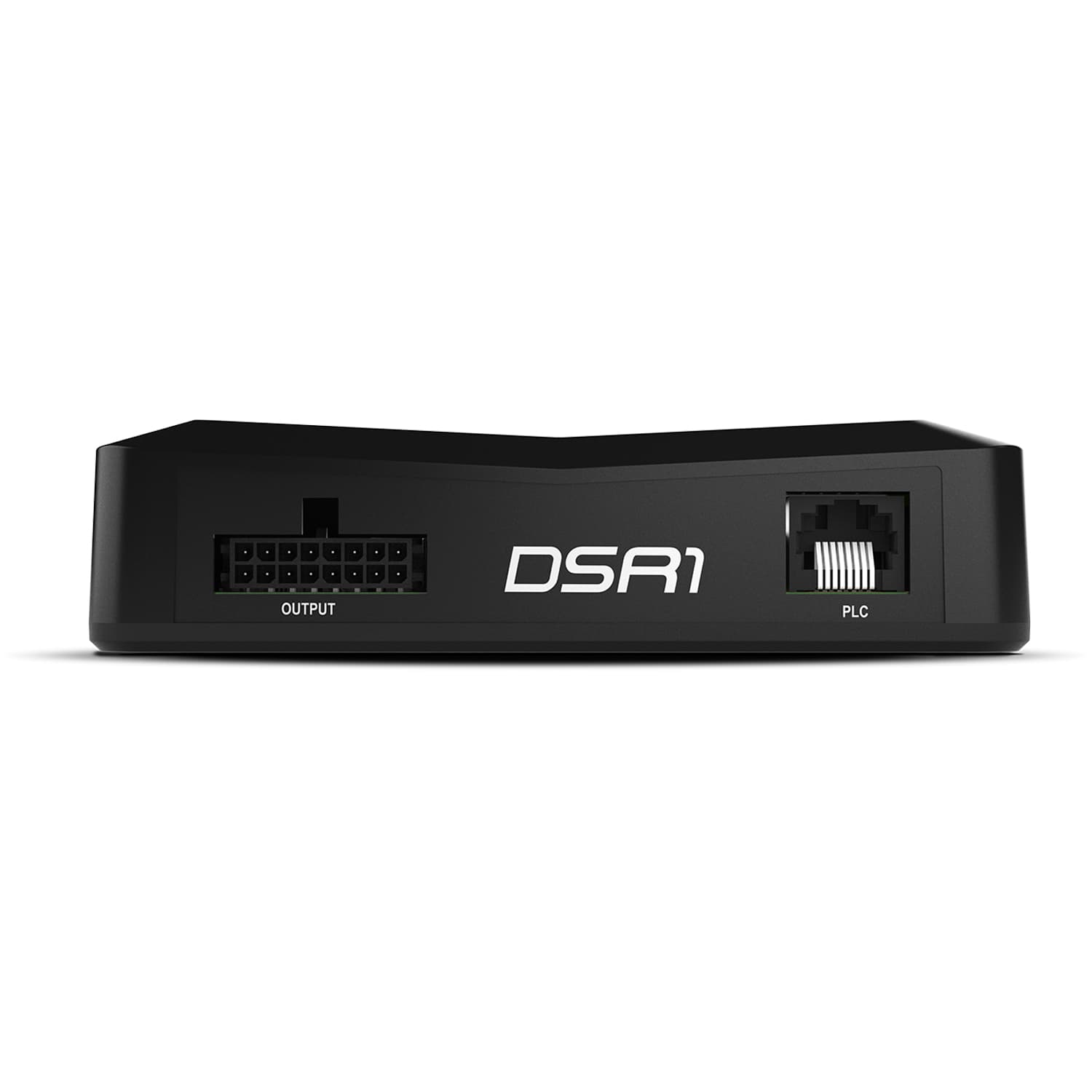

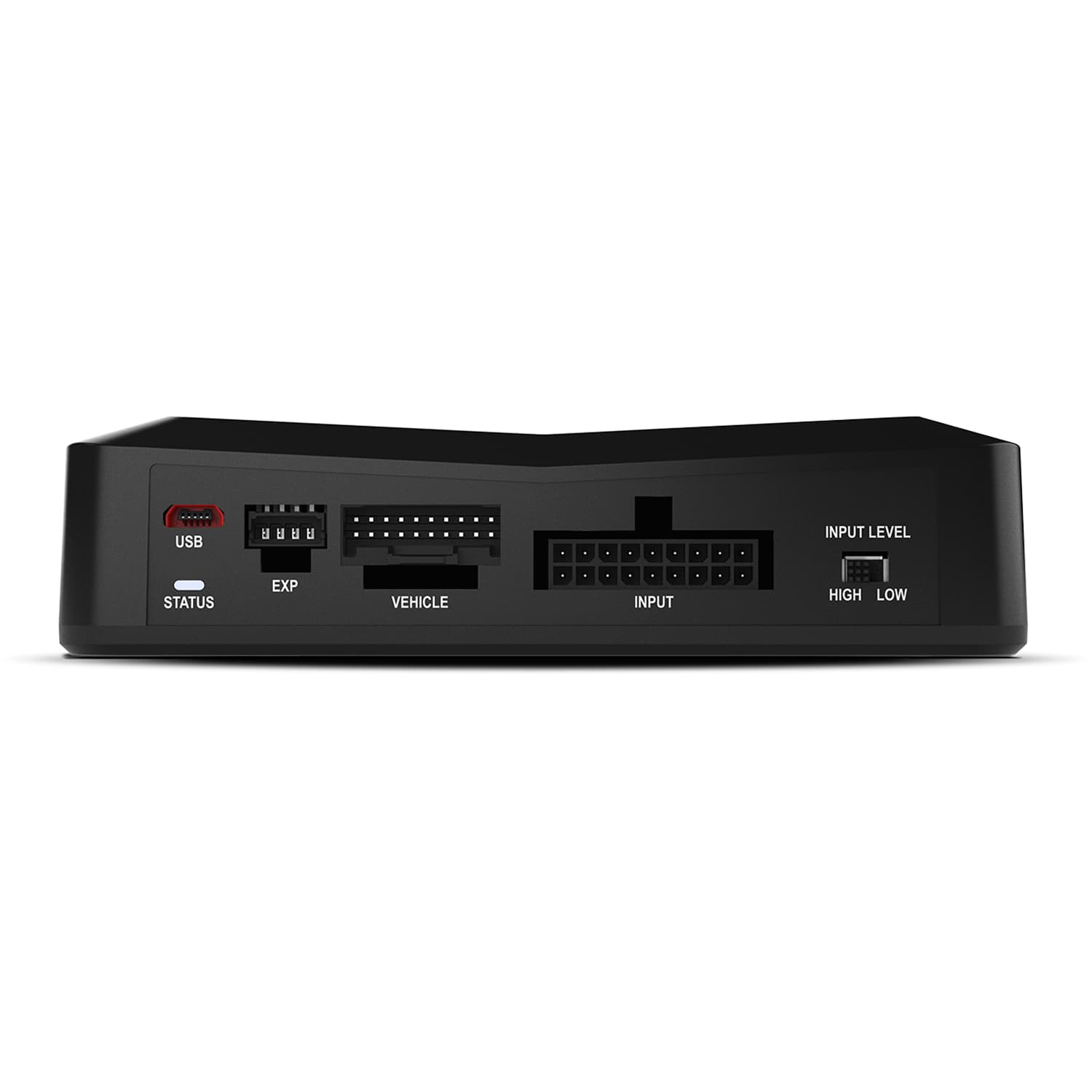

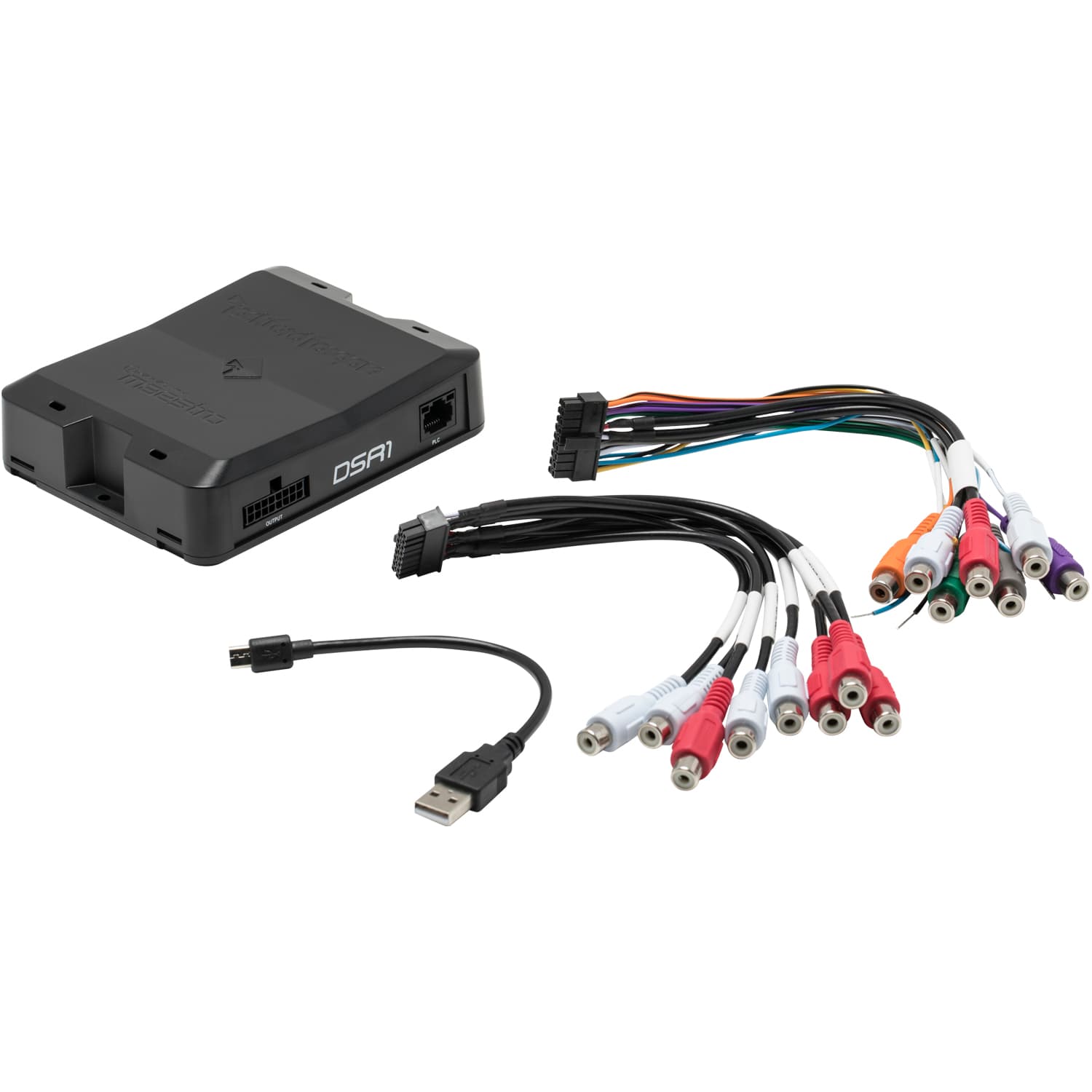

Compact 8-channel digital signal processor from Rockford Fosgate featuring an integrated iDatalink Maestro CAN interface for seamless vehicle integration. Inputs include 4-channel balanced differential RCA and 4-channel high-level inputs with signal-sense turn-on, plus auxiliary RCA and S/PDIF coaxial inputs. The unit provides remote turn-on in/out with an adjustable turn-on delay and supports an optional PLC2 level controller with assignable functions. Connection harnesses: 18-pin analog input harness and 16-pin analog output harness; compatible with select Maestro vehicle T harnesses. Setup and firmware updates are handled via the Micro-USB port, and Bluetooth 4.0 enables convenient configuration. Tuning capabilities include 245 bands of equalization for aftermarket tuning, adjustable crossovers with selectable slopes, and up to 10 milliseconds of delay on each channel for precise time alignment. The interactive tuning interface is controlled through an Android/iOS app. CE and FCC compliant. Dimensions: 5.12 x 4.04 x 1.26 inches; Weight: 0.5 pounds. Manufacturer warranty: 1-year warranty.
