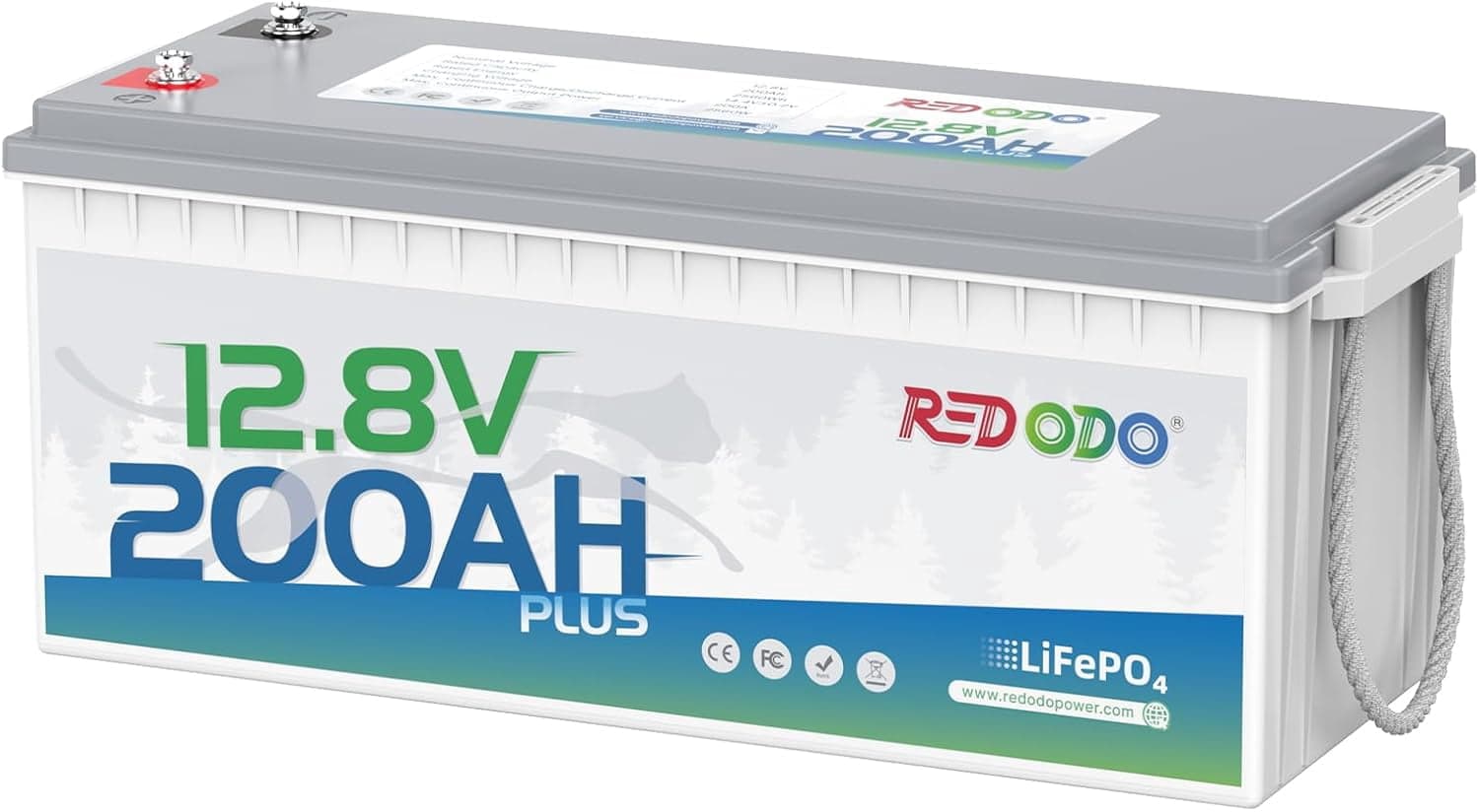

Redodo R12V200-200-PLUSN White sku-1981797338 Battery

Redodo R12V200-200-PLUSN is a White 12V 200Ah PLUS LiFePO4 battery with automotive-grade cells and UL testing reports. Its 200A BMS protects against overcharging, over-discharging, over-current, short circuits and overheating. Maximum load power is 2560W.

The battery provides 2.56kWh (12.8*200*100%=2.56kWh), compared with 2.4kWh of usable energy from four 100Ah lead-acid batteries (4*12*100*50%=2.4kWh). It weighs about 1/5 as much as four 100Ah AGM batteries and fits a BCI Group 6D battery box for replacing a lead-acid 200Ah system.

Up to 16 batteries can be connected in 4P4S for a 51.2V 800Ah bank, with up to 800A continuous current, 40.96kW maximum load power and 40.96kWh total capacity. It is rated for up to 15000 cycles at 60% depth of discharge and 4000+ cycles at 100% depth of discharge, with an expected 10-year service life and roughly 5X the lifespan of comparable lead-acid batteries.

Charging current can range from 0.2C to 0.5C; 0.2C is recommended for daily charging. A 14.6V 40A LiFePO4 charger takes about 5 hours to charge it fully. It is intended for RVs, boats, caravans, solar homes, off-grid storage, emergency backup and trolling motors, but not as a starter battery for cars or golf carts. General Electronic Accessories; sku-1981797338; UPC 723884710475.
