Redodo R12V100-100-MININ White Battery sku-536160085

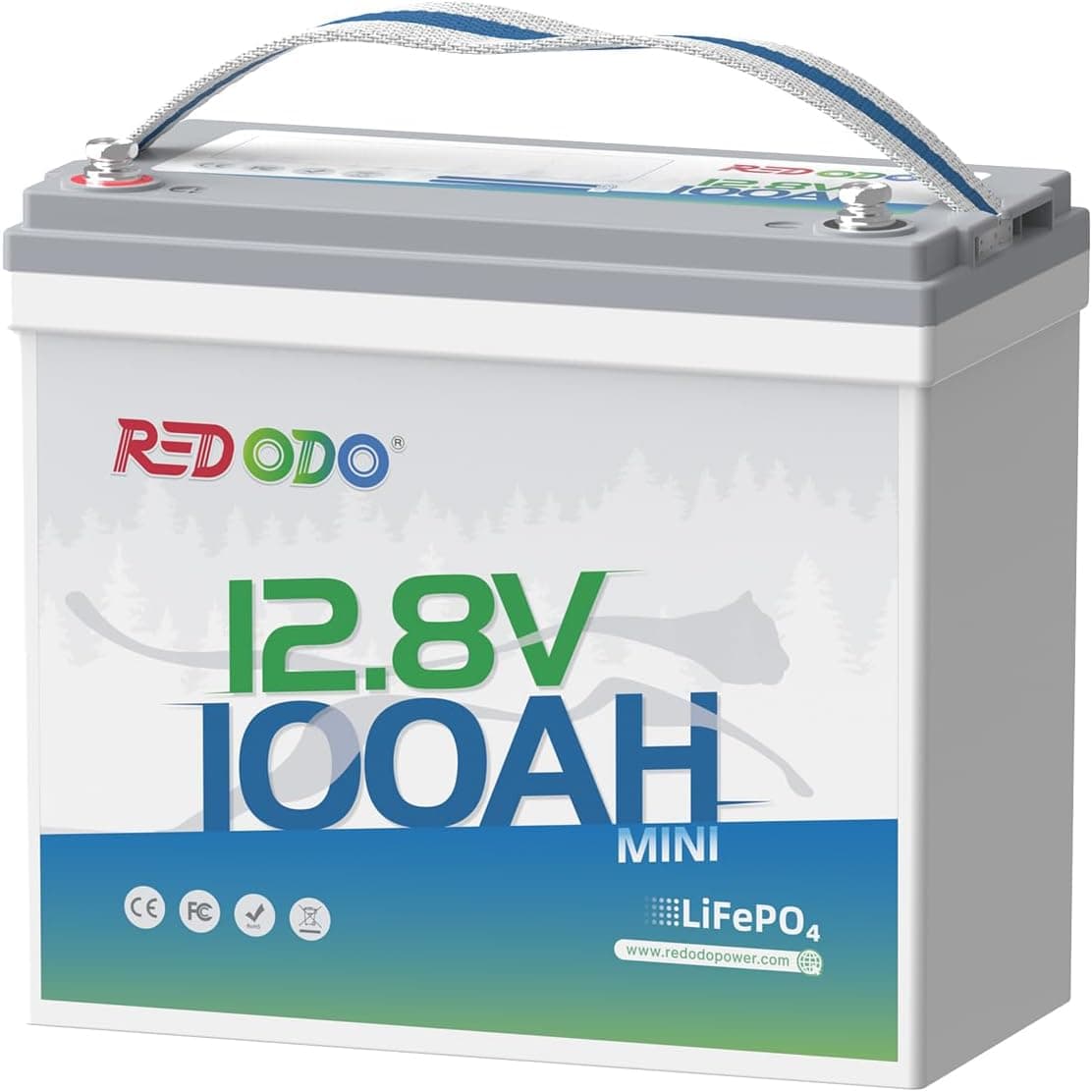

The White Redodo R12V100-100-MININ is a One Size LiFePO4 battery listed under Engine & Powertrain Replacement Parts. Its SKU is sku-536160085 and its UPC is 791755564120. This 12V 100Ah battery stores 1280Wh and measures 10.23 x 5.23 x 8.95 inches; it weighs 19.84 lbs.

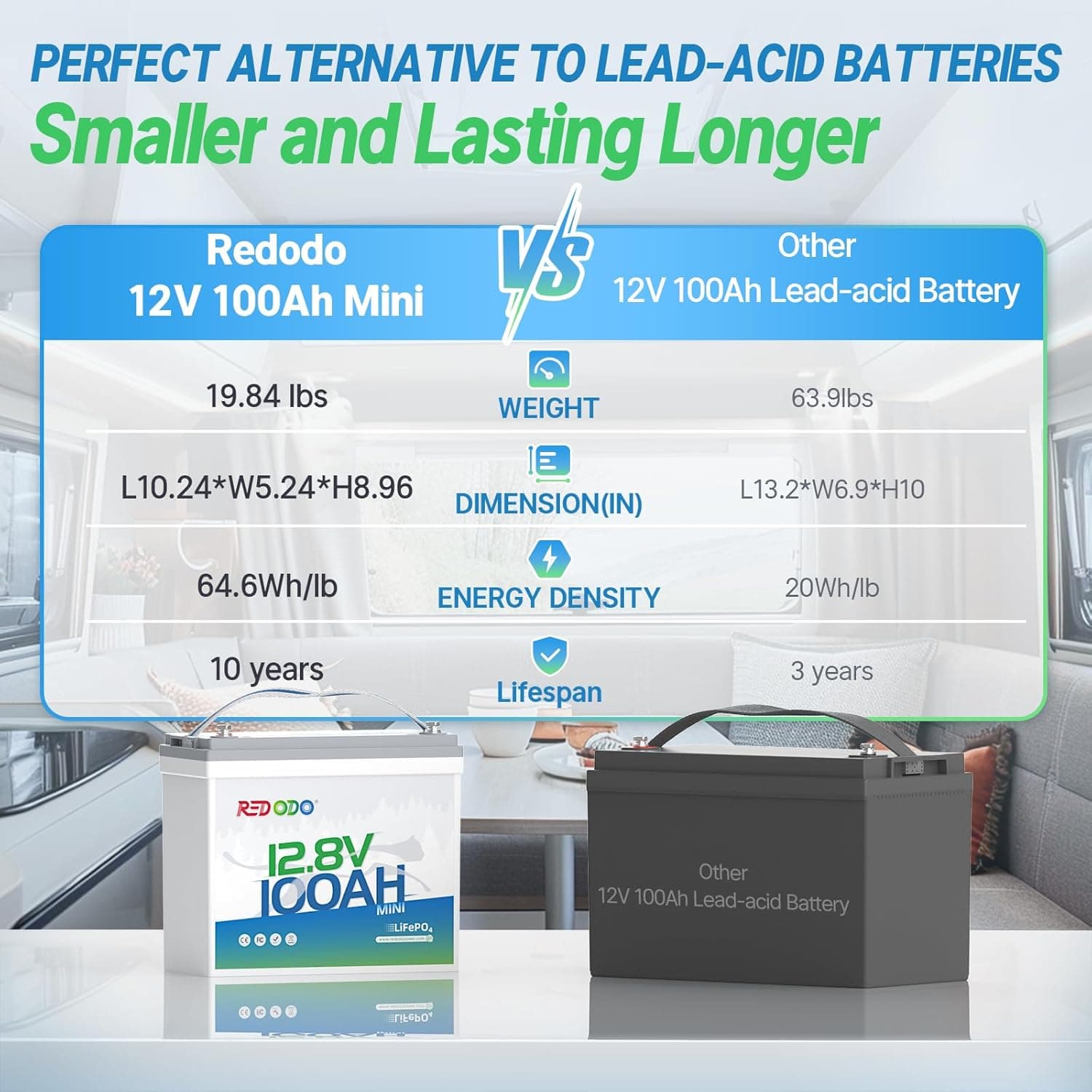

Redodo states that it is 35% smaller and 22% lighter than a group 31 LiFePO4 battery of the same capacity, and 38% smaller and 69% lighter than other 12V 100Ah lead-acid batteries. A built-in 100A BMS protects against overcharging, overdischarging, overcurrent, short circuits and high temperature. The case has carrying handles and is designed to resist abrasion and shock without maintenance.

The battery can be mounted in any orientation, including upside down, and supports configurations up to 4P4S, 8P or 8S. Listed uses include RVs, solar home systems, trolling motors, marine applications and off-grid systems. Grade A cells have a stated lifespan of 10 years, with 4000 cycles at 100% depth of discharge, 6000+ at 80% and up to 15000+ at 60%.

Redodo recommends a 14.6V 20A charger, which takes about 5 hours for a full charge. The battery suits solar home systems and trolling motors with 30 to 70 lbs of thrust; it is not suitable as a starter battery or for golf carts.
