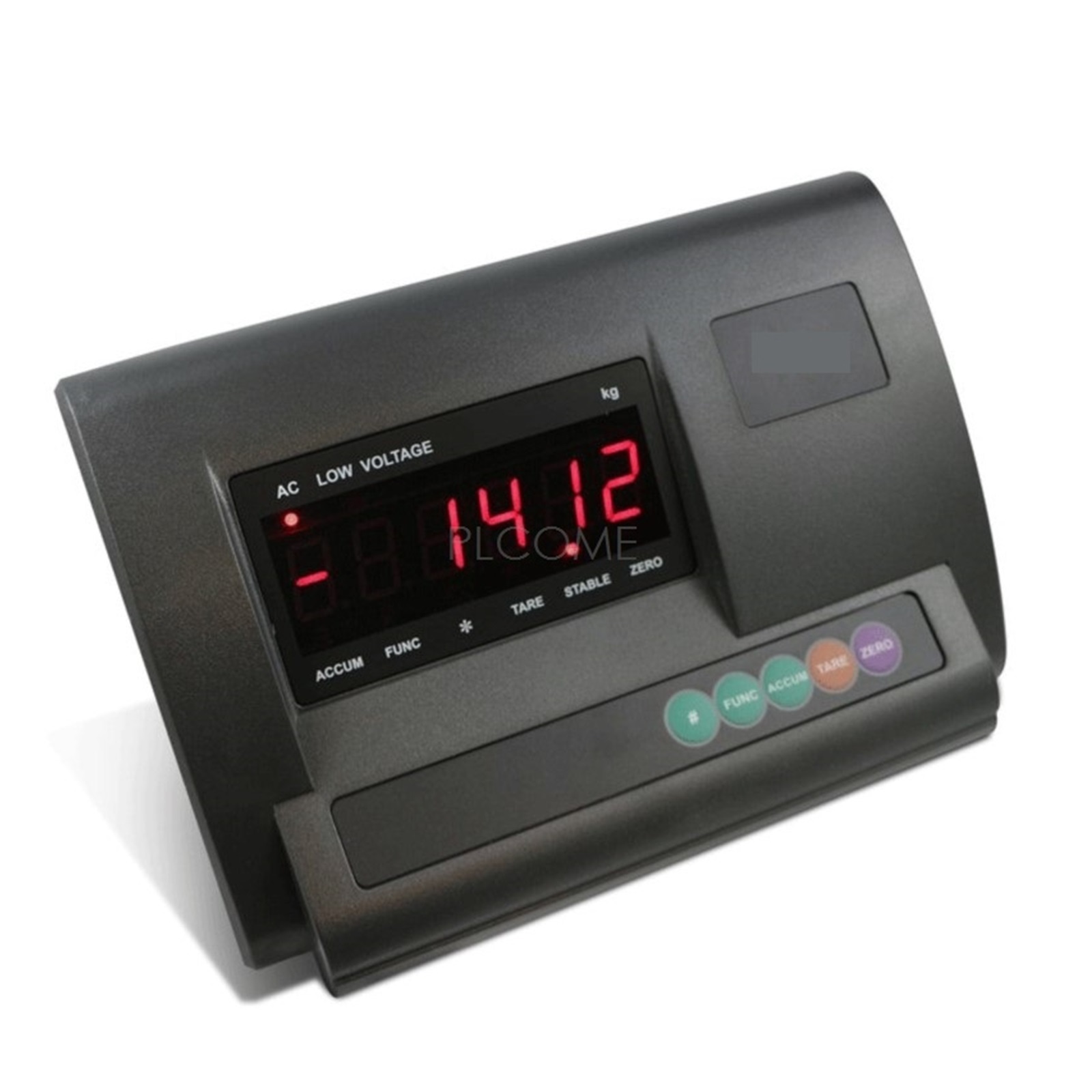

Eugene Color Postal Scales LED Meter sku-11876605297

Eugene Color weighing indicator is listed under Postal Scales. It has an optional communication port with selectable baud rate and communication mode, plus an optional large-screen 20mA current-loop interface. It can automatically calculate an average for reorganized weighing, including animal husbandry scale use, and has 2 custom output functions for low-speed weighing tests.

A/D conversion runs at 20 times per second, with a maximum 20bit conversion number, a 10mV to 15mV input signal range, and input sensitivity above 1 V/e. Sensor bridge supply is C5V at I = 150mA; the unit connects to 4 350 sensors using 4-wire connections. Verification indexing number is 3000, maximum number 30000, and maximum resolution 300000. Optional division values are 1/2/5/10/20/50.

The A12 display has 6 LCD indicators and 6 status indicators; the A12E has 6 LED digits and 6 status indicators. Display range is -2000 to 150000 (e=10). The optional large-screen interface uses a serial current-loop output with transmission under 100 meters.

An optional 5-pin serial port supports baud rates of 1200/2400/4800/9600, automatic continuous or instruction mode, and RS232C transmission under 30 meters. AC power supply. Listed as an electrical DIY supply with related load-cell and weighing-controller products. SKU: sku-11876605297.
