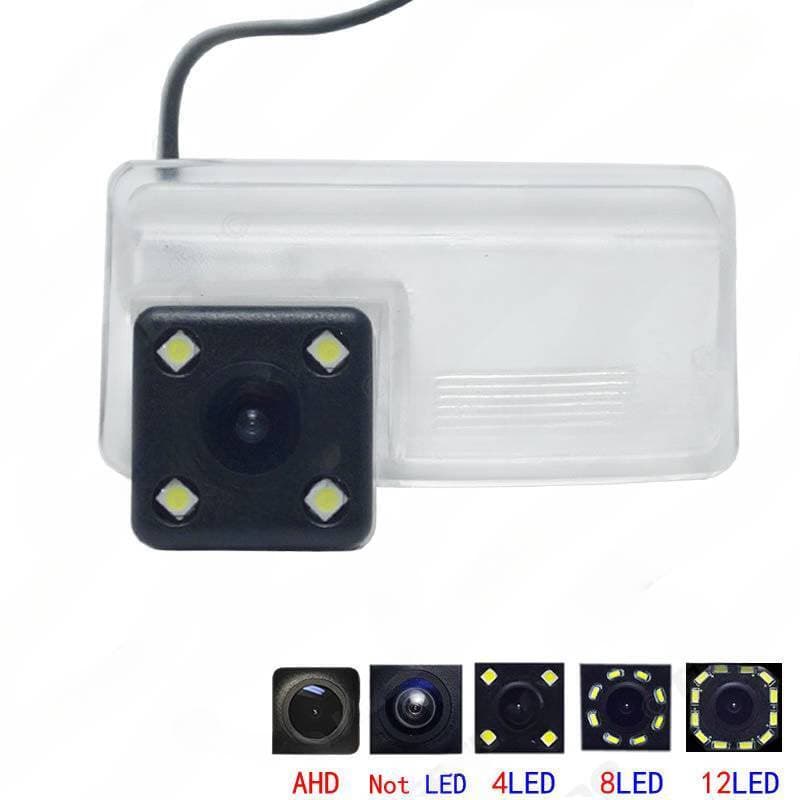

Rear Reverse Camera for Geely Global Hawk GX7/SC7/SX7, Emgrand EC718 & Vision 09/10 (1/3 CCD, 640 * 480)

Compatibility: fits Geely Emgrand EC718 (hatchback), Geely Global Hawk GX7, SC7, SX7 and Geely Vision 09/10 model. Imaging and optics: 1/3 CCD image sensor with 640 * 480 pixels effective resolution. Lens is made of 100% glass. Horizontal resolution: 480TV cable. Field of view: 170 degrees (diagonal), 138 degrees (H), 125 degrees (V). Night and lighting options: Night Vision: Support. Lens with LED light options: AHD/without LED/4LED/8LED/12LED/dynamic track. Installation and image settings: Parking Wire: Support Wire. Reversing Image: Mirror Image. Switch: No. Mirror/Original Switch: No. Video and signal: Television system: NTSC. Video output: CVBS RCA connector (1.0VP-P, 70OHM). Minimum illumination: 0.01 Lux/F = 1.2 (0 Lux when infrared is turned on). Power and environment: Power supply: DC12V. Power consumption: 120mA. Operating temperature: -20 ° C to + 75 ° C, RH 95% MAX. Storage temperature: -40 ° C to + 80 ° C, RH 95% MAX. Waterproof grade: IP67/IP68.
