Rear Backup Camera for Dongfeng Fengshen A30 / AX7 — 170° Wide-Angle CCD, Waterproof

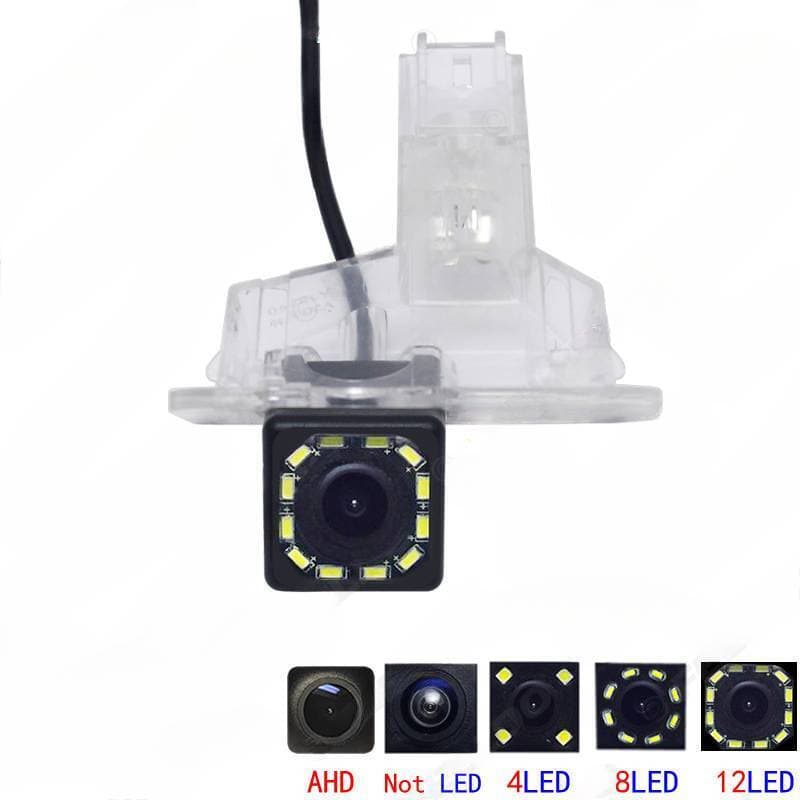

Compatibility: Designed for Dongfeng Fengshen AX7 and Dongfeng Fengshen A30. Overview: High-viewing-angle CCD reversing camera that delivers clear rear images and reliable night performance. Built for outdoor use with an IP67/IP68 rating and multiple LED illumination options to suit different installation needs. Imaging and optics: - Image sensor: CCD - Effective pixel: 640 * 480 pixels - Lens material: 100% glass - Horizontal resolution: 480TV cable - Field viewing angle: 170 degrees (diagonal), 138 degrees (H), 125 degrees (V) Low-light & illumination: - Night Vision: Support - Lens with LED lights: AHD/with 4LED/8LED/12LED - Minimum illumination: 0.01 Lux/F = 1.2 (0 Lux with infrared) Parking and mirror options: - Parking Guide Line: Support - Reversing Image: Mirror Image - Mirror/Original Switch: No - Wire Switch: No Video and electrical: - TV format: NTSC - Video output: CVBS RCA connector (1.0VP-P, 70OHM) - Power supply: DC12V - Power consumption: 120mA Environmental and durability: - Operating temperature: -20C to + 75C, RH 95% MAX - Storage Temperature: -40C to + 80C, RH 95% MAX - Waterproof grade: IP67/IP68 This camera is a direct-fit reversing camera option for the listed Dongfeng Fengshen models, offering wide-angle coverage, selectable LED configurations, and robust weather resistance for dependable rear visibility.
