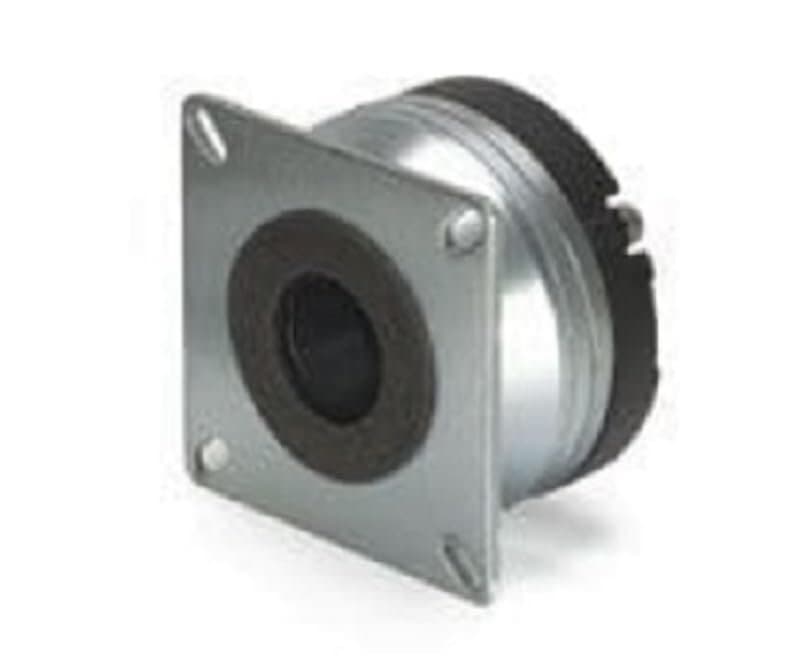

RCF ND1411M NEO Driver 1.5-Inch Diaphragm 25 Watts Rms 50 Watts Peak 8-Ohm 1-Inch Exit Throat Precision Transducers Pro Audio Speaker

"GENERAL Brand : RCF Model Number : 15129019 ND1411M ND1411-M UPC : 728990193518 FEATURES 1.5-inch Diaphragm, 1-inch Exit Throat 50W continuous program power handling Frequency range: 1500Hz - 20kHz Optimized geometry radial phase plug Very compact size for array applications Neodymium magnet assembly High power handling in only 70mm overall diameter " The ND1411-M is a high performance 1.5-inch diaphragm compression driver with a 1-inch exit throat featuring a single pieces, low compression, radial phase plug. The diaphragm and suspension are precision formed from 0.1mm thick Mylar. The ND1411-M is a very compact size, versatile driver for professional applications. "SPECIFICATIONS Exit Throat Diameter : 1.0 inch / 25 mm Related Impedance : 8 ohm Program Power watt : 50 W Power handling capacity : 25 W Sensitivity : 109 dB Frequency range : 1500 - 20000 Hz Suspension Design : Radial Minimum Impedance ohm : 7.00 ohm Voice Coil Diameter : 1.5 inch / 38 mm Voice Coil Former Design : Straight - Nomex Number of layers : 1 Kind of layers : outside Flux Density : 1.7 T Phase Plug Design : 10 radial slots "THIELE - SMALL PARAMETERS Bl factor Bl T x m : 4.40 T x m MOUNTING INFORMATION Overall diameter : 69 mm / 2.72 inches Overall height : 51 mm / 2.01 inches Mounting : 4 x 6 mm threaded holes at 90 SIZE Weight : 0.69 kg / 1.52 lbs "SHIPPING INFORMATION Package Height : 65 mm / 2.56 inches Package Width : 95 mm / 3.74 inches Package Depth : 97 mm / 3.82 inches Package Weight : 0.72 kg / 1.59 lbs
