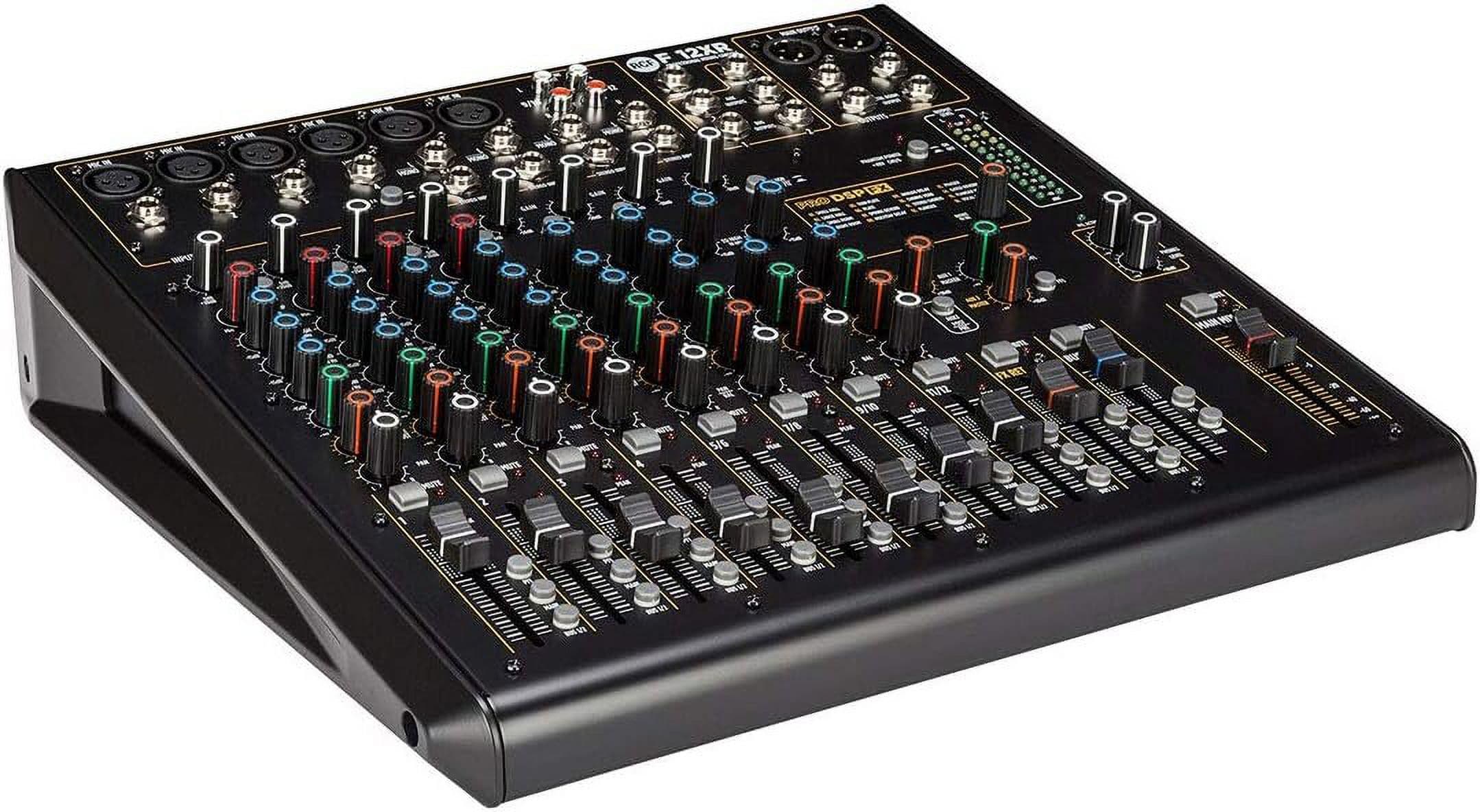

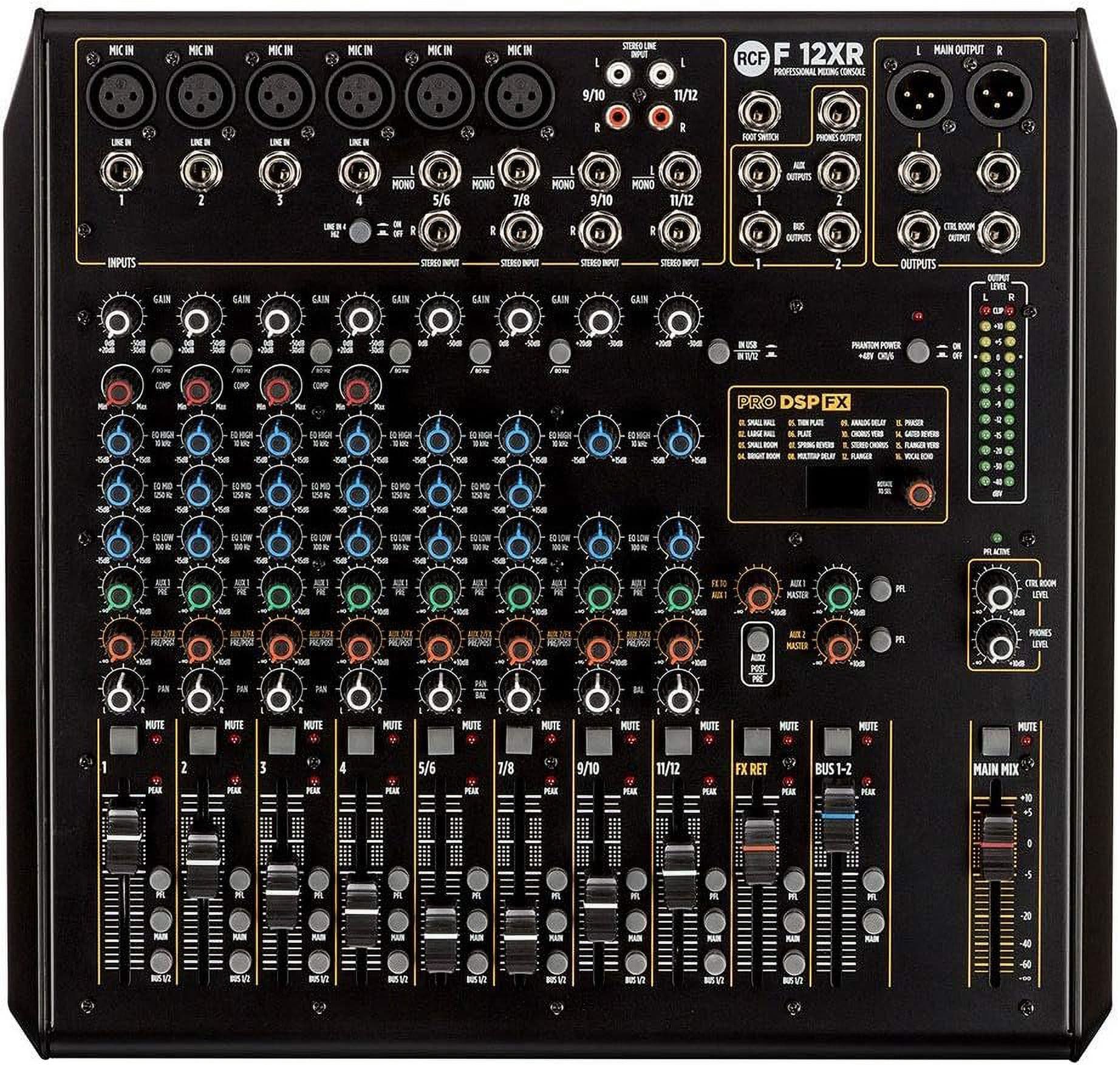

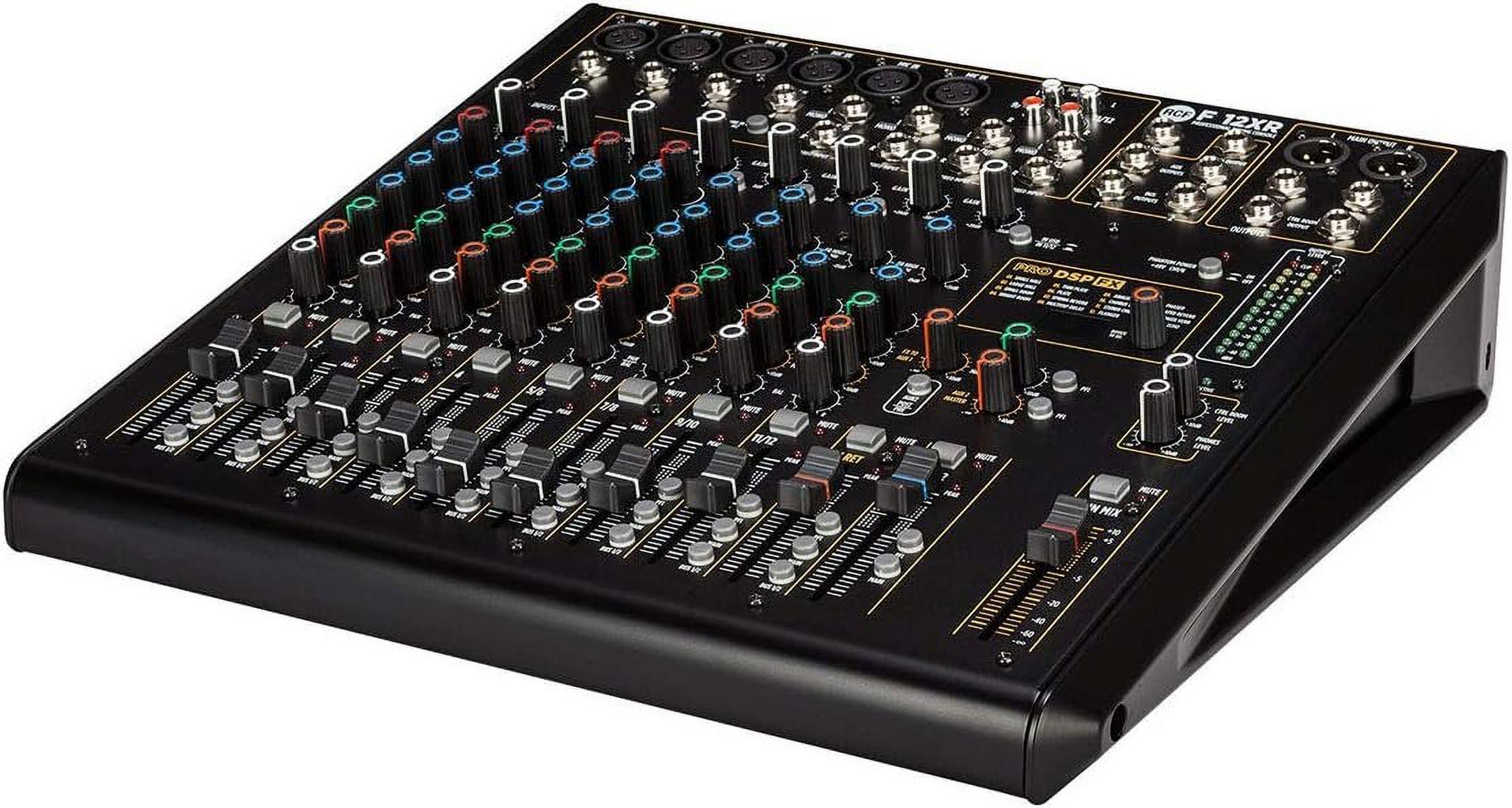

RCF F12-XR 12 Channel Mixer with Multi-FX and Recording

FEATURES Sturdy Metal Chassis PRO DSP FX onboard with 16 presets Stereo Recording and Playback via USB port Balanced main output audio path from input to output 4 single control compressors Mono channels provided with 3-band EQ. 2-band EQ on stereo channels. Robust, compact and attractive design. Designed and Engineered in Italy Internal Universal Power Supply TECHNICAL SPECIFICATIONS Electronic specifications Frequency Response: 20 Hz 20 kHz THD+N, 20dB gain, 0dBu out <0,02% A-Weighted Processing Dynamic Range: > 85dB Outputs specifications Main Out Level: 28 dBu Aux Out Level: 28 dBu Group Out Level: 28 dBu Phones Out impedance ohm: 150 ohm PHYSICAL SPECIFICATIONS Cabinet/Case Material: Metal Color: Black SIZE :: Height: 97 mm / 3.82 inches Width: 373 mm / 14.69 inches Depth: 355 mm / 13.98 inches Weight: 4.5 kg / 9.92 lbs SHIPPING INFORMATION :: Package Height: 140 mm / 5.51 inches Package Width: 400 mm / 15.75 inches Package Depth: 425 mm / 16.73 inches Package Weight: 5.5 kg / 12.13 lbs RCFs next generation F Series mixers builds on the rich analog legacy found in the professional E Series, featuring high quality sound in five formats from 6 to 24 channels. A powerful tool for the musician and the sound enthusiast, entirely conceived and designed by the RCF R&D team. Housed in a sturdy metal chassis, each mixer features a full balanced audio path from input to output and the unique PRO DSP FX: 16 professional effects such as Reverbs Halls, Rooms, Plates, Spring, Delays Mono, Stereo and Multitap, Chorus, Flangers and Echoes. The models F- 10XR, F-12XR, F-16XR and F-24XR, include an USB audio interface, for stereo recording on computer-based DAW and 2-channel playback.
