Raymarine RAYE7053205102 Boating Combo sku-926762285

Name: Raymarine RAYE7053205102 Boating Combo sku-926762285
Brand: Raymarine
SKU: prod_6265c835cc5b2751c505522b
Price: 841.15 USD
Availability: InStock

No rating yet(0 ratings)

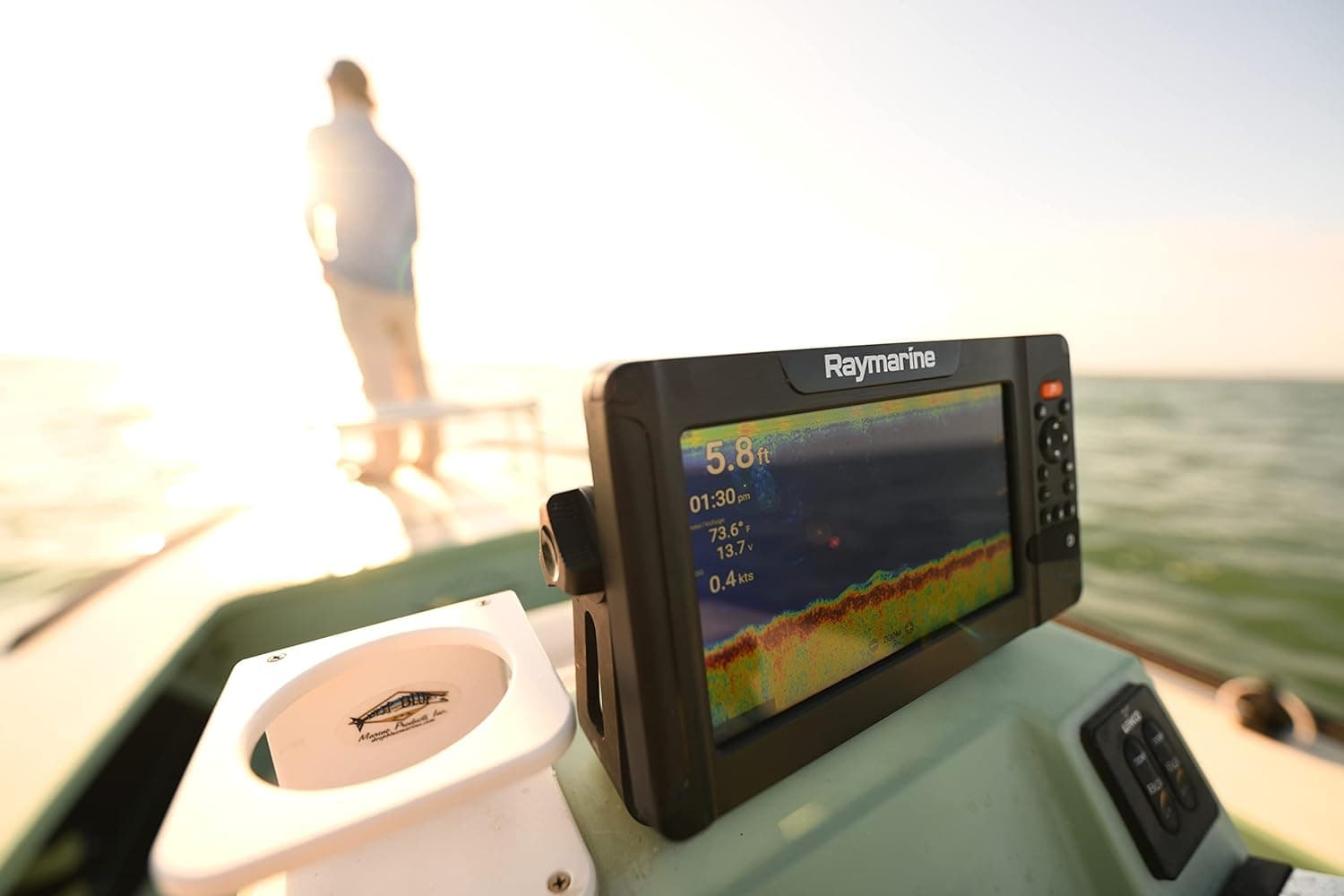

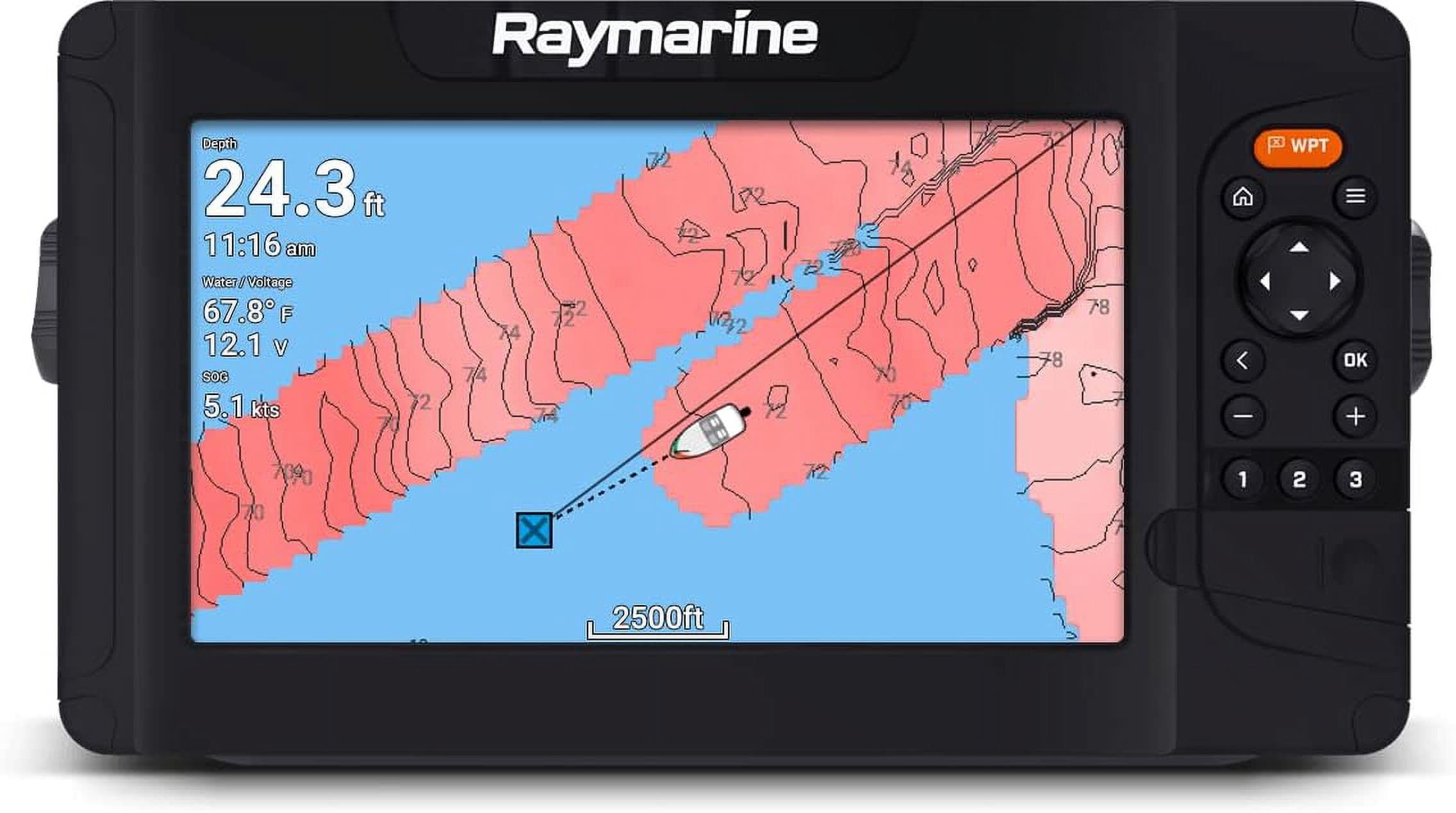

Raymarine RAYE7053205102 is a Multicolor Boating Element 7 HV sonar and GPS combo, sku-926762285, UPC 723193837733. The source identifies it as model E70532-05-102 with an HV-100 transducer and a LightHouse chart with Fishing Hot Spots. Its sunlight-viewable 7.0-inch bonded LCD has 1280 x 800 resolution and 1,500-nit brightness; viewing angles are 50° top, 60° bottom and 70° on each side. HyperVision CHIRP sonar is described as offering 3x conventional side- and down-imaging clarity. Its 1.2-megahertz mode reaches 100 feet; 350kHz DownVision and SideVision reach 600 feet. Built-in RealVision 3D helps locate contour changes. A quad-core processor supports chart redraw and 3D imaging. Keypad controls include an oversized waypoint key and user-programmable keys. RealBathy personal mapping and Navionics SonarCharts Live are supported. The unit measures 240 x 135 x 62mm (9.5 x 5.3 x 2.4 inches), weighs 3.0 lb and has IPx6/IPx7 water-ingress ratings. Operating temperature is -25°C to +55°C (-13°F to 131°F); storage temperature is -30°C to +70°C (-22°F to 158°F). It runs on 12V DC (8V to 16V) and draws up to 15 watts. Its built-in GPS/GLONASS receiver operates at 10Hz. Connections include a 15-pin HyperVision sonar connector and 1 NMEA2000 port; SeaTalkng requires a 400mm A06045 adapter. Wi-Fi supports 802.11 b/g/n, and Bluetooth 4.0 supports Low Energy and Power Class 1.5. Ethernet, NMEA0183 and USB are listed as unavailable. Chart options include Raymarine LightHouse NC2, Navionics, C-MAP Essentials and 4D MAX+; tides and currents require LightHouse LNC2, Navionics or C-MAP. Capacity is 10,000 waypoints in 200 groups, 150 routes with a 250-waypoint maximum, and 16 tracks with up to 10,000 track points. Internal storage is 8GB. The rear microSD slot accepts microSDHC up to 32GB or microSDXC up to 2TB in NTFS or FAT32; exFAT cards require reformatting. The box lists mounting brackets and hardware, a flush-mount kit, sun cover, documentation, a Power/NMEA2000 1.5m cable, a LightHouse NC3 United States chart, and an HV-100 transducer with a 6m cable and transom-mount hardware.
