RANE RANEPERFORMERXUS-DS DJ Controller sku-17485115073

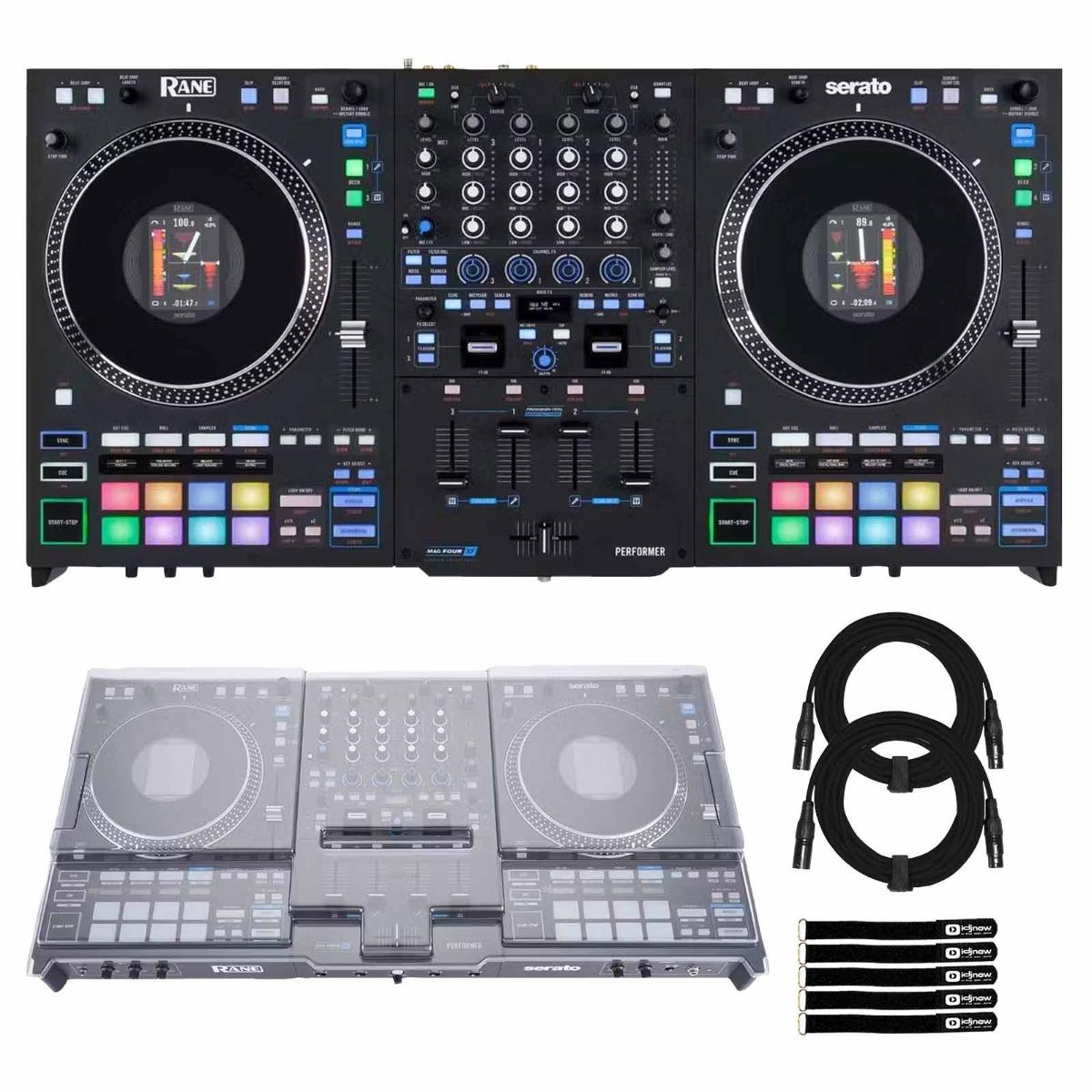

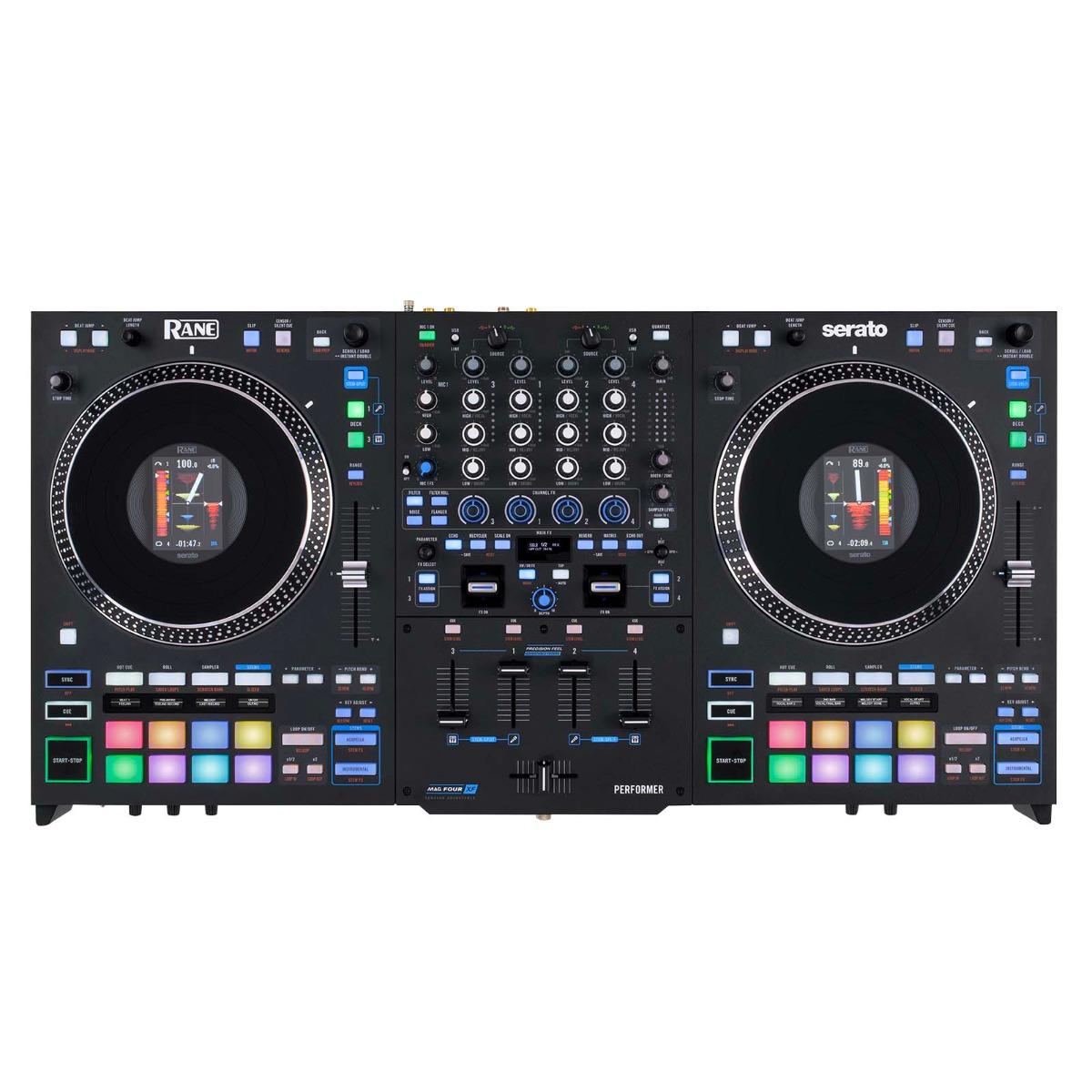

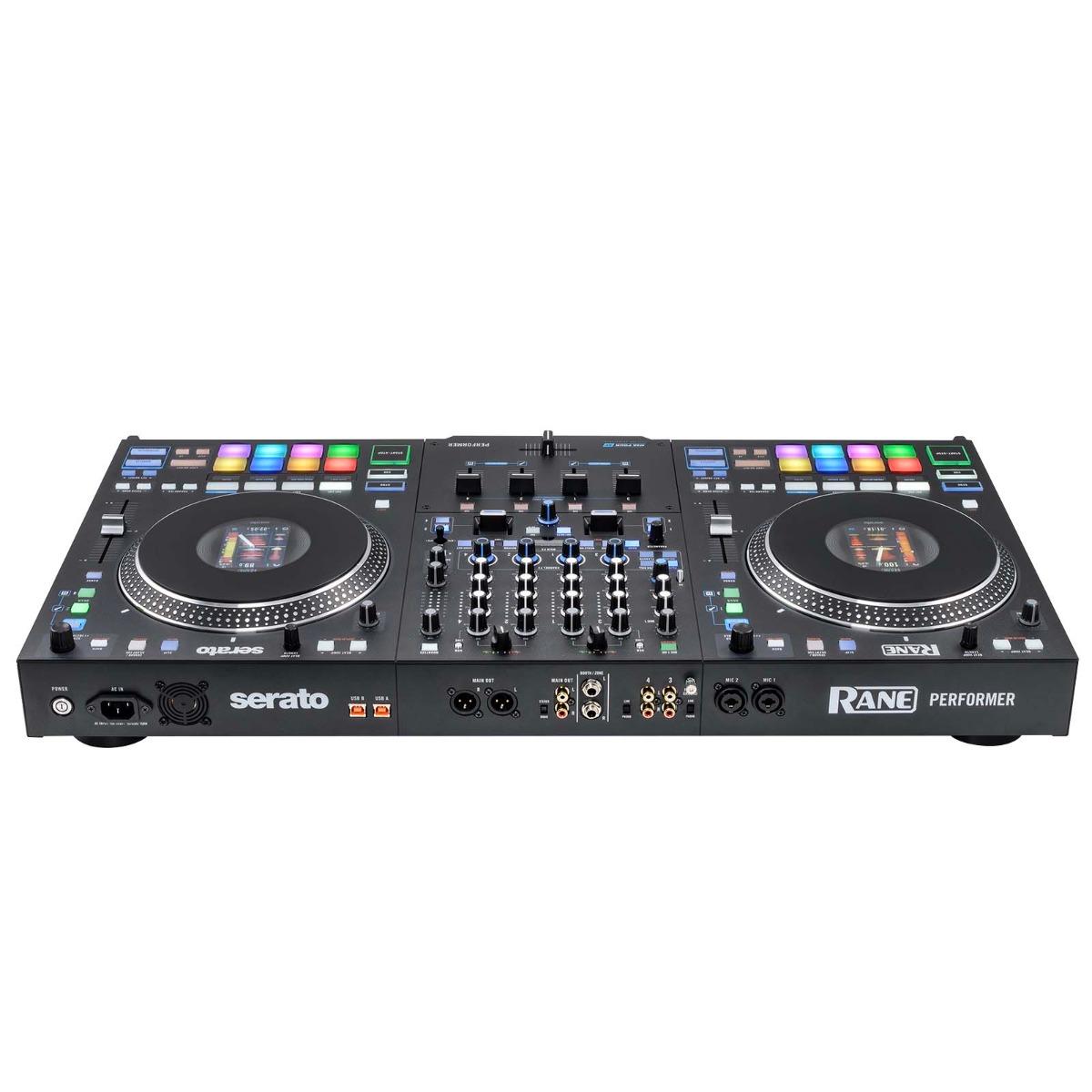

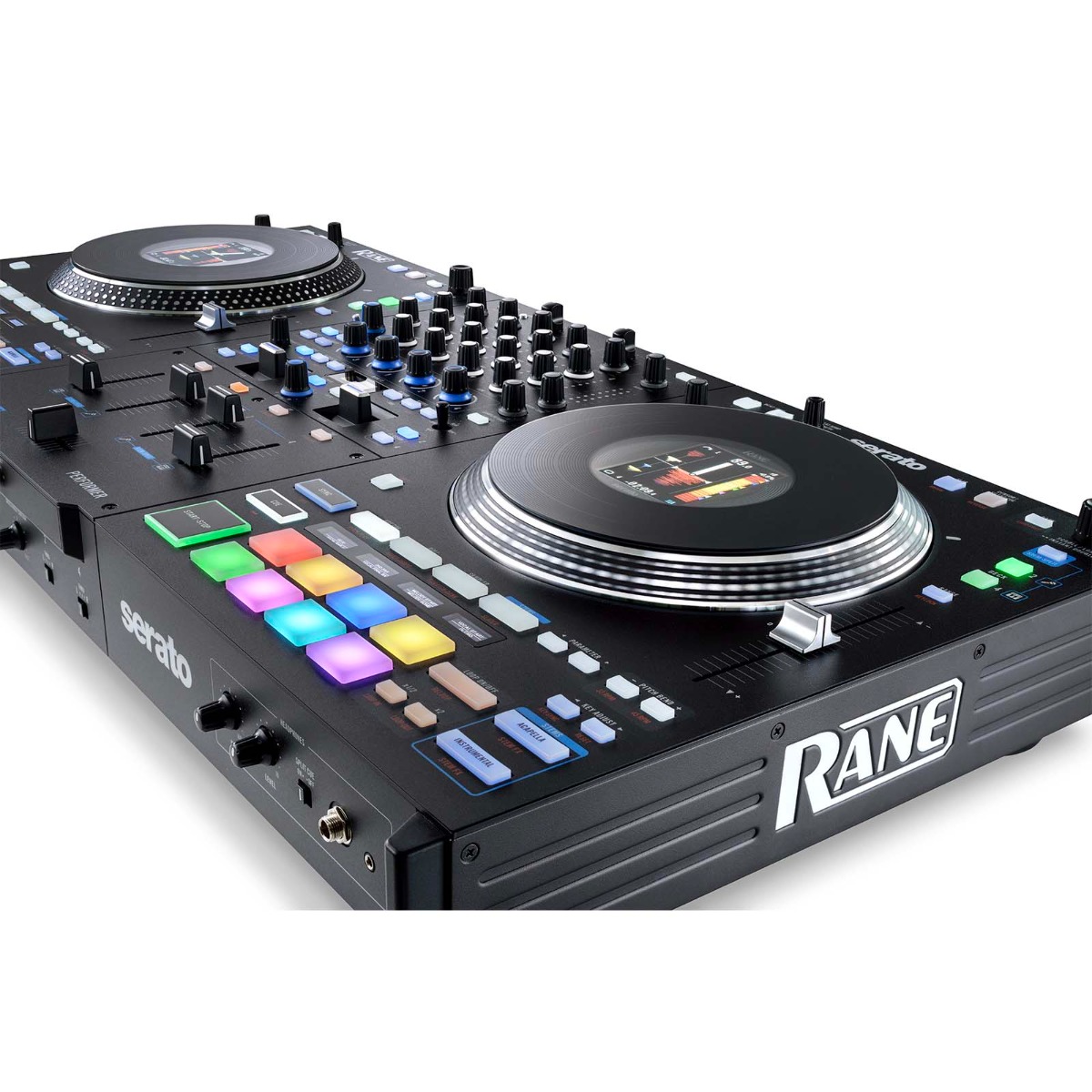

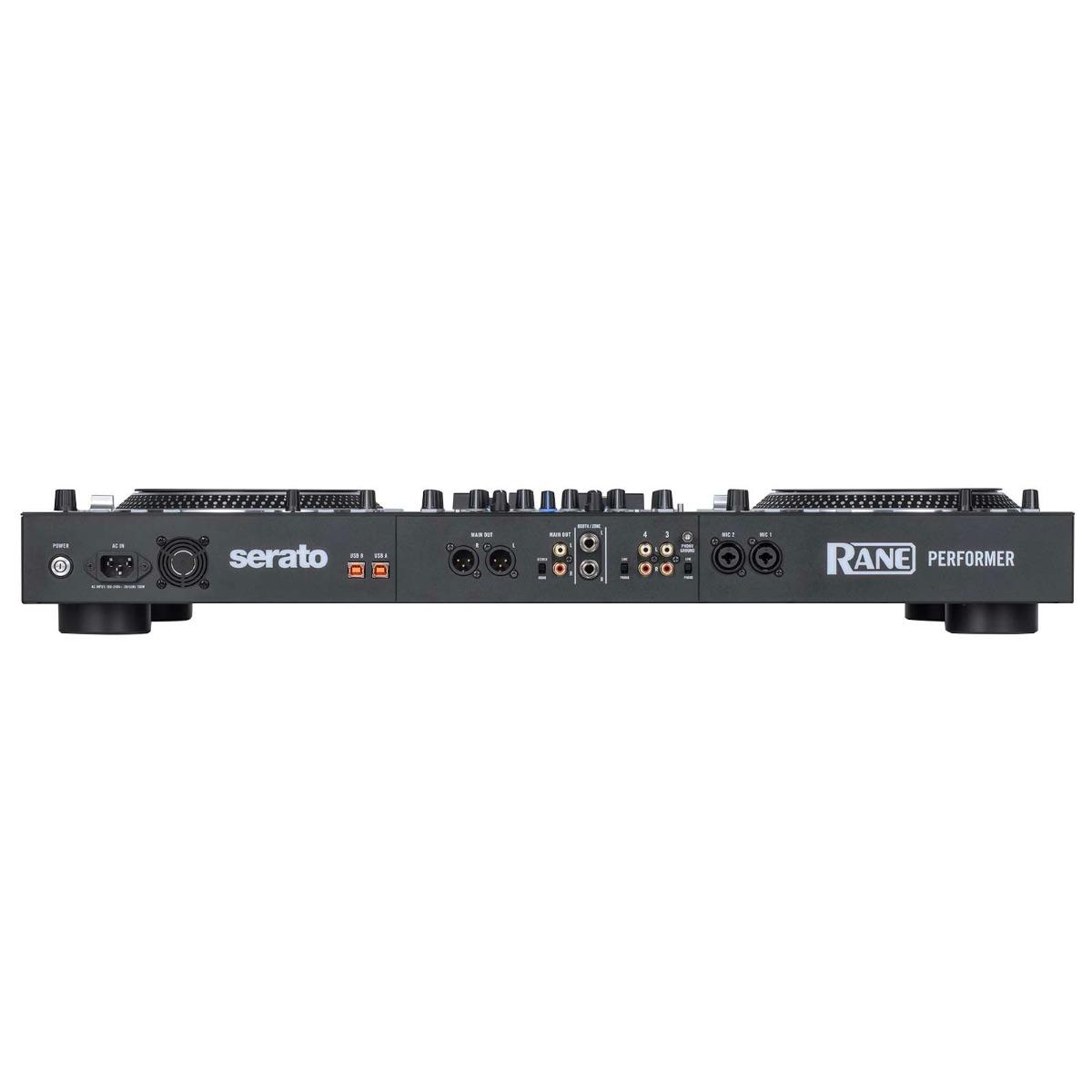

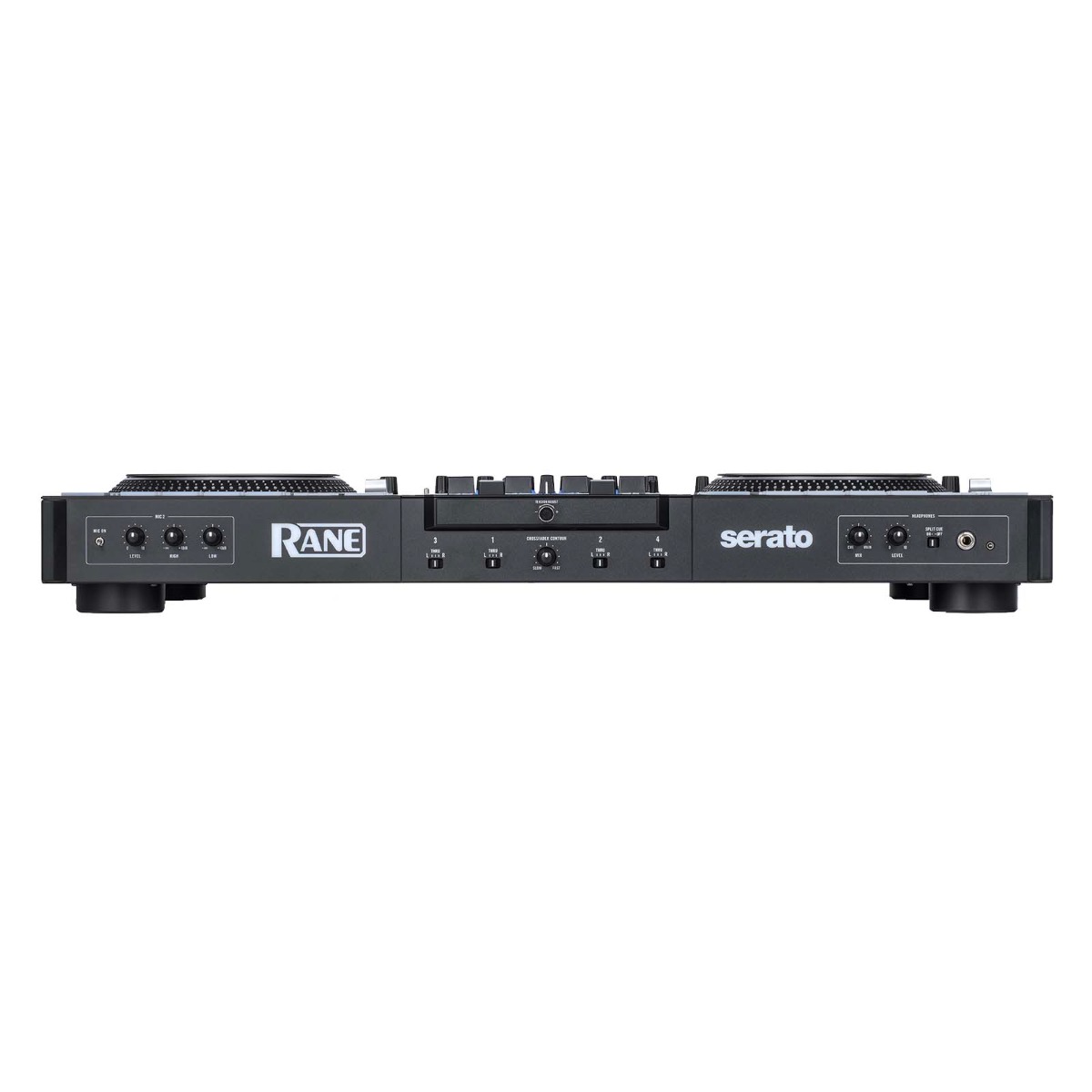

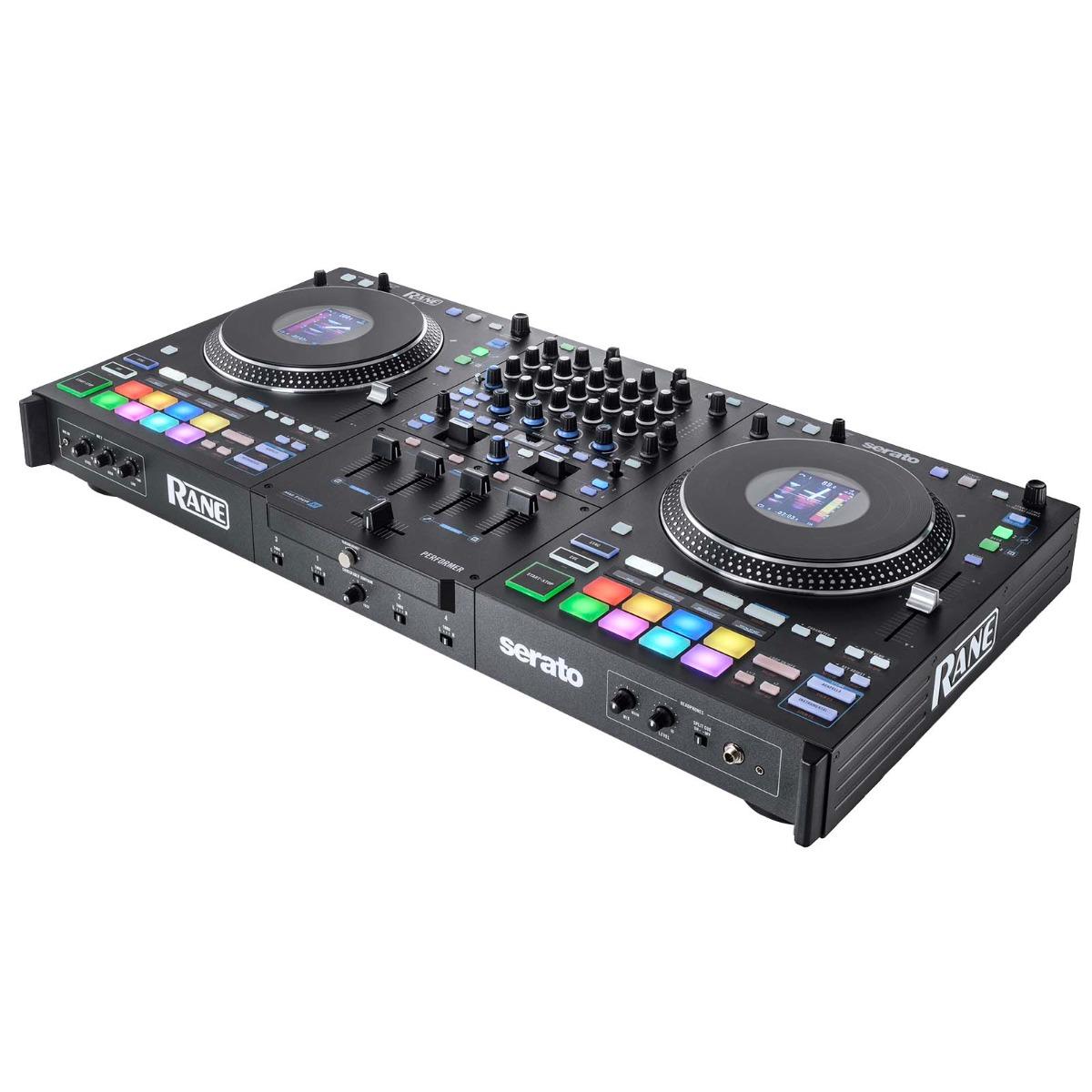

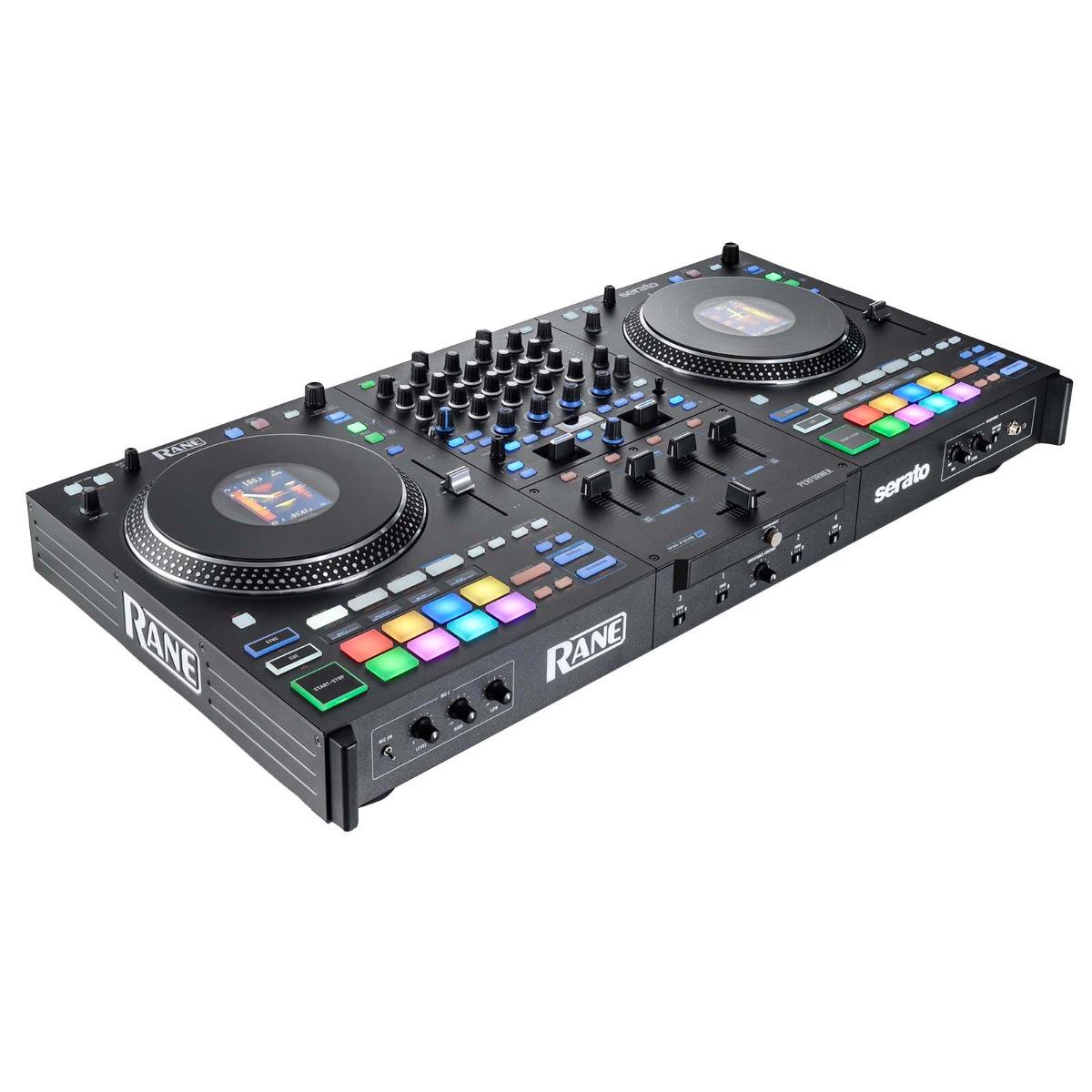

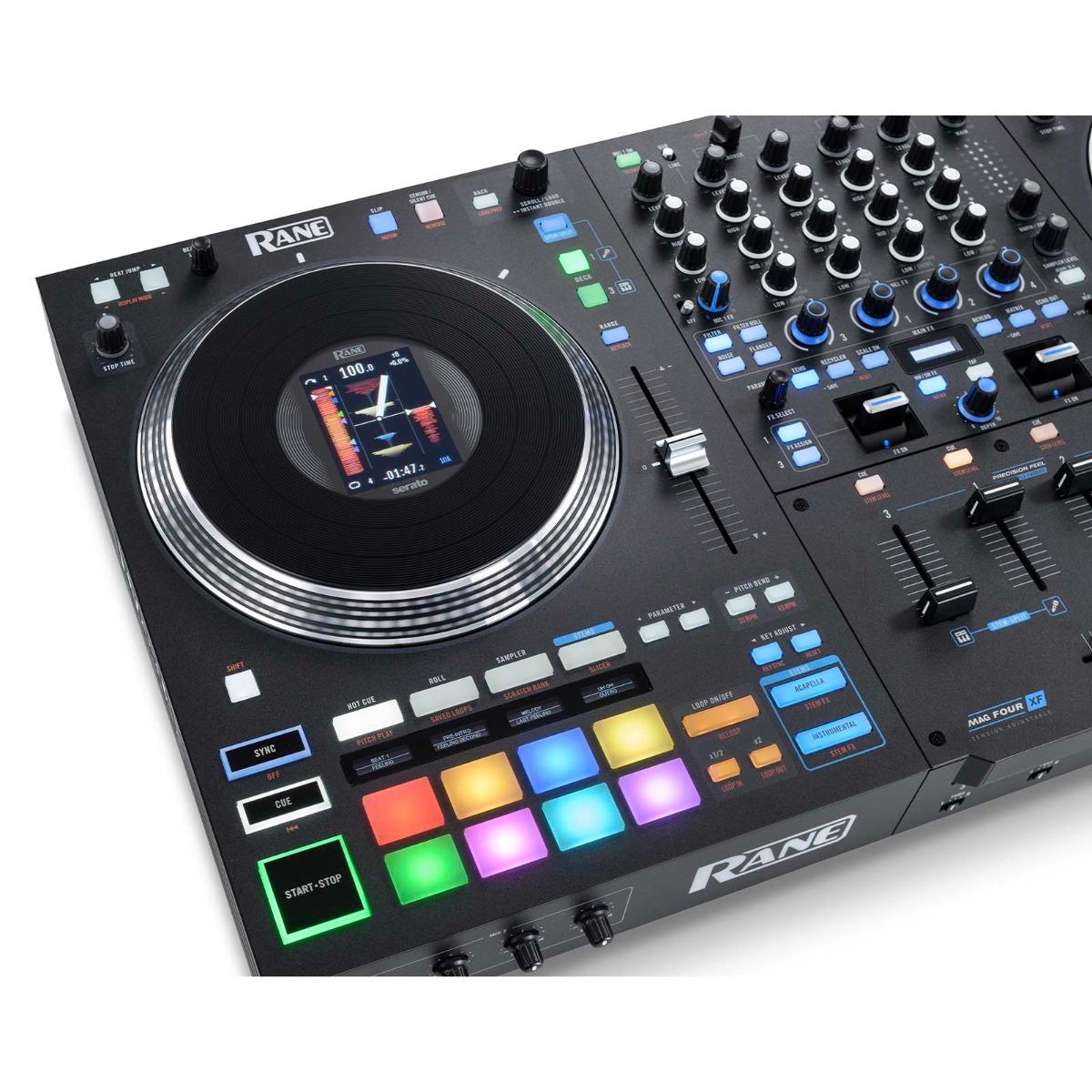

The RANE PERFORMER, model RANEPERFORMERXUS-DS, is a motorized DJ controller package listed under DJ Controllers as sku-17485115073, UPC 789049905469. It has high-torque aluminum platters with magnetic acrylic vinyl-feel tops and a 4-channel mixer with 4 dual-rail, magnetic tension-adjustable Precision Feel Faders. Stems controls include STEM-SPLIT, STEM LEVEL, STEM Pad Mode and instant Acapella/Instrumental buttons. Its 3.5" wheel displays show waveforms and library views and have Day Mode. The MAG FOUR crossfader has an external tension knob and contour control. The internal FX engine provides 22 MAIN FX and 4 knob-controlled CHANNEL FX, with access to Serato DJ Software FX. There are 16 Performance Pads with dedicated OLED Pad Mode displays, deck selection for up to 4 software decks, 2 Line/Phono inputs and dual-USB connections for DJ transitions. Main outputs are XLR and RCA; Booth/Zone output is 1/4". The controller also has (2) stereo RCA line/phono inputs and (2) XLR/1/4" combination microphone inputs. Digital audio conversion uses Cirrus Logic 24-bit PCM at 48 kHz. Processing is 32-bit floating point, double precision. A-weighted dynamic range at unity gain is 113 dB for both ADC and DAC. CD input to analog output is 110 dB; CD input to USB output and USB input to analog output are each 113 dB. Connections include (2) XLR Main outputs, (2) 1/4" Booth outputs, (1) RCA stereo Main output pair, (2) XLR/1/4" (6.35 mm) TRS microphone inputs, (2) RCA stereo input pairs for Deck 3-4, (1) 1/4" (6.35 mm) TRS headphone output, (1) 1/8" (3.5 mm) TRS headphone output, (2) USB Type-B ports and (1) IEC power cable input. XLR Main outputs have gain trim from Off to 0 dB, an 8 Vrms maximum output and 0.004% THD+N (20 kHz BW @ 1 kHz). RCA Main outputs have a 4 Vrms maximum output and 0.004% THD+N (20 kHz BW @ 1 kHz). Booth outputs have gain trim from Off to 0 dB, an 8 Vrms maximum output and 0.004% THD+N (20 kHz BW @ 1 kHz). Frequency response for all three is flat from 20-20kHz. Headphone outputs have a 4 Vrms maximum voltage with no load, 50 mW output power at 50 ohms and 108 dB A-weighted dynamic range. Microphone 1/2 inputs have 25 dB analog gain, 110 mV maximum input, gain trim from Off to +26 dB with unity at center, and 2-band tone control. Switchable Line/Phono inputs 3/4 have a 4 Vrms maximum line input, gain trim from Off to +12 dB, 3-band tone control from full cut to +10 dB, and 0.004% THD+N (20 kHz BW @ 1 kHz). Phono specifications are an RIAA curve of +/-0.25 dB, gain of 31.5 dB at 1 kHz, maximum input of 106 mV at 1 kHz and 102 dB A-weighted dynamic range. Displays comprise (2) 3.5" color LCDs and (9) 128 x 32 monochrome OLEDs. The (16) multicolor backlit on/off pads provide 8 per deck and 9 modes each. Faders comprise (1) MAG FOUR crossfader and (4) PRECISION FEEL channel faders. The IEC power connection accepts 100–240 V at 50/60 Hz and consumes 20 W. Weight is 28.20 lbs (12.79 kg). Dimensions are 30.72" W x 15.84" D x 4.08" H, or 78.02 W x 40.23 D x 10.36 H cm. The package contains (1) controller, (1) power cord, (1) USB cable, (1) product poster, (1) slip ring assortment, (1) set of stickers and platter markers, (1) crossfader lubricant, (1) microfiber dust cloth, (1) Decksaver DS-PC-PERFORMER cover for the Rane Performer & Four DJ Controller, (2) Clutch 20' Sure-Fit XLR Female to XLR Male microphone/speaker cables and (5) 8" reusable hook-and-loop cable ties.
