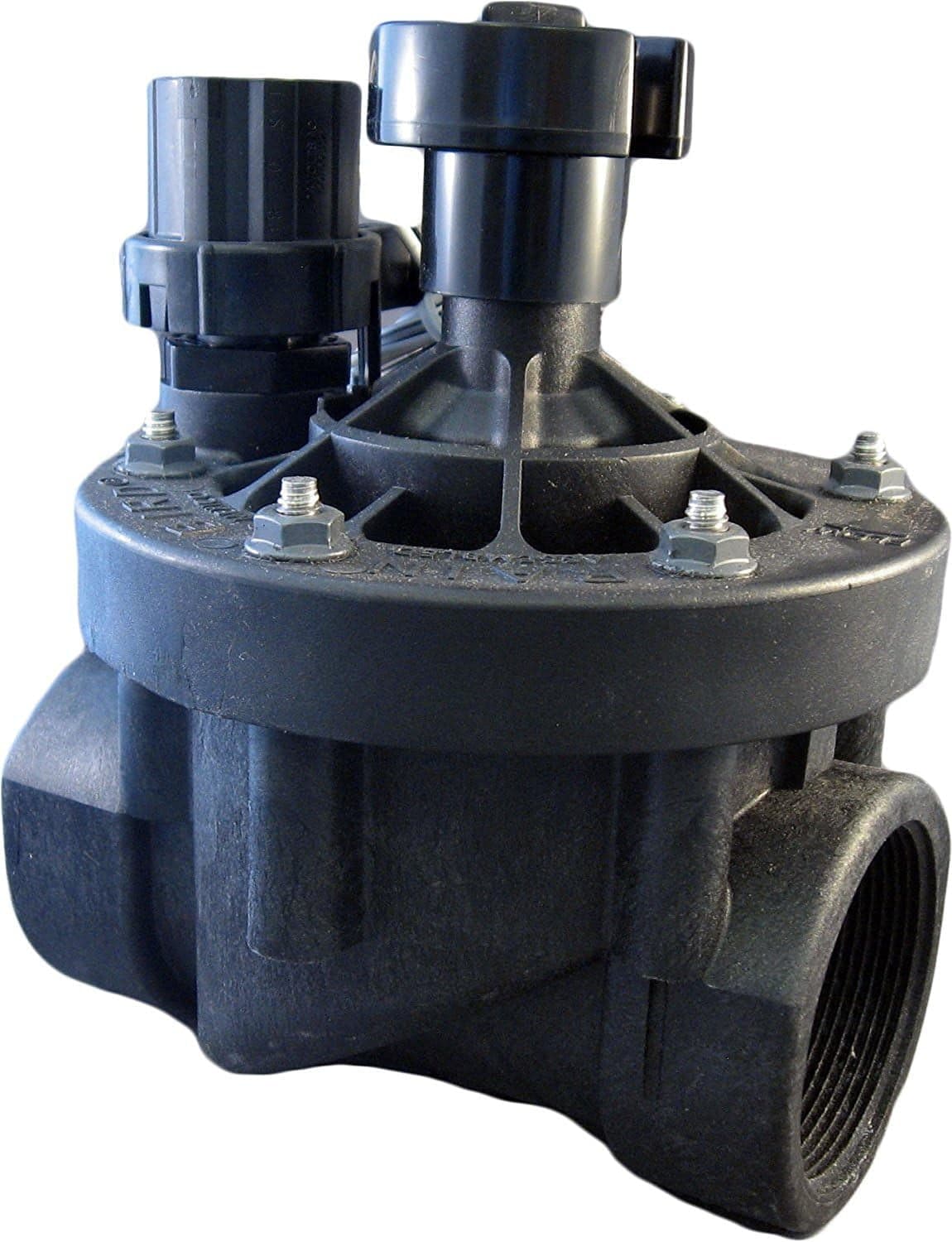

Rain Bird 200-PEB Industrial 2" Female NPT Irrigation Valve with Flow Control — 24VAC

Overview: Rain Bird model 200-PEB is a globe-style irrigation valve built for normally closed, forward-flow operation. It includes integrated flow control and connects via a 2" female NPT port. Construction: The valve body is molded from glass-filled nylon and secured with stainless steel studs. The sealing diaphragm is made of fabric-reinforced EPDM rubber for durability. Flow & Pressure: Flow capacity without a PRS-D ranges from 0.25 to 200 GPM. When equipped with a PRS-D the usable flow range is 5 to 200 GPM. Rated operating pressure is 20 – 200 psi. Electrical & Temperature: Designed for 24VAC, 50/60Hz systems. Solenoid electrical draw is 0.41A (9.9VA) inrush and 0.14A (3.43VA) holding. Temperature tolerance is up to 150°F (66°C). Dimensions: Height — 8" (203mm). Footprint/face dimensions — 6" x 6" (152mm x 152mm).
