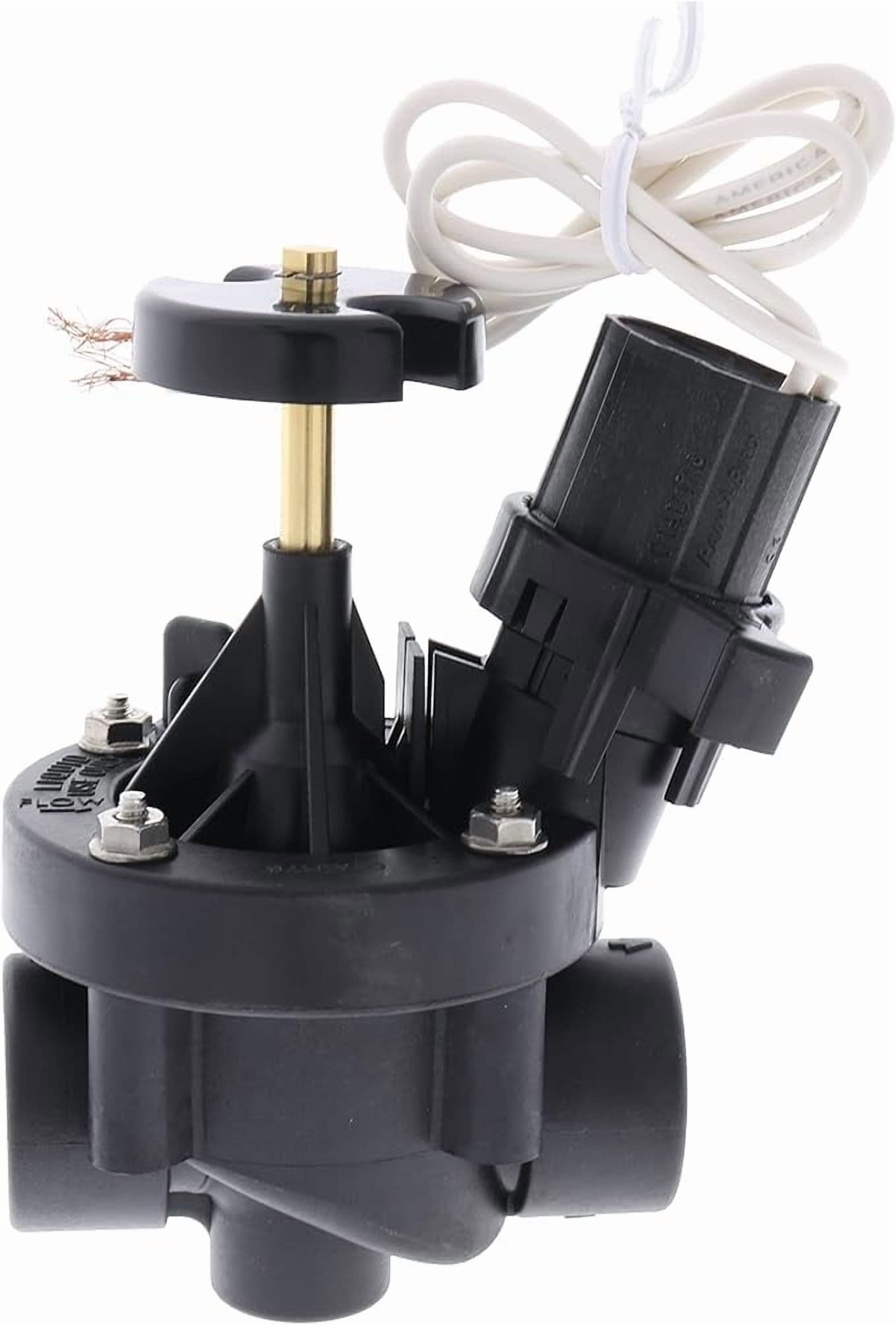

Rain Bird 100-PEB — 1" Female NPT Globe Irrigation Valve with Flow Control

Overview: The Rain Bird 100-PEB is a globe-style irrigation valve designed to be normally closed and installed for forward flow. It accepts a 1" female NPT connection and offers optional manual flow control for precise adjustments. Construction: The valve body is molded from glass-filled nylon and secured with stainless steel hardware. The sealing element is a fabric-reinforced EPDM rubber diaphragm engineered for durability and flexibility. Flow and Pressure Performance: Flow without PRS-D ranges from 0.25 to 100 GPM; when fitted with the PRS-D device the usable flow range becomes 5 to 100 GPM. The unit operates across a pressure range of 20 – 200 psi and can tolerate temperatures up to 150°F (66°C). Electrical and Control: Built for 24VAC operation at 50/60Hz. Solenoid specifications: Inrush 0.41A (9.9VA) and Holding 0.14A (3.43VA). Manual flow control is available as an optional feature for fine-tuning output. Dimensions: Height 6½" (165mm); footprint 4" x 4" (102mm x 102mm).
