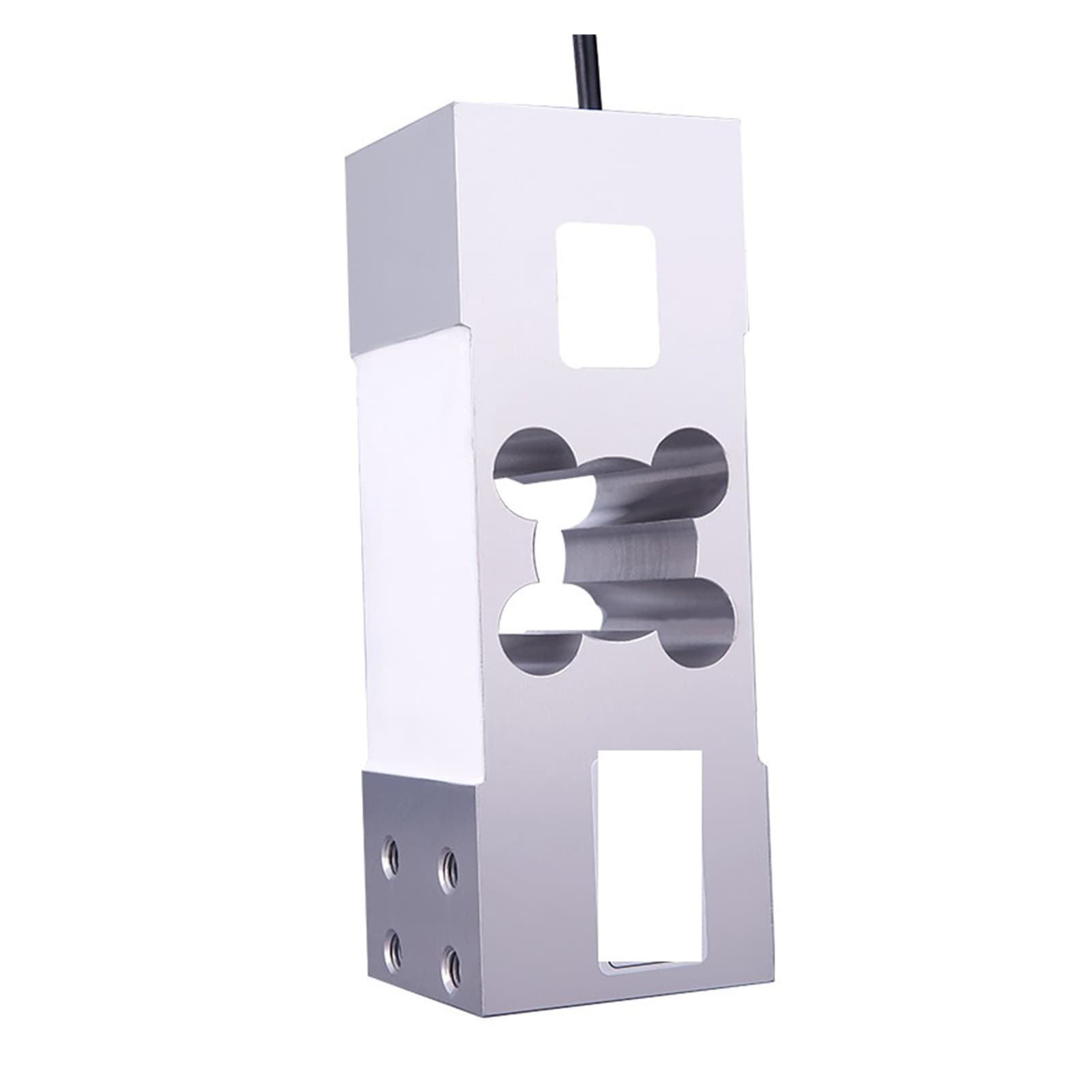

PSD-X5 Load Cell Weighing Beam 100/200/500/750Kg For Electronic Belt Conveyor Scale

Product capacity 100-750kg Zero balance ±1% F.S output value 2.0 ± 0.004mv/v Input resistance 400±10 Accuracy Class C2 output resistance 350 ± 3 Non-linearity 0.02% F.S Safe overload 150% F.S Hysteresis 0.03% F.S Highest overload 300% F.S Crawls in 30 minutes 0.02% F.S Excitation voltage 10VAC/DC Temperature effect range 0.015%FS/10 Maximum excitation voltage 15VAC/DC Zero temperature effect 0.02%FS/10 Insulation resistance 500M temperature compensation -10 ~ +40 Environmental Protection IP67 operating temperature -30 ~ +65 Materials Aluminum Alloy
