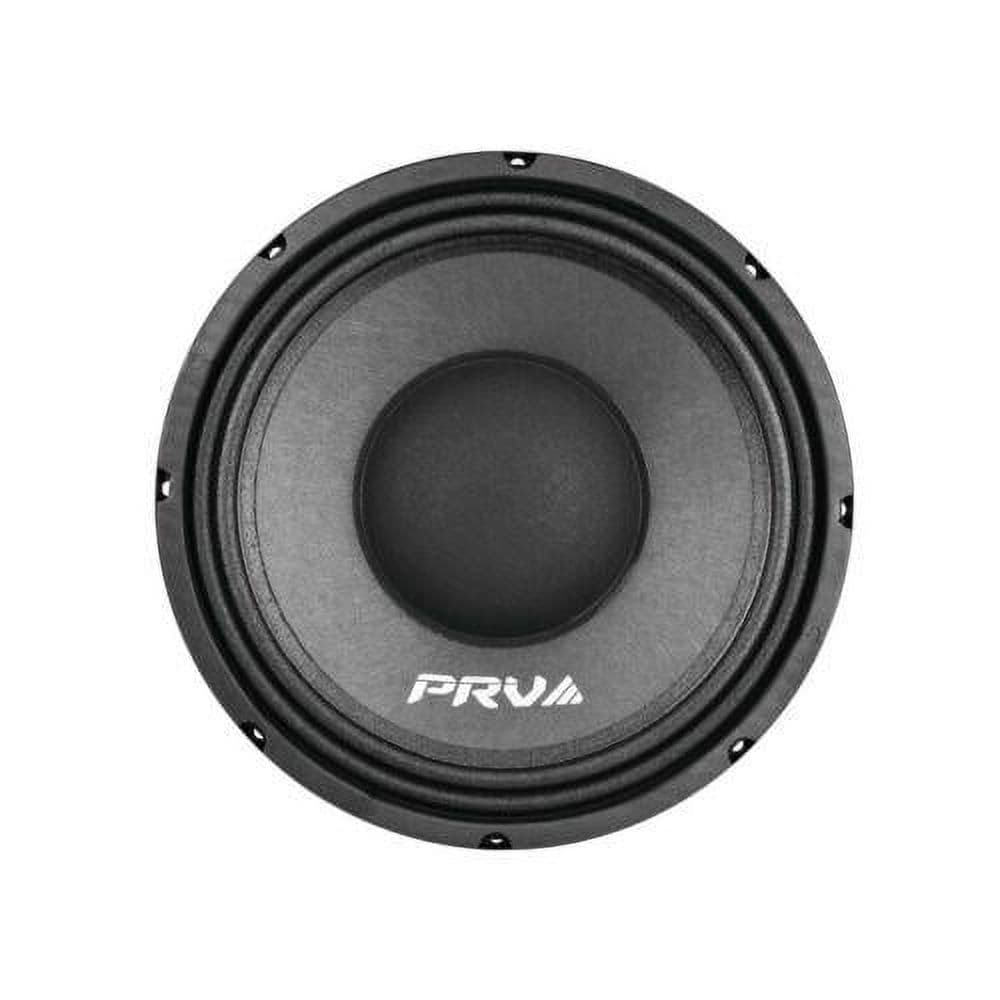

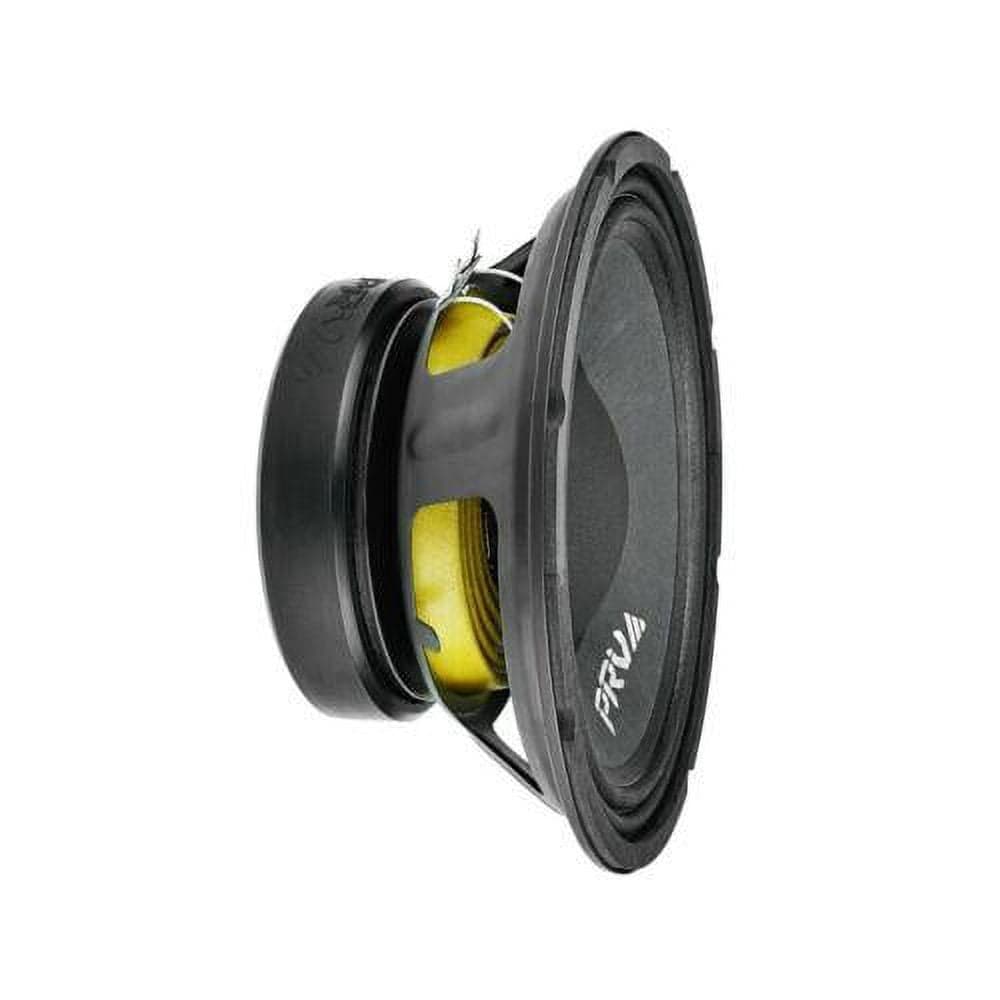

PRV Audio 10W650A-4 10" 4-Ohm 650W ALTO Series Mid/Woofer - 97 dB Sensitivity

Overview: The PRV Audio 10W650A-4 is a 10" ALTO Series midbass/woofer engineered for high output and natural tone. It delivers 650 Watts program power with a 4 Ohm nominal impedance and 97 dB sensitivity (2.83V at 1m), making it suitable for demanding car pro audio, PA, and instrument speaker applications. Key features: A special composite cone uses non-pressed paper (visible on the cone’s rear) to reduce breakup and preserve a smooth tonal character. The lightweight, woven-cloth dustcap lowers moving mass for higher sensitivity and assists voice coil cooling. The driver uses a 2.5" CCAW voice coil wound on a Kapton former and a stamped steel frame for reliable performance. Performance and use: Rated AES (RMS) power handling is 325 Watts with 650 Watts Program. Frequency response at -10 dB spans 75 – 5,500 Hz. The driver is capable of very high acoustic output (97 dB sensitivity) and works well in vented or sealed enclosures, as a two-way woofer, midrange in three-way systems, or as a bass/guitar speaker. Recommended high-pass crossover for full power handling: 150 Hz (12 dB/octave). General specifications: Nominal Diameter 10" (254 mm) Nominal impedance 4 Ohms Rated AES Power Handling (RMS) 325 Watts Program Power 650 Watts Sensitivity 2.83V at 1m 97 dB Recommended Hi Pass Crossover For Full Power Handling 150 Hz (12db Per Octave) Crossover Frequency Response at -10dB 75 – 5,500 Hz Voice Coil Diameter 2.5" (65.5 mm) Voice Coil Wire CCAW Voice Coil Winding Depth 13.0 mm Former Material Kapton Magnetic Gap Depth 8.0 mm Frame Material Stamped Steel Thiele-Small parameters: Equivalent Volume Vas 34.04 l Excursion (mathematical) Xmax 4.50 mm Free Air Resonance Fs 72.31 Hz Mechanical Factor Qms 16.34 Electrical Factor Qes 0.47 Total Factor Qts 0.46 Cone Area Sd 415 cm² Mechanical Mass Mms 34.04 g Bl Factor Bl 14.09 Tm Dc Resistance Re 6.1 Ohms Inductance Le 0.79 mH at 1 kHz Mechanical Mass Without Air Mmd 29.24 g Mechanical Compliance Cms 0.142 mm/N Physical / mounting: Overall Diameter 10.10” (257 mm) Front Mount Baffle Cutout 9.25” (235 mm) Mounting Depth 4.3” (110 mm) Overall Depth 4.72” (120 mm) Net Weight 10.49 Lbs (4.75 kg) Shipping Weight 11.25 Lbs (5.10 kg)
