Portapack H2 3.2 Inch Touch LCD + Aluminum Case + 2000mAh Battery + Speaker For ONE SDR

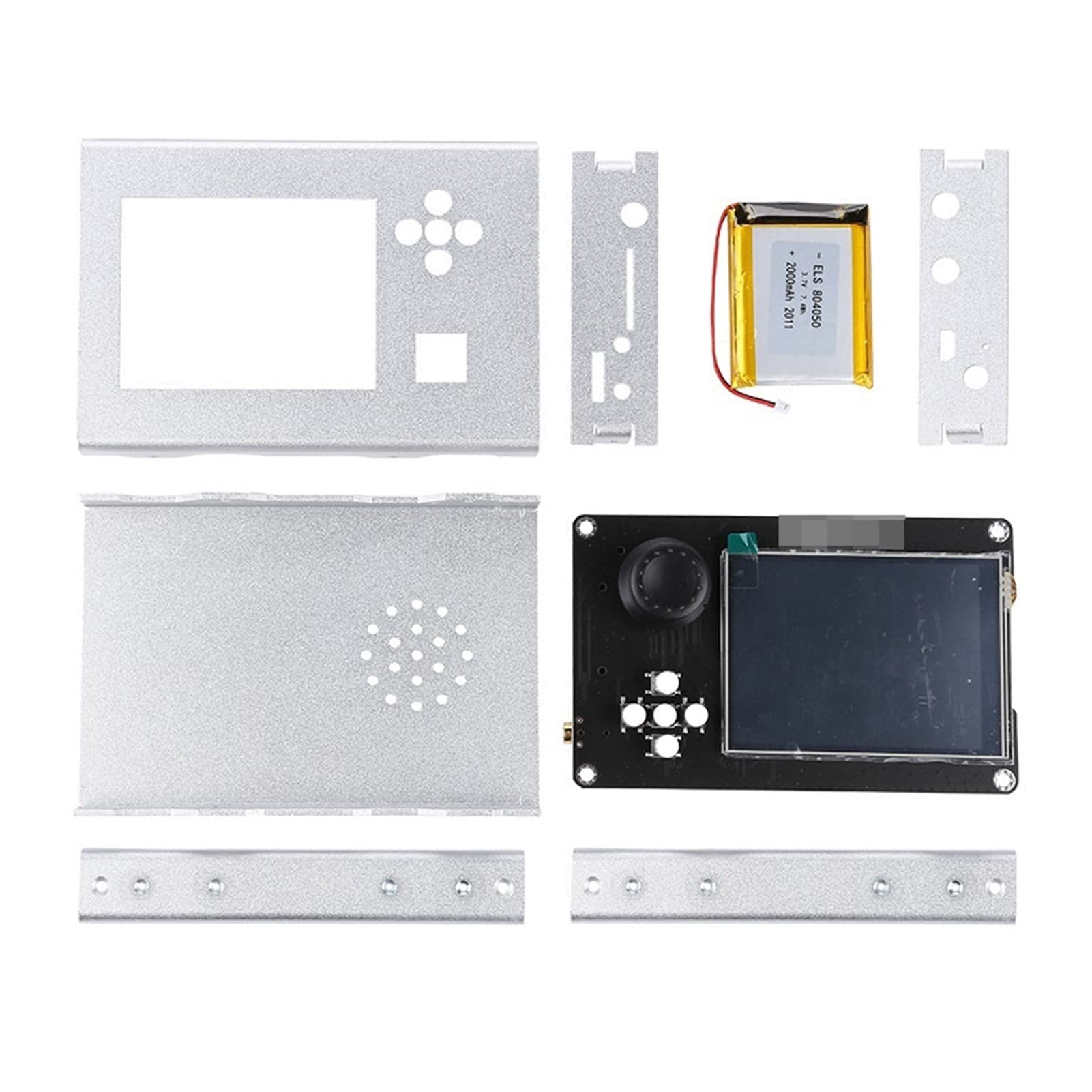

Overview: This Portapack H2 module adds a 3.2 inch touch LCD and navigation controls to your Hackrf One, plus audio I/O, storage, precise timing, and battery backup. The included firmware supplies a full user interface and on-device signal processing so many tasks can be performed without a computer. The unit ships with a newly designed aluminum case available in black or silver. Display & Controls: - 3.2 inch touch screen for direct interaction and menu navigation - Encoder power on/off function (press one time to power on, press twice to power off) Audio & Storage: - Voice input and output capability (ADC, DAC) - SD card slot and TF card slot for data storage, playback and frequency management - With speaker and cable soldered Timing & GPS: - Built-in TCXO high-precision clock (0.5ppm) for accurate frequency performance - New firmware automatically switches to the external TCXO (clock source shows as external in the menu) - Built-in CR1220 battery with RTC clock function (records current time when saving baseband file) - Support offline GPS simulation Power & Charging: - 2000mAh lithium battery included - Li po battery Charger supported - Comes with 3M double sided adhesive tape to fix the battery and speaker (using a hot melt glue gun is recommended for stronger mounting) Compatibility & Assembly: - Designed for users who already have the Hackrf One: assemble the parts, flash the firmware, and start using the device - If you need additional antennas, an antenna kit is available separately Package Contents: 1 x Portapack H2 1 x Case with screws(Black or silver) 1 x 2000mAh battery 1 x 8 0.5W speaker 1 x Double Sided Adhesive Tape
