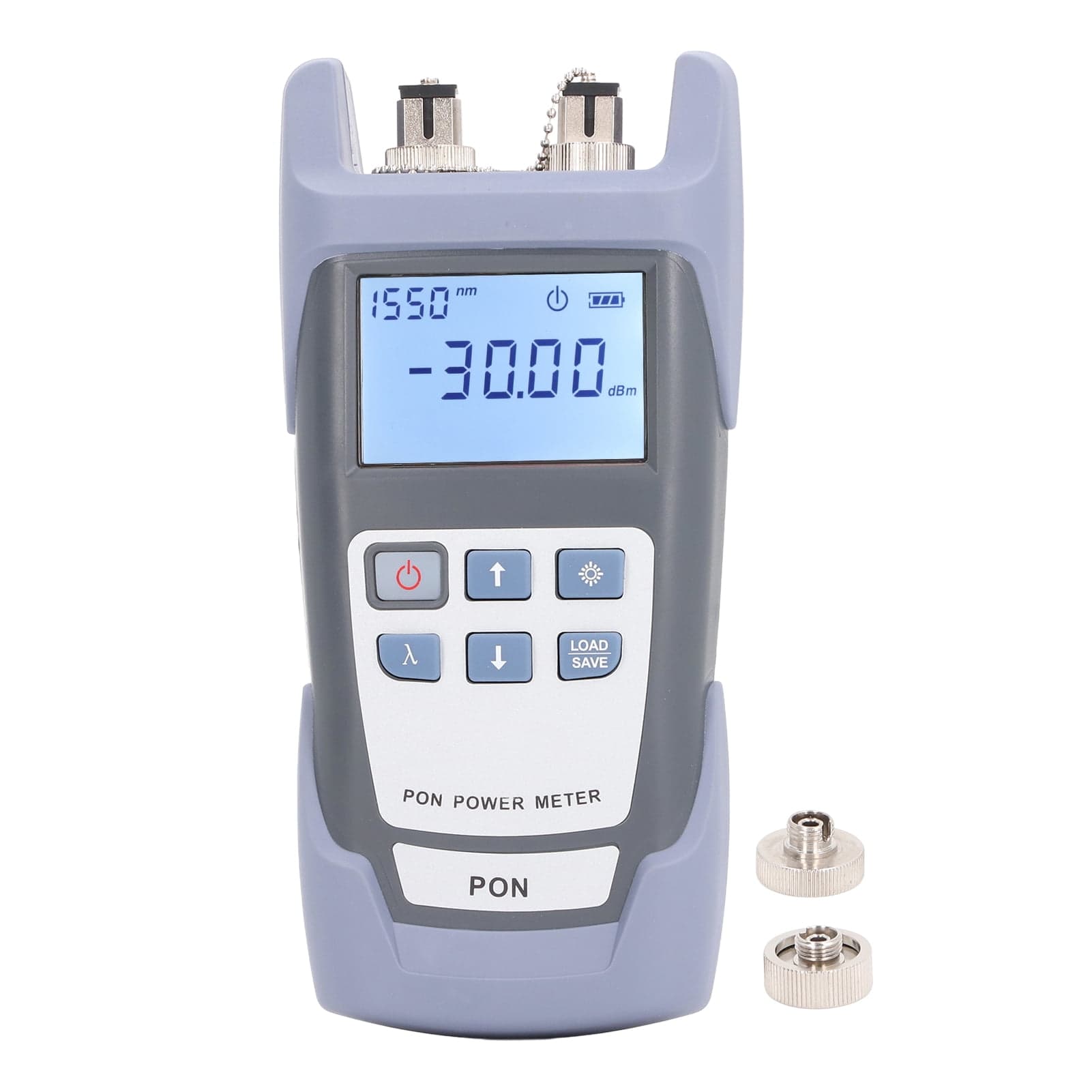

PON Optical Power Meter — 1310 / 1490 / 1550 nm Simultaneous Testing, GPON / XGPON / XGSPON / 10G, FC/SC UPC

Overview: Handheld PON optical power meter designed for verifying optical power of ONU and OLT signals in PON networks. It performs online measurements via bidirectional ports and is compatible with GPON, XGPON, XGSPON and 10G network types. Measurement capabilities: Supports downstream mixed optical signal measurement and up burst emission signal measurement. The meter can measure the three wavelengths 1310nm, 1490nm and 1550nm simultaneously, ensuring accurate online verification of OLT-to-ONT communication. Interfaces and indicators: Supplied with FC and SC UPC interface adapters for connector flexibility. If the measured optical power rises above a preset threshold, the LED indicator on the display will illuminate to alert the user. Utility functions: Built-in data storage, selectable backlight, automatic shutdown, automatic calibration and option for user calibration. Threshold setting is supported for pass/fail checking. Design and portability: Precision-engineered for high testing accuracy with fine workmanship. The unit is lightweight and easy to carry and comes with a soft silicone protective cover to reduce damage caused by collisions and falls.
