Platinized Gr1 Titanium Mesh Anode — 10 * 13cm (3.9 * 5.1in), 0.5mm/0.02in, 1um Pt Coating — Jewelry Plating, Hydrogen Production & Fuel Cells

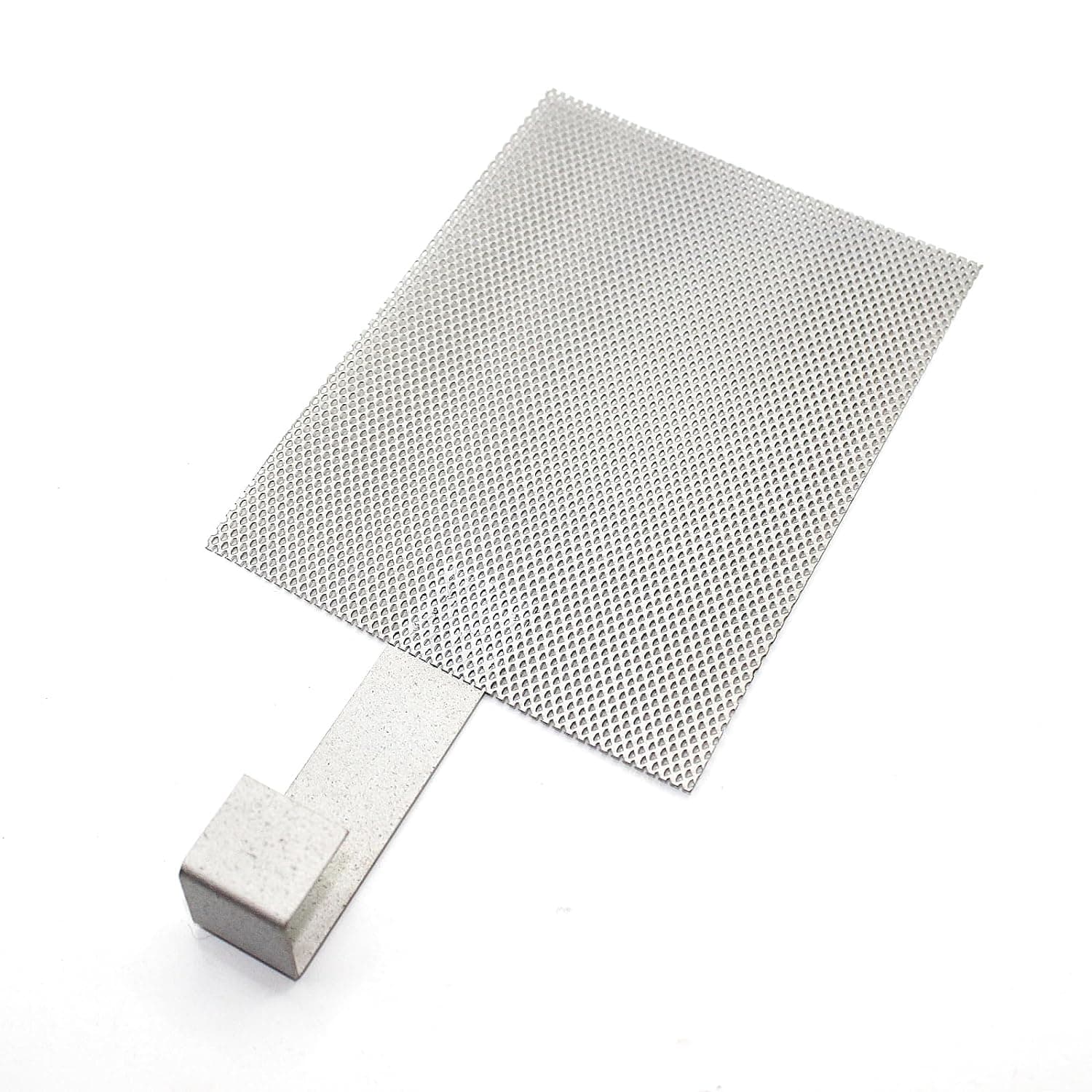

Product overview: This is a fully platinized titanium mesh anode (including handle) built on a Gr1 titanium substrate. The electrode is designed to perform reliably in harsh environments such as saturated sodium chloride solutions and will not degrade when operated under high pressure. Construction and substrate benefits: The base is Gr1 titanium, providing a reusable substrate that does not contaminate the electrolyte during repeated electrolysis cycles. Titanium’s robustness under pressure and in saline media makes it ideal for long-term use. Platinum coating and performance: The DSA platinized platinum coating delivers excellent electrocatalytic activity, high current efficiency, stable electrical conductivity and prolonged electrode life. These properties make the mesh effective for demanding electrochemical processes. Applications: Primarily used for plating platinum or gold onto jewelry surfaces to prevent oxidation and fading. When paired with electroplating machines and electrolytic water, it can also be used to clean gold and silver jewelry surfaces. In addition, platinized electrodes are suitable for hydrogen production and for use in fuel cell systems. Dimensions and finish: Effective area 10 * 13cm (3.9 * 5.1in); substrate thickness 0.5mm/0.02in; platinum coating thickness 1um. Product appearance matches the provided image.
