Eugene Color PDC6000 Postal Scales | sku-8695524823

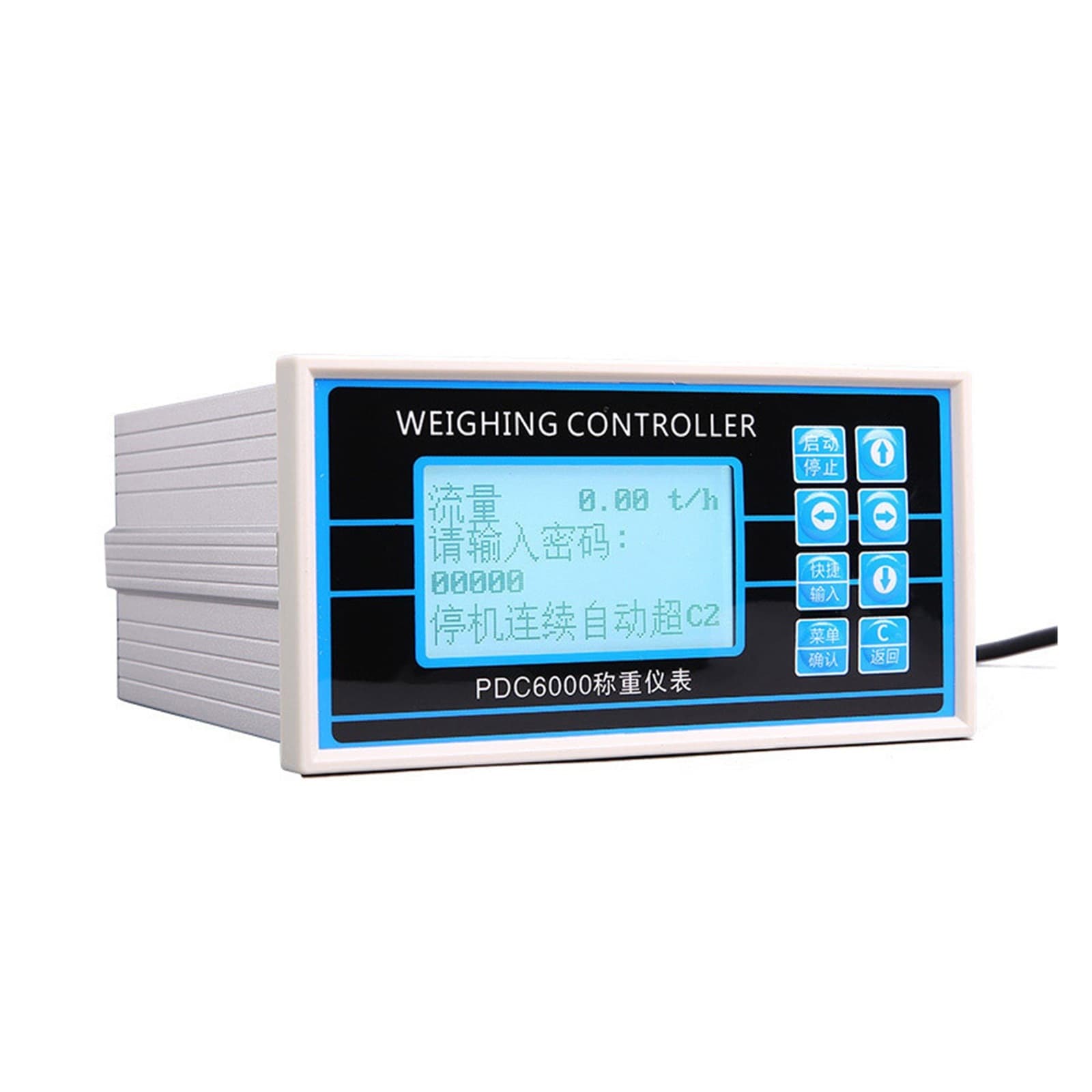

Eugene Color PDC6000 is a conveyor belt scale weighing controller system with an LCD screen and aluminum alloy material. Listed under Postal Scales as sku-8695524823, it uses a 24V DC source and consumes 10 W. The stated working temperature is from 5°C to 65°C (137°F to 23°F), with humidity no higher than 90% relative humidity and no condensation. The listed weight is 1.5 kg.

It accepts resistance strain weighing sensors; the stated sensor input is 5V ± 5% DC, with supply described as up to 500 mm and a reference to 1 electric current. Input sensitivity is stated as 0.3 mesh V/grid to 0.3mV/grid. At DC 500V, the source specifies a minimum terminal-to-terminal impedance of 100mQ.

The adjustable zero voltage range is 0.3mV to 15.0mV; the effective input voltage range is 0.3mV to 30.0mV. The stated temperature coefficient is 0.0008% of reading or less plus 0.3 degrees per °C. The nonlinear error is listed as less than 0.0015% of full scale. It uses delta-sigma sampling at up to 200 samples per second.
