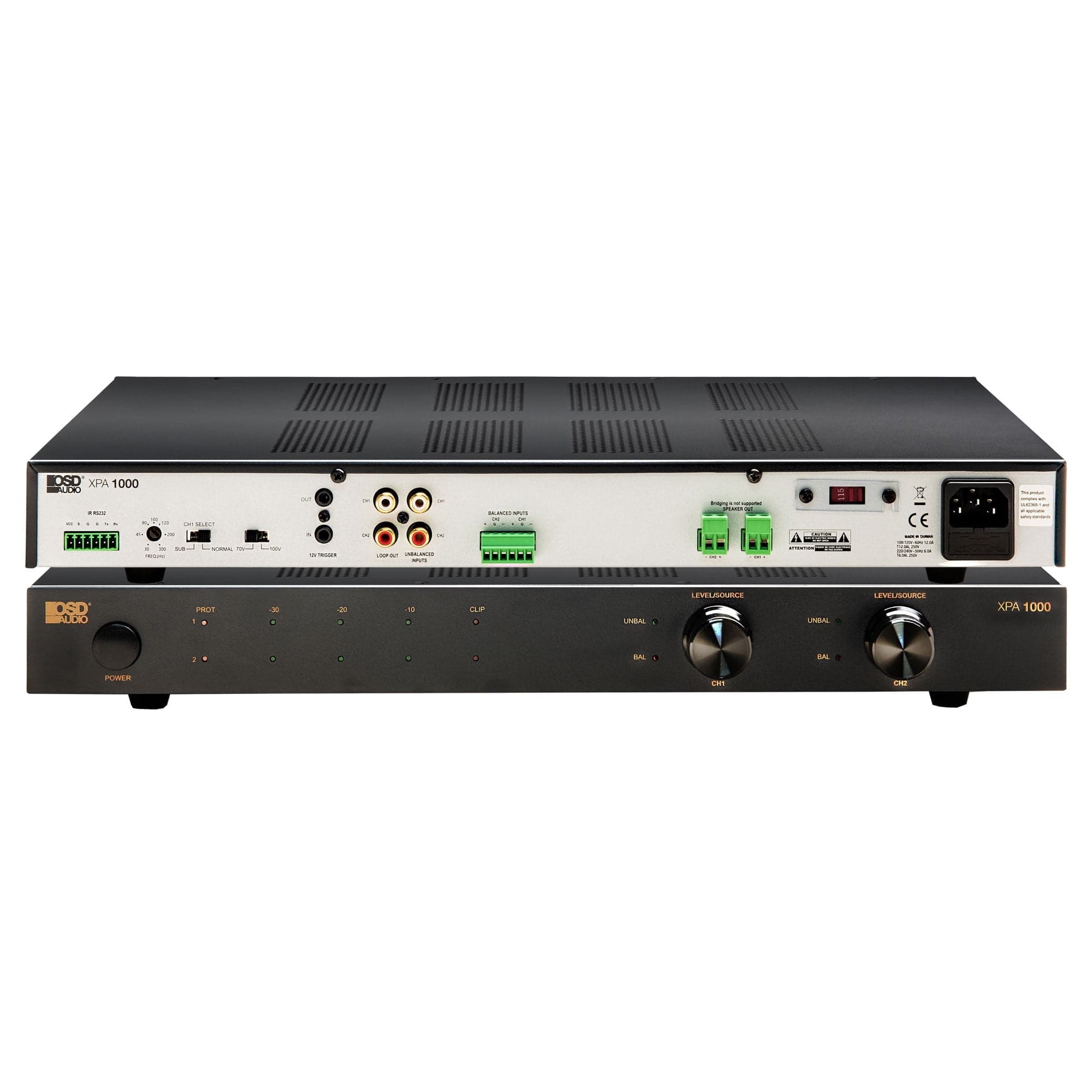

OSD Audio XPA1000 2-Channel Class D 70V/100V Commercial Amplifier — 1000W (500W/ch) with RS232, 12V Trigger & IR Remote

Compact 1U rack commercial amplifier delivering up to 1000W total (500W per channel) in selectable 70V/100V operation. The OSD Audio XPA1000 employs a Digital Class D topology and provides a wide frequency response of 20Hz - 22kHz (+0/-2dB) with >90dB A Weighted signal-to-noise performance. Total harmonic distortion is 1% at rated power, and the line level input sensitivity is 510mV. Key features and specifications: - Amplifier Type: Multi-Channel 70V/100V Amplifier - Class: Digital Class D - Channels: 2 - Power Handling: 500W per channel - Max Power Output: 1000W total - Frequency Response: 20Hz - 22kHz (+0/-2dB) - Signal To Noise: >90dB A Weighted - Line Level Input Sensitivity: 510mV - Inputs: Balanced and Unbalanced Inputs - Outputs: Unbalanced loop line output to another amplifier - Front Panel: Level meter; front panel status with protection & warning LEDs - 12V Trigger: For remote turn on + out to trigger external device - Cooling: Fan cooled - IR Remote: IR remote included; hard wired IR receiver; codes available - RS232: RS232 queries & commands available - Chassis Design: 1U rack - THD: 1% (Rated Power) - Adjustable Level: Min - Max - Thermal Protection: Yes - Short Protection: Yes - 70V/100V: Selectable rear panel switch - Voltage: Multi-Voltage: AC115/230V - Dimensions (WxHxD): 17" x 1.7" x 9.4" - Weight: 9.25lbs Designed for commercial installations, the XPA1000 combines rack-friendly form factor with remote control options and robust protection features to support reliable long-term operation.
