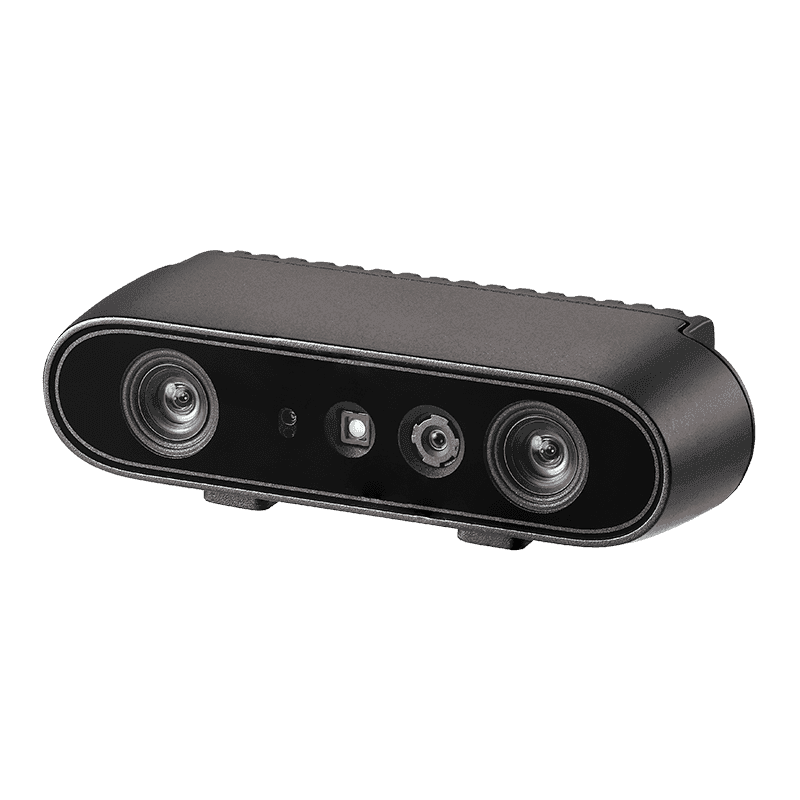

Orbbec Gemini 335 (G40155-170) Depth + RGB Camera — Stereo (50mm baseline), 1280x800@30fps, USB 3.0 Type-C, IP5X

The Orbbec Gemini 330 series pairs active and passive stereo vision to deliver robust depth and RGB capture in both indoor and outdoor settings. The Gemini 335 integrates Orbbec’s custom ASIC to compute depth frames and perform depth-to-color spatial alignment on-device, reducing the need for powerful external processors. It supports programmable depth operating modes and flexible frame synchronization to simplify scalable multi-camera setups; IMU support and trigger capability further extend integration options. The Gemini 335 features a 50mm baseline and an IP5X rating, and is straightforward to deploy with the Orbbec SDK. It produces reliable depth information across lighting conditions from pitch black to bright outdoor environments. Key performance highlights include a wide depth field of view (H90° / V65°), high-quality depth suitable for indoor and outdoor use, and USB Type-C for combined power and data. Technical Specs: Product Name: Gemini 335 Model: G40155-170 Depth Technology: Stereo Depth Range: *0.10 - 10m (Optimal Range: 0.26 - 3m) Depth Resolution/FPS: Up to 1280X800@30fps Depth FOV: H90° V65° RGB Resolution/FPS: Up to 1920X1080@30fps RGB FOV: H86° V55° Processing: Orbbec ASIC IMU: Supported Data Connection: USB 3.0 Type-C Power Input: USB 3.0 Type-C Trigger: Supported Power Consumption: Average < 3.0W Operating Environment : -10℃ - 45℃; Indoor/Outdoor; 5%~95%RH (non-condensing) SDK Support : Orbbec SDK Data Output: Point Cloud, Depth Map, IR & RGB Dimensions (W*H*D): 90mm x 25mm x 30mm Weight: 97g Installation: Bottom: ¼-20UNC Back: 2 x M3 Wavelength: 850nm Order fulfilled through Computech International, shipping from Long Island, NY
