Oneida Air Systems AXD250504PL Cyclone sku-1780859220

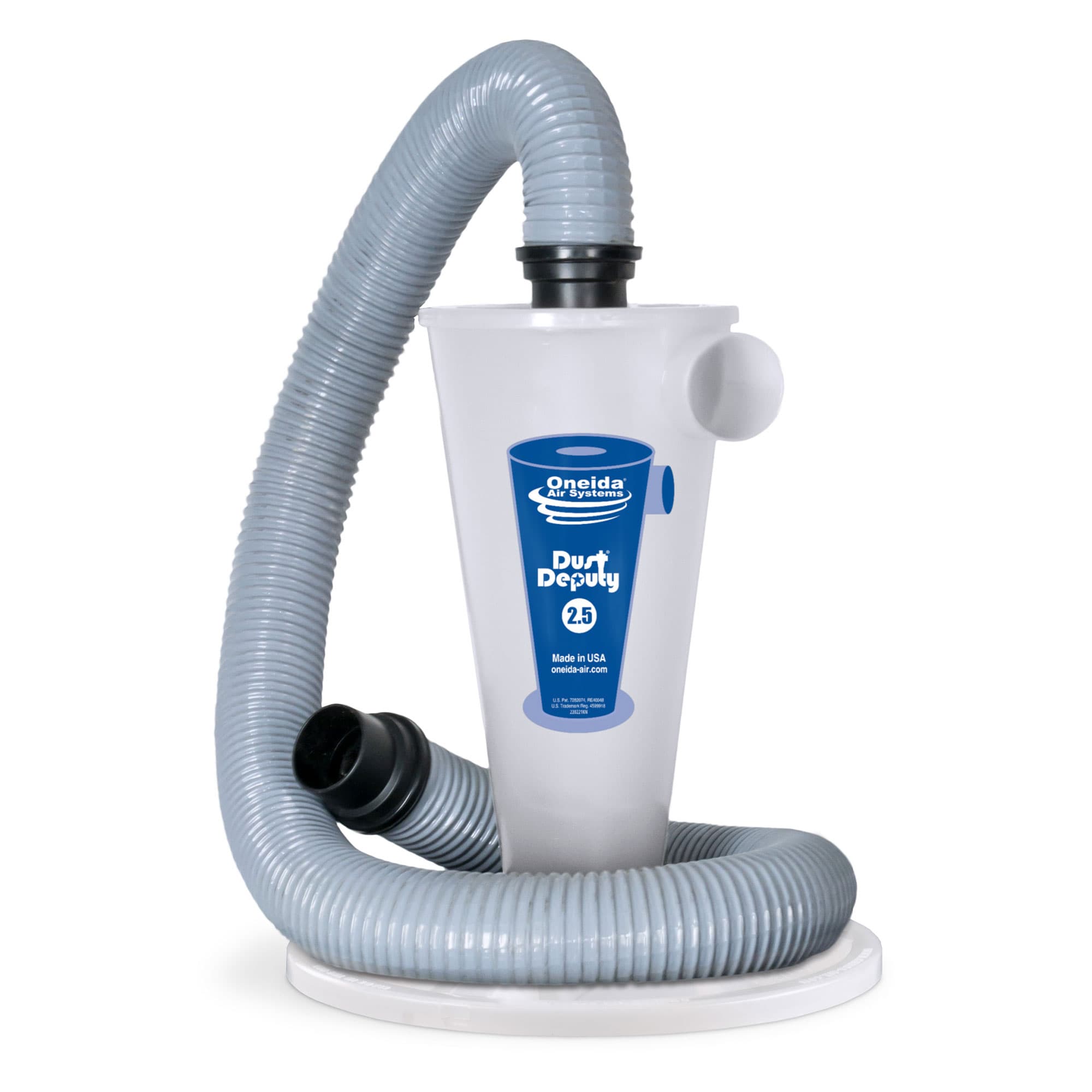

Oneida Air Systems Dust Deputy 2.5 Plus, model AXD250504PL, is a Clear anti-static cyclone separator kit for Vacuums, Steamers & Floor Care. It uses centrifugal force to capture 99 percent of dust and debris before they reach a vacuum filter, reducing filter clogging, suction loss, cleaning and replacement.

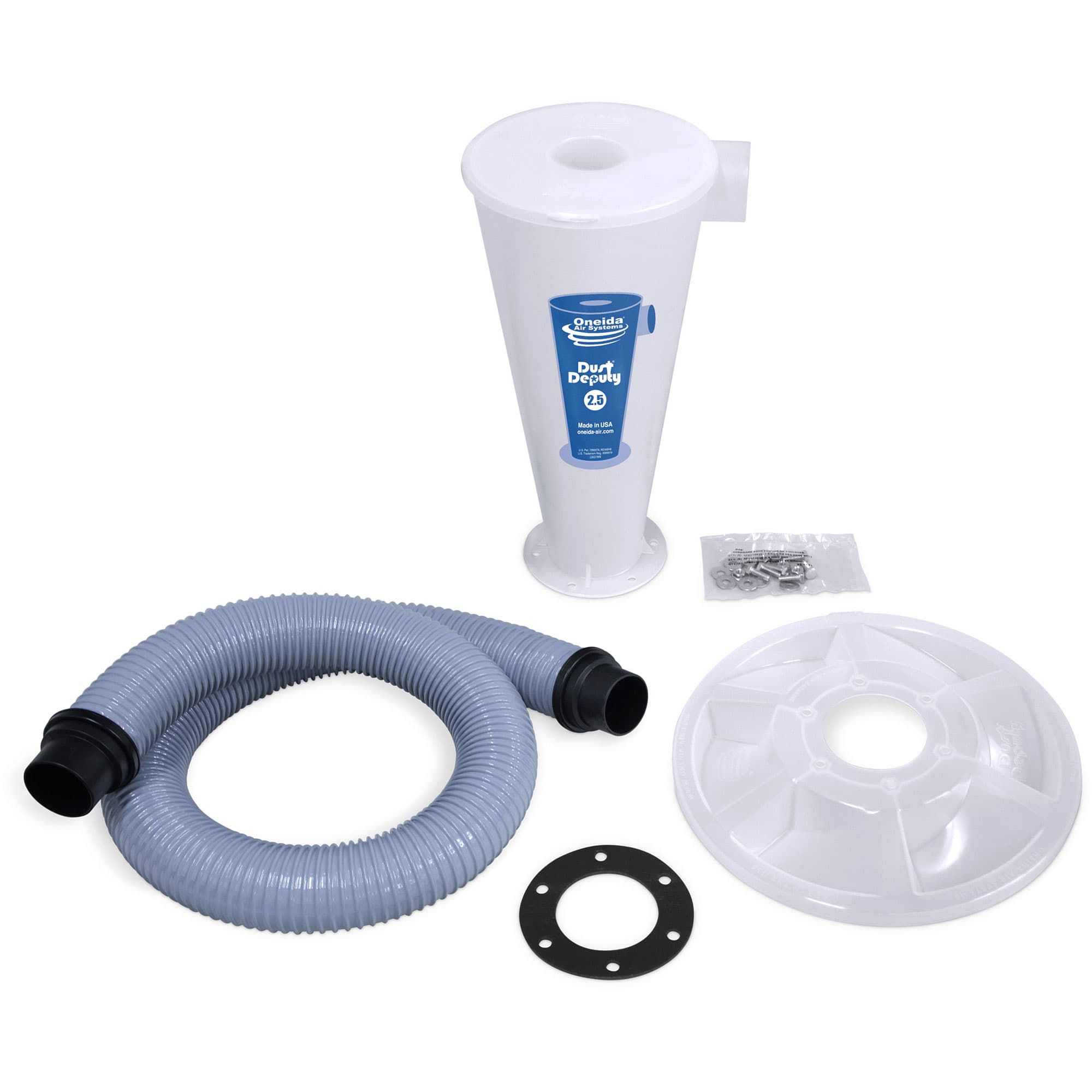

The kit includes a separator, quick-release bucket lid, 4-foot hose, pre-cut neoprene foam gasket and lid mounting hardware. It fits most standard 5-gallon buckets, sold separately; a dolly is recommended for stability. It works with materials including drywall and wood dust, baking flour, grass, pet hair, soot, blasting soda and metal shavings, for construction or home use.

It upgrades shop vacuums with 2.5-inch hose fittings and has a backwards-compatible 3-inch ID flange. Clear components let you see separation and spot blockages; anti-static components reduce the likelihood of shocks. Neutral-vane technology improves separation efficiency by 20 percent.

Optimized for larger wet/dry vacuums, it delivers up to 2 times the airflow of smaller cyclones and lid-style separators. Inlet: 2.25 I.D. and 2.5 inches O.D.; tapered inlet: 2.31 to 2.29 inches I.D. Outlet: 2.25 inches I.D.; tapered outlet: 2.31 to 2.29 inches I.D. Discharge: 3 inches I.D. Height to inlet center: 15.63 inches. Made of polypropylene.

Dimensions with lid: 12.75 x 12.13 x 17.50 inches; cyclone only: 8.5 x 7.63 x 17.50 inches. Weight: 5 pounds. Manufacturer warranty: 1-year. SKU: sku-1780859220. UPC: 850037706068.
