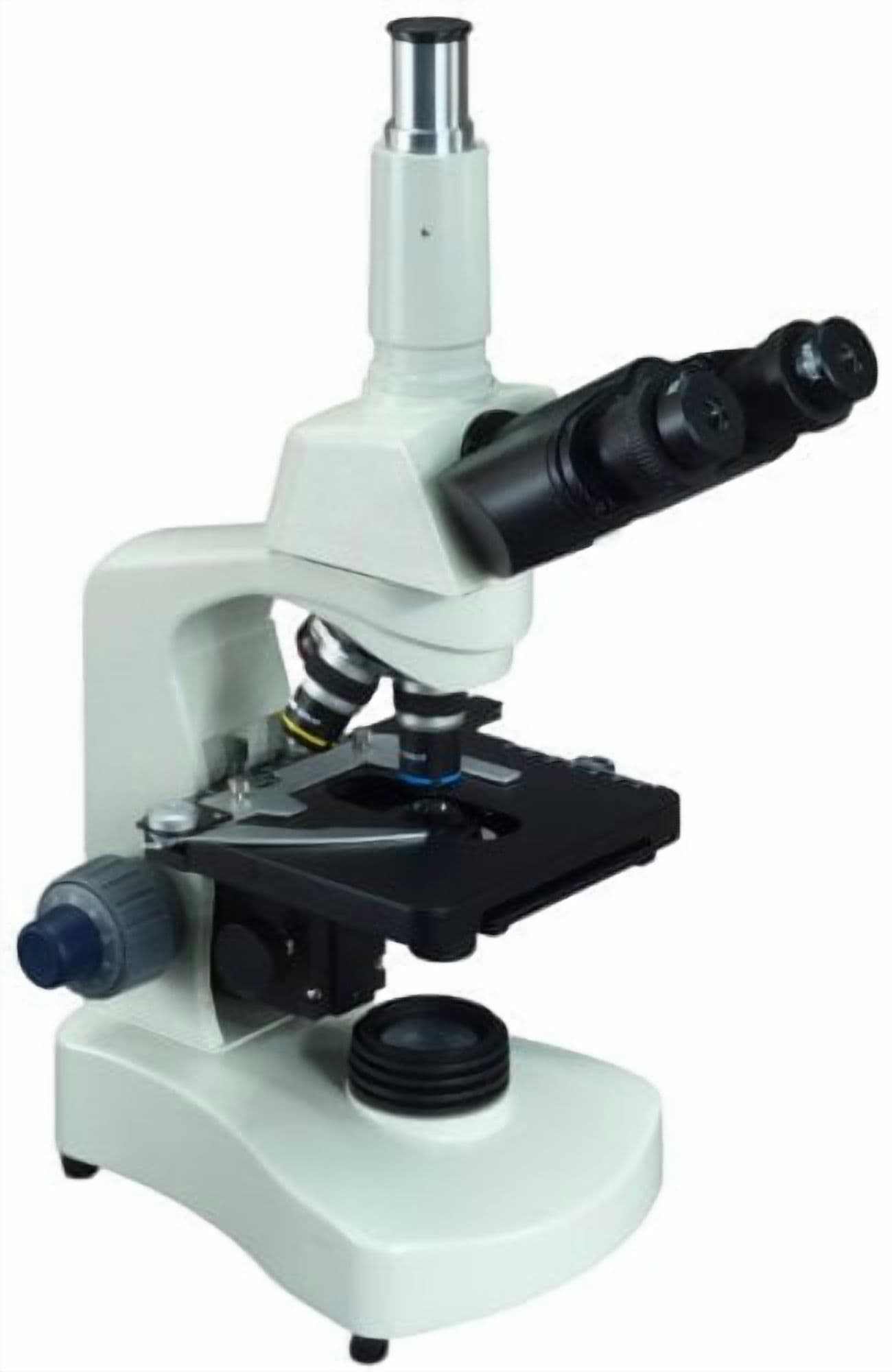

OMAX M8311-C50 LED Trinocular Microscopes sku-730143767
No rating yet(0 ratings)The OMAX M8311-C50 is a Multicolor trinocular compound microscope in the Microscopes category. Its total magnifications are 40X, 80X, 100X, 200X, 400X, 800X, 1000X and 2000X. It has wide-field WF10X/18 and WF20X eyepieces and achromatic DIN 4X, 10X, 40X spring-loaded and 100X spring-loaded oil objectives. The Siedentopf head is inclined 30 degrees and rotates 360 degrees.
Hinge-adjusted interpupillary distance is 48mm to 75mm, with diopter adjustment on the left eyepiece tube. The reversed quadruple nosepiece revolves. The scaled X-Y mechanical stage measures 110mm x 140mm and has a 78mm x 40mm travel range. Coaxial coarse and fine focus knobs are on both sides, with rack-and-pinion adjustment, tension control and a stop.
Illumination comes from a replaceable, intensity-adjustable 3W transmitted LED. The Abbe NA1.25 condenser has an iris diaphragm, filter holder and rack-and-pinion adjustment. Power supply: AC 100V to 240V, 50/60Hz, compatible with the US and Canada. A 5-year warranty covers manufacturing defects. SKU: sku-730143767. UPC: 729440210830.
