OEM AR 7/8" Shaft 2800 PSI Power Pressure Washer Pump for Briggs & Stratton 206376GS

OEM Annovi Reverberi Pressure Washer Pump Specs - Maximum Pressure: 2800 PSI. Maximum Flow: 2.5 GPM. Maximum Pump Speed: 3400 RPM. Shaft Size: 7/8". 4 Bolt Pattern. Maximum Fluid Temperature: 140° F. Inlet Type: 3/4" Garden Hose. Outlet Type: 22mm x 14mm. Oil Capacity: 2.2oz (prefilled).

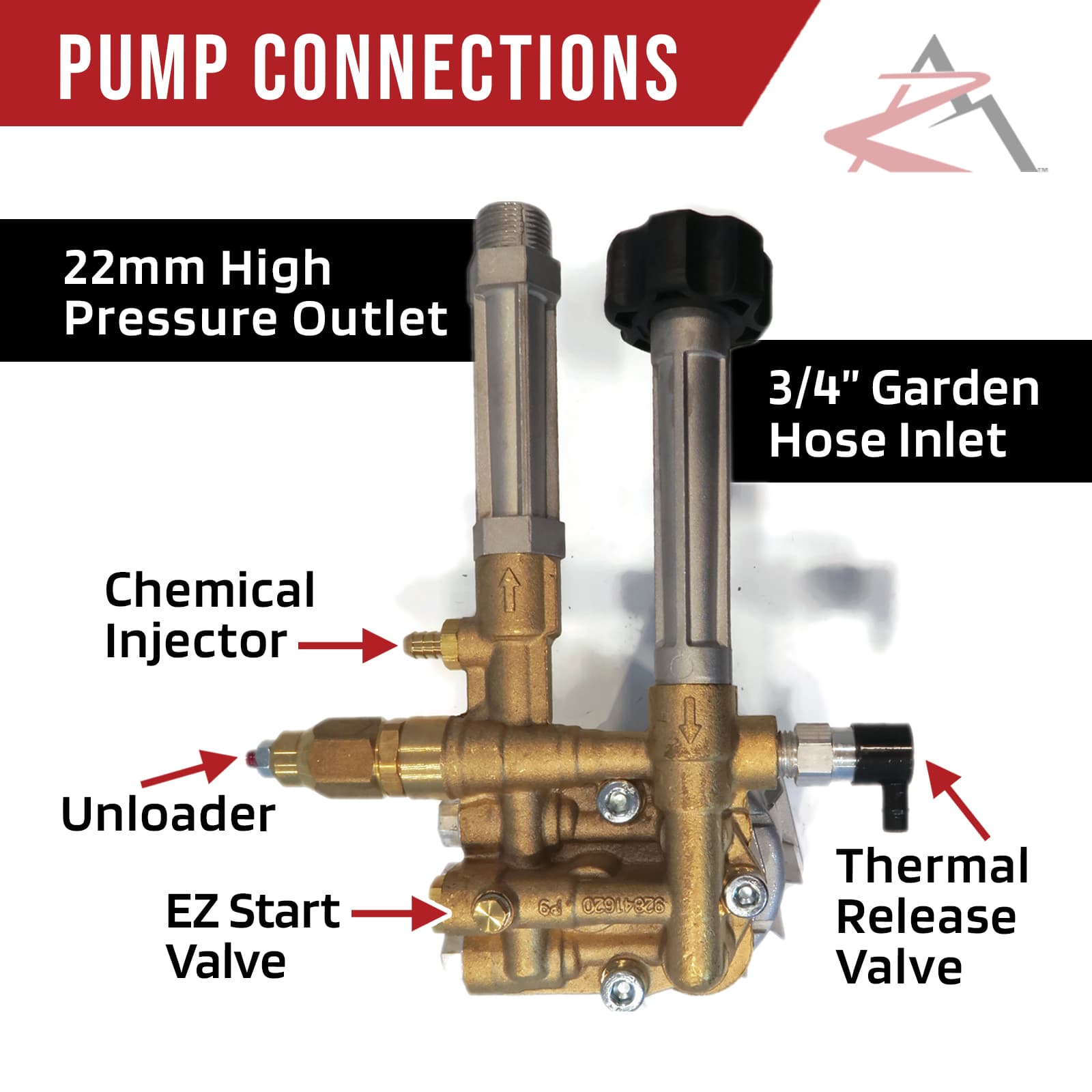

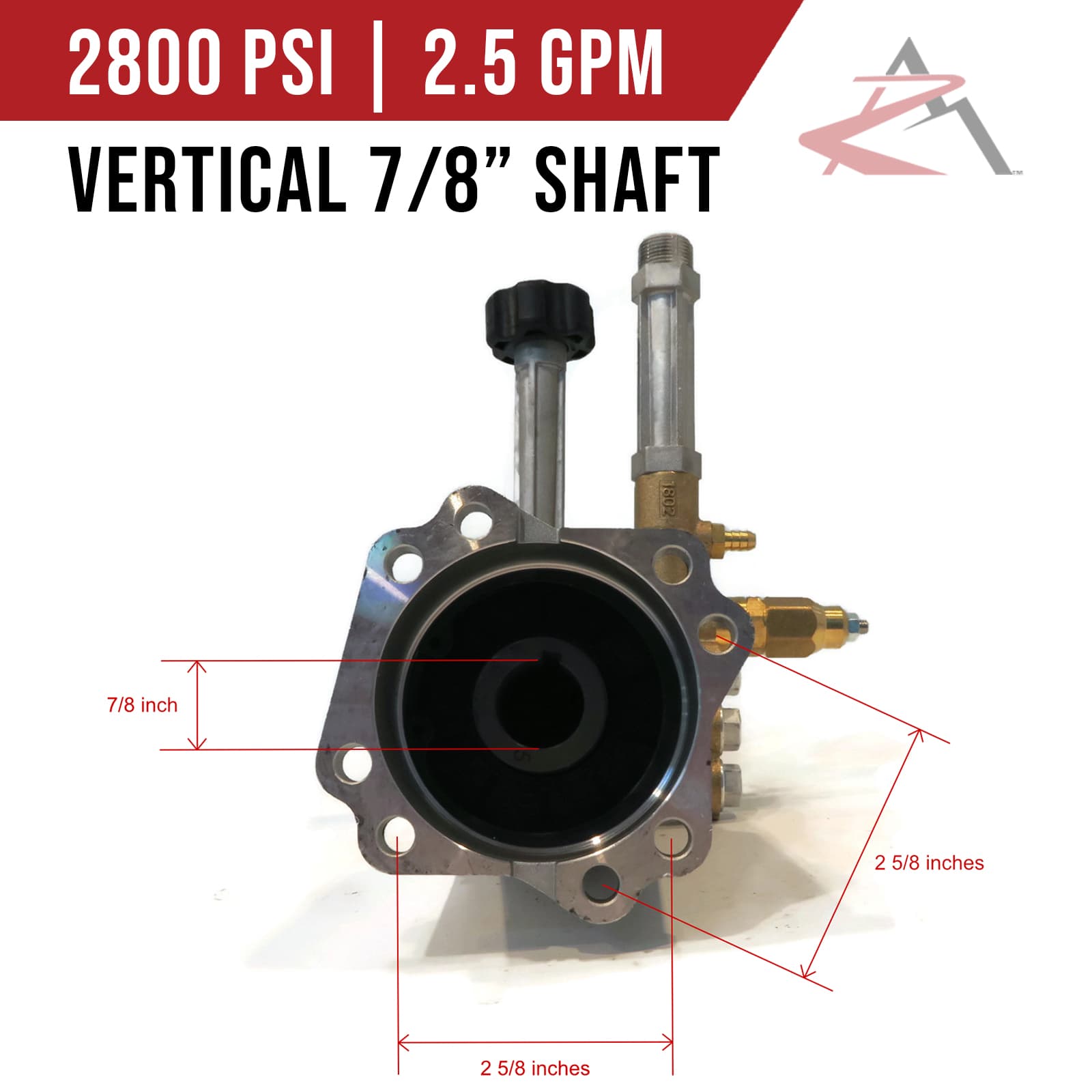

Refer to images 2 and 3 for more information Includes - (1) Vertical Pressure Washer Pump, (1) Thermal Release Valve, (1) Chemical Injector (both come installed), (4) Bolts & (4) Lock Washers; comes as shown in the first image This is a triplex residential plunger pump for vertical gas engine driven pressure washers.

This pump mounts directly on to the engine shaft by using a keyed hollow shaft connection system. The mounting flange provides a convenient connection to most 7/8" diameter shaft vertical gas engines with at least 5-5.5 HP. Please note it is not recommended to run any pressure washer pump above its maximum PSI rating.

Doing so can result in damage to the pump (not covered by warranty) Please confirm your OEM part number, along with your unit's model, spec, type/code, and serial number to ensure this is the correct part for your unit. This part may replace multiple OEM numbers, so verifying every detail is important for a proper fit.

If you're unsure or have questions about compatibility, feel free to contact us!
