OceanLED 013201 OceanBridge Boating Other sku-5347818568

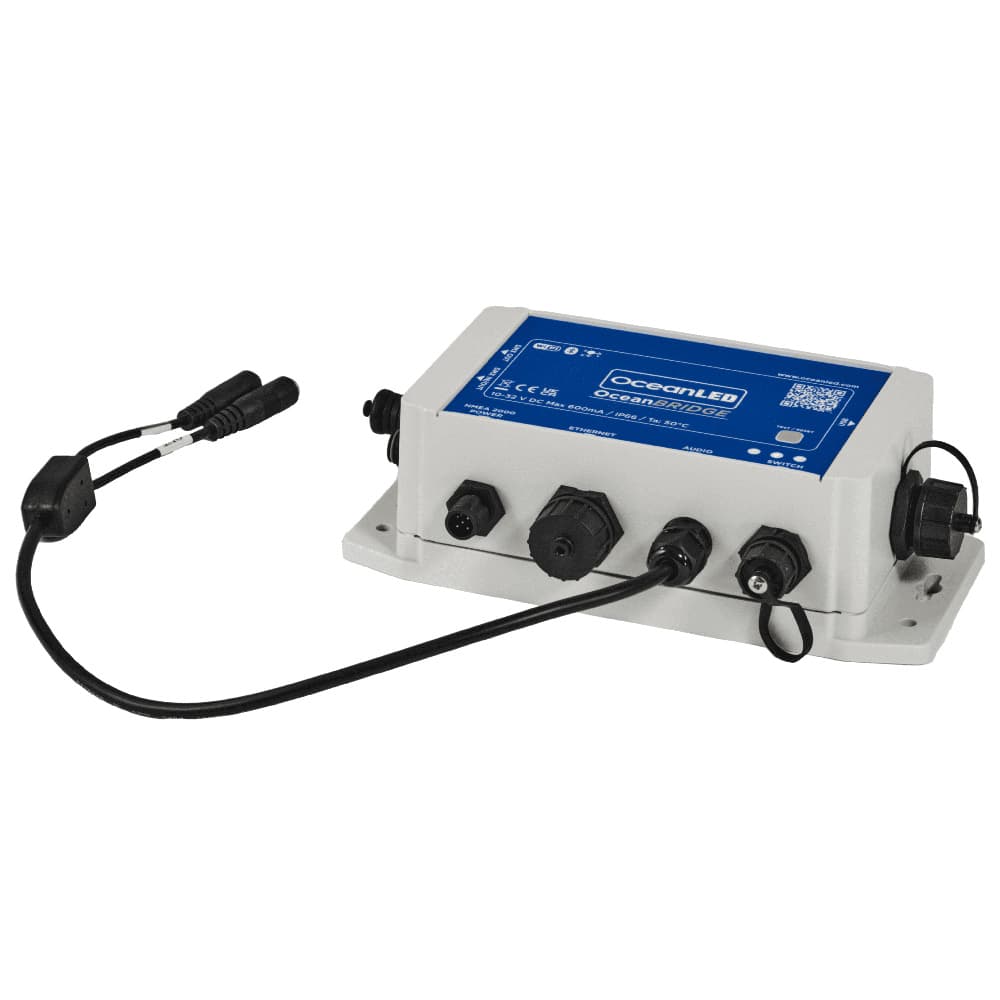

The OceanLED OceanBridge control unit, model 013201, is listed in Boating with color Other and SKU sku-5347818568. This patented multizone controller operates boat lights through an MFD, smartphone or tablet using built-in Wi-Fi. It controls OceanLED lights and accessories and most third-party DC-powered DMX or on/off lights.

Controls include color changes, fades and transitions, brightness, music sync, zone creation and OceanLED's patented movement-to-color function. It can be used on a small RIB, sport fishing boat, sailing yacht or motor cruiser; the compact unit is designed for quick installation.

Users can set 10 lighting zones and up to 10 scenes, save colors and modes, assign scenes to zones, and apply the sweep or 'Knight Rider' scene to a zone with lights of the same type. It also supports four instant-on external switches. The system controls up to 64 DMX or on/off lights at once, including non-OceanLED lights, and can expand to over 150 with splitters.

It supports NMEA 2000 and MFD network connections. Music sync uses an AUX input or Bluetooth audio and responds to bass, midtones and treble. A built-in gyroscope enables movement-based color changes, while a timer triggers scenes at set times. Compatible MFD brands listed are Garmin, Simrad, Lowrance, B & G, Raymarine and Furuno.

Features include touch-sensitive control, dynamic audio control and Wave Motion Mode. Technical specifications: IP66 water protection; 6W power consumption (500mA @12V DC); 12/24V DC operation, maximum 32V DC; NMEA 2000 power input; IP68 input and output cable glands; built-in Wi-Fi and Bluetooth; gyroscope and thermal sensors; operating temperature -10°C to 50°C; NMEA 2000 and Ethernet network connections; 1 x Audio-In 3.5mm and 1 x Audio-Out 3.5mm.

Dimensions are listed as 210mm x 91m x 65mm, weight 490g and material polycarbonate. Box dimensions: 3"H x 7"W x 11"L; shipping weight 1.6 lbs. UPC: 5051803009061. An owner's manual is listed as a PDF.
