OBDPROG M500 diagnostic tool sku-5753617530 785768249907

The OBDPROG M500 is listed under Diagnostic and Test Tools. Via OBDII, it backs up and recovers data; reads, writes, and resets odometer values; resets oil service reminders; and reads and clears DTCs. It also provides instruction documents and a one-click upgrade. Vehicle coverage varies. For V.A.G models after 2014, mileage correction depends mainly on the instrument type.

For Mercedes-Benz models, it depends mainly on the chassis number and requires a separately purchased meter filter. Citroën and Peugeot mileage correction supports only the BSI system, and data must be backed up first. Most supported vehicles are covered up to 2018; a small number of models extend to 2020 or 2021. Languages are English, Spanish, Polish, Portuguese, French, German, and Italian.

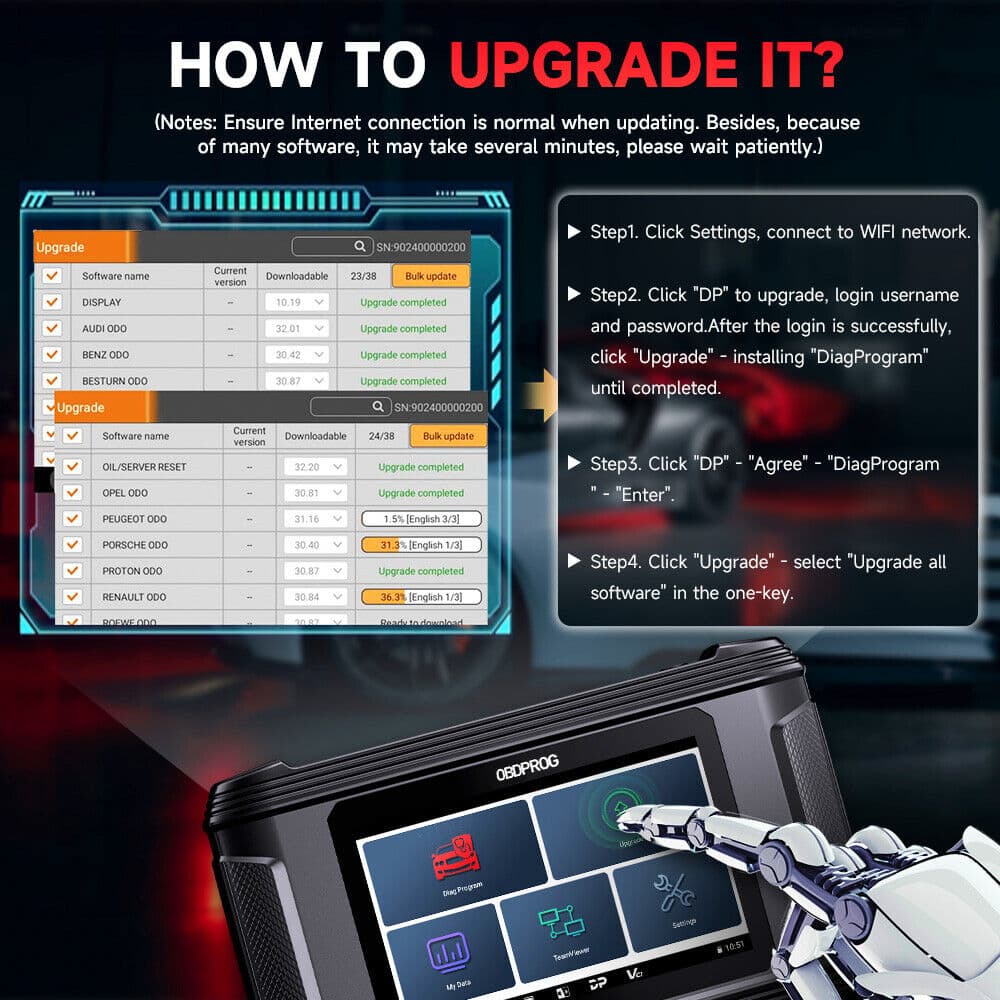

English is the default; changing languages requires providing the product serial number for an update. Updates are free for 1 year, then require a fee. To update, connect to Wi-Fi in Settings, open DP, log in, install DiagProgram through Upgrade, then open DP, Agree, DiagProgram, and Enter before selecting Upgrade all software.

Registration also uses Settings, Wi-Fi, DP, and a username and password. Specifications: Android 5.1.1; RK3128 quad-core ARM Cortex A7 CPU; rechargeable 2500mA polymer lithium battery; support for a 32G Micro SD (TF) card; 16GB storage; 5.0 inch capacitive LCD at 800*480 resolution; and Wi-Fi. Working temperature: -20℃ to 55℃ (14℉ to 131℉); storage temperature: -20℃ to 70℃ (-4℉ to 158℉).

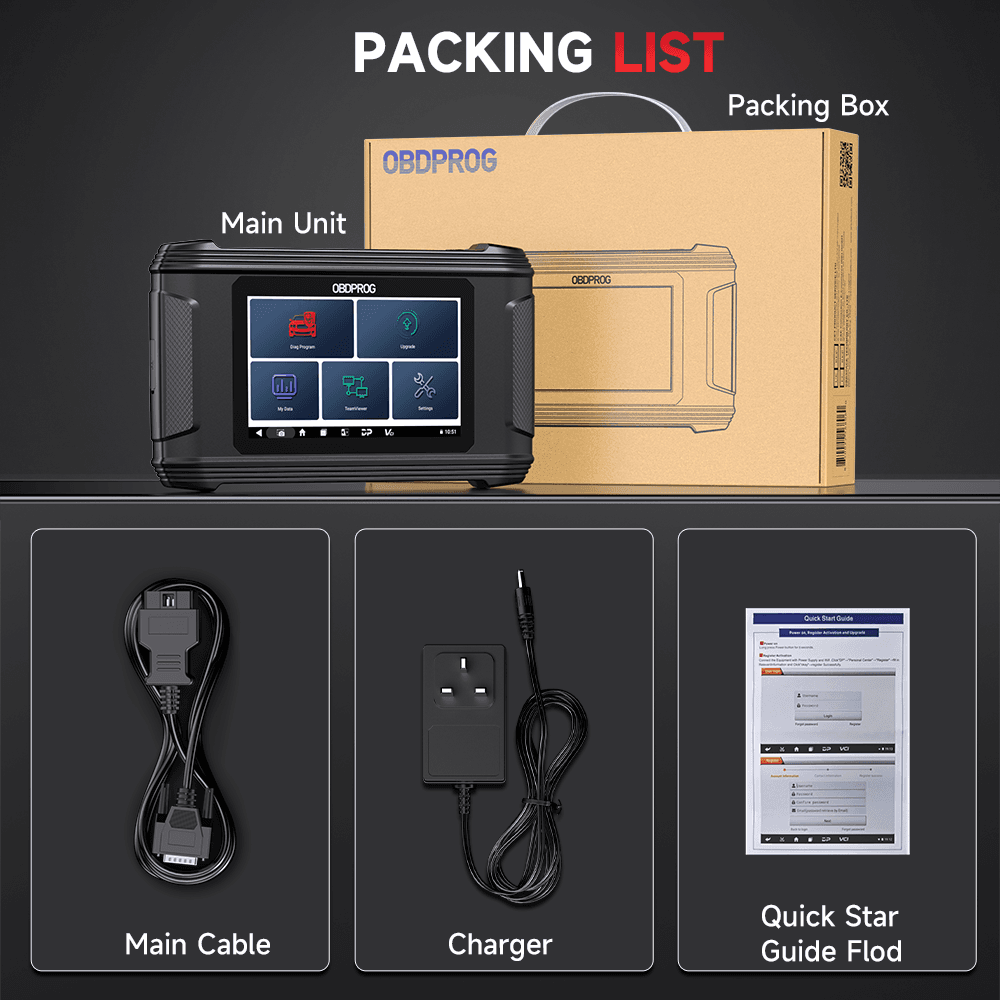

Weight is about 458g; dimensions are 220mm x 115mm x 28mm. The package includes 1 main unit, 1 main cable, 1 charger, 1 packing box, and 1 configuration or packing list. SKU: sku-5753617530. UPC: 785768249907.
