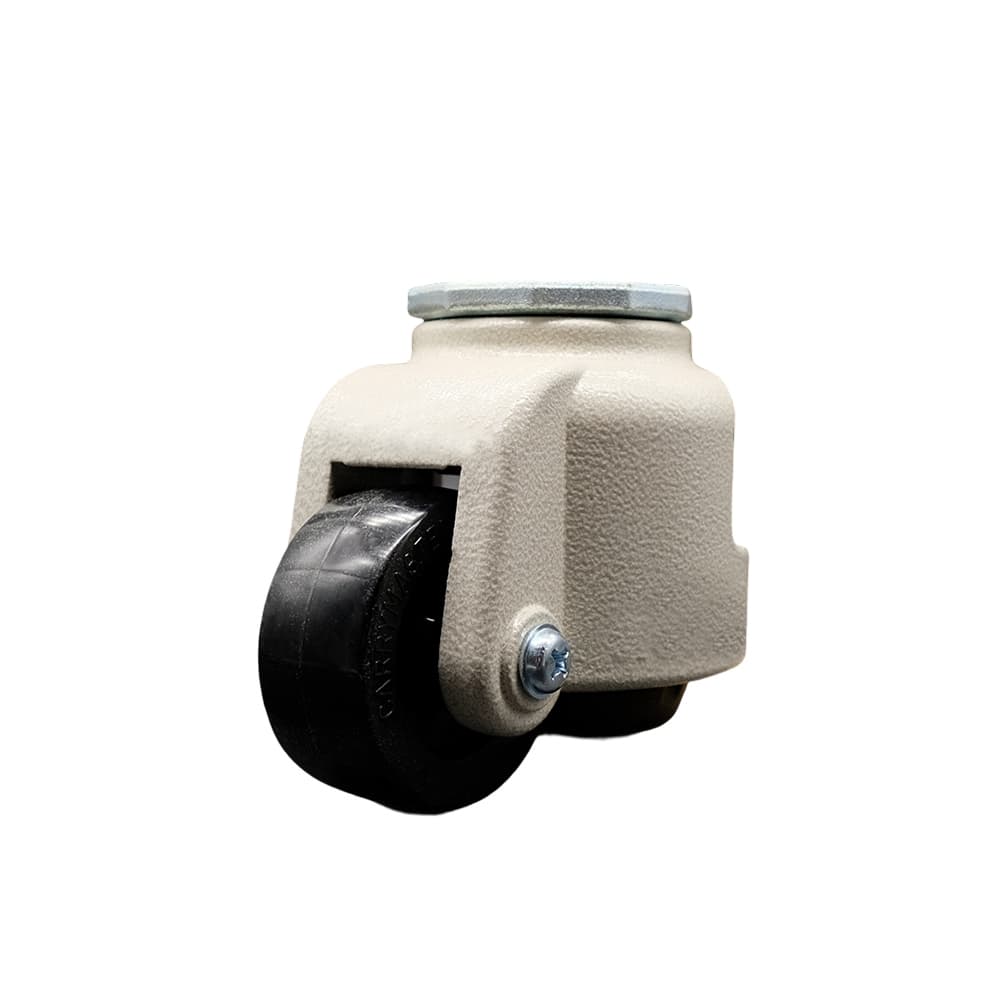

Nylon Swivel Threaded Stem Caster w/2.83" Black Wheel & M16 x 2.0mm x 24mm Stem

These Service Caster Floor Leveling Nylon casters offer various wheel sizes and mounting heights: 1.65” Wheel: 2.8” mounting height; 1.97"” wheel: 3.27” mounting height; 2” wheel: 2.85” mounting height; 2.8” wheel: 3.94” mounting height; 2.44” wheel: 4.02” mounting height; 2.83” wheel: 4.72” mounting height. Weight capacity ranges from 55 lbs on the 1.65” caster, 330 lbs on the 1.97”, 220 lbs on the 2”, 660 lbs. on the 2.44”, 1100 lbs. on the 2.8” & 2.83". All casters feature a M16 diameter (2.0mm x 24mm) threaded stem. Threaded stems can be difficult to measure. Service Caster recommends having existing threads checked on a thread gauge to determine correct thread size before ordering. Don't see the size you need? No problem! Call us or message us by clicking the blue Service Caster Corporation hyperlink underneath the buy or add to cart button and then clicking the ask a question button. The leveling foot can be raised by hand or wrench. Foot extends up to 18mm below wheel for leveling purposes.
