NVX N-Series NBA201 2-Channel Class A/B Amplifier — 700W RMS (1400W Peak)

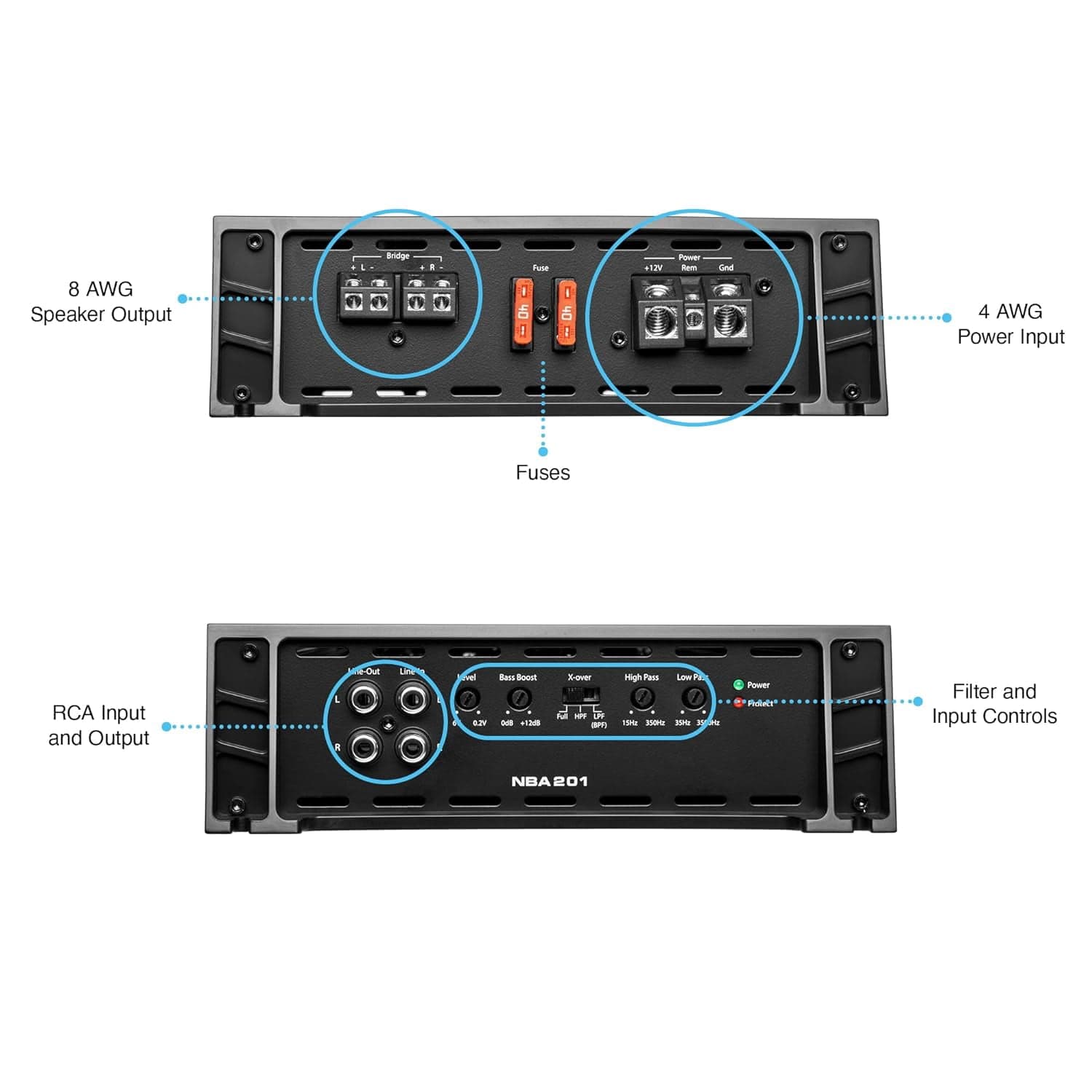

Overview: The NVX NBA201 is a Class A/B, 2-channel amplifier from the N-Series engineered to deliver clean, reliable power for car audio systems. It is CEA-2006 compliant and uses a pulse-width modulated MOSFET power supply with three-way protection circuitry (thermal, overload, and speaker short protection). Power Ratings (CEA-2006): - RMS: 200 watts x 2 @ 4 ohm; 350 watts x 2 @ 2 ohm; Bridged: 700 watts x 1 @ 4 ohm. Total RMS output: 700 watts. - Peak: 400 watts x 2 @ 4 ohm; 700 watts x 2 @ 2 ohm; Bridged Peak/Max: 700 watts x 1. Total Peak output: 1400 watts. Amplifier Features & Electrical Specs: - Amplifier Class: A/B; Series: N Series; Channels: 2-Channel. - Minimum Impedance: Unbridged 2 ohm; Bridged 4 ohm. - Maximum Input Gauge Size: 4 AWG (recommended for power and ground wiring). - Fuse Rating: 40A x 2 (Total Fuse Rating: 80 Amp). - Input Sensitivity (low level): 0.2V - 6V. - Speaker Level Inputs: No. Preamp Outputs: 1 pair. Audio Performance & Filters: - Frequency Response: 10 - 50 kHz. - Total Harmonic Distortion (THD): 0.5% at rated RMS power. - Signal-to-Noise Ratio: 90 dB. Channel Separation: 45 dB. - Built-in Crossovers: Variable High-Pass 15 - 350 Hz (24 dB/octave), Variable Low-Pass 35 - 3500 Hz (24 dB/octave), Subsonic filter: 24 dB/octave (frequency not specified). - Variable Bass Boost: 0 - 12 dB at 50 Hz. Remote bass/level controller: No. Physical & Installation: - Dimensions: 18.9" W x 7.8" L x 2.4" H. - 4 AWG gauge power and ground wiring is recommended for installation. Connectivity & Certification: - Bluetooth Connectivity: No. Hi-Res Certified: No. What’s Included: - Amplifier, mounting brackets, user manual, warranty/registration card. Warranty & Support: - Parts Warranty: 1 year. Labor Warranty: 1 year. Warranty Provider: Manufacturer. Additional Info: - Contact us for information regarding discounts on select amplifier kits from our website when purchased together with this amplifier. Authorized Internet Dealer.
