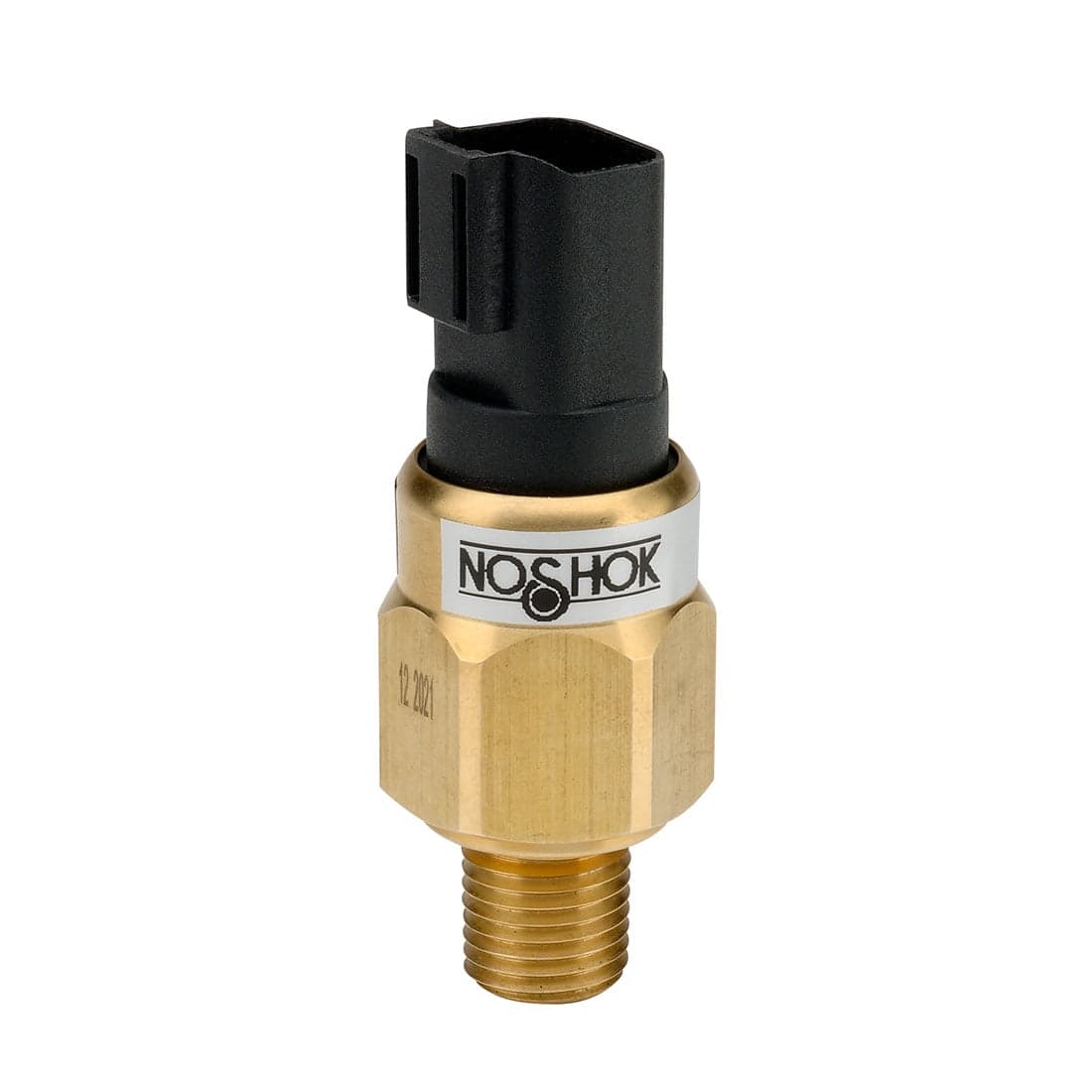

NOSHOK Mechanical Pressure Switch, 2-20 PSIG Range, 1/8 NPT Male, Brass, SPST Normally Open

The NOSHOK 100L Series Mechanical Pressure Switch offers reliable pressure monitoring with its creep action mechanism and brass construction. This versatile switch features a polyimide diaphragm and operates within a 2-20 PSIG range, with a proof pressure of 350 psi. The single pole single throw (SPST) normally open configuration connects via a Deutsch 2-Pin Male connector attached to flying leads. With its 1/8-inch NPT male process connection and compact 0.2 lb design, this switch is ideal for various industrial applications. The unit boasts an impressive service life exceeding 1,000,000 load cycles and maintains a hysteresis of less than 10% of the setpoint. Built to withstand demanding environments, it carries an IP69 rating for superior protection. The switch point can be adjusted in the field or preset at the factory, offering flexibility for different operational needs. Its brass housing and wetted materials ensure durability, while the silver-plated contacts provide reliable switching performance.
