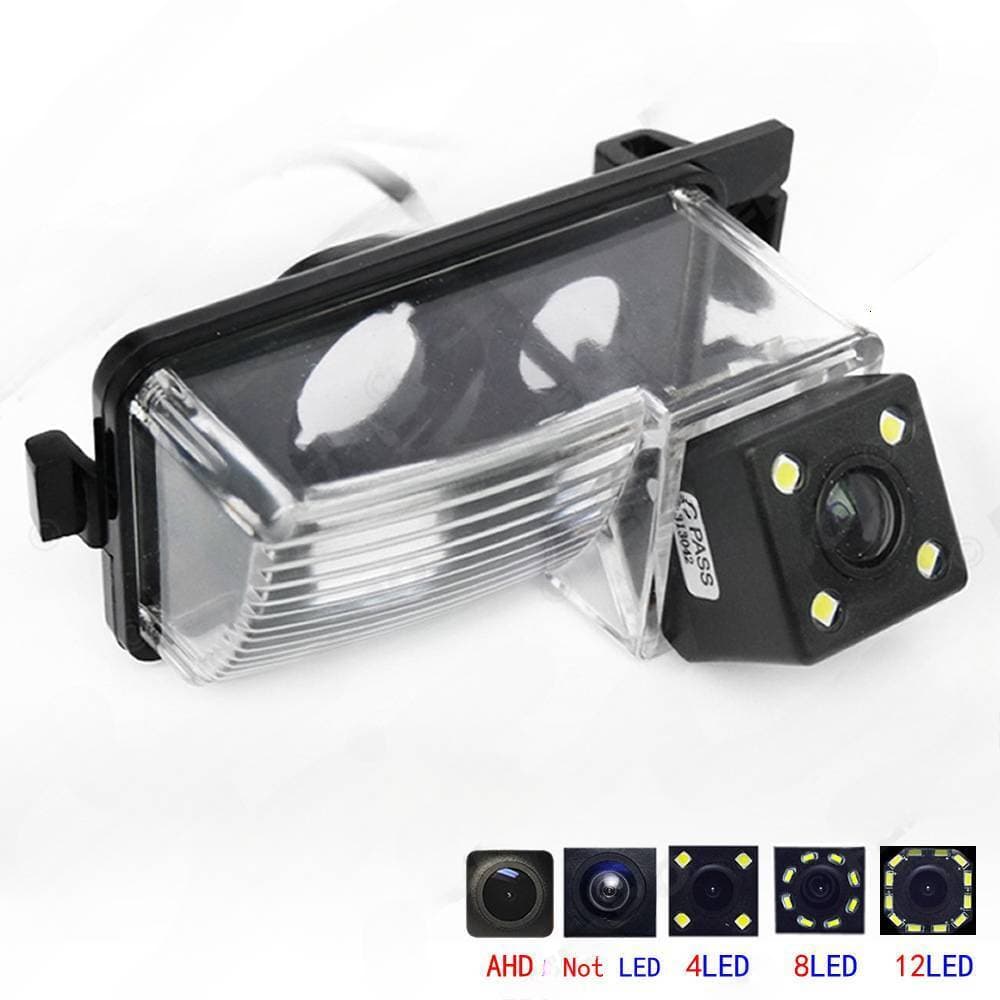

Nissan Tiida / Liwei / Junyi / GTR / Versa / Versa HB AHD Rear Reverse Camera — No LED / 4LED / 8LE / 12LED Options

Compatible with Nissan Tiida / Liwei / Junyi / GTR / Versa / Versa HB, this AHD rear reverse camera is built for reliable parking assistance. It uses a 1/4 inch CMOS PC7070 image sensor paired with a 100% glass lens to deliver 640 * 480 effective pixels and a horizontal resolution of 480TV cable. The viewing angles are 170 degrees diagonal, 138 degrees horizontal and 125 degrees vertical, and night vision is supported. Available configurations: AHD / without LED light / 4LED / 8LE / 12LED. Parking guide lines are supported. The camera outputs a mirror image; there is no wire switch and no mirror/original switch. Video format is NTSC with CVBS RCA connector output (1.0VP-P, 70OHM). Minimum illumination is 0.01 Lux / F = 1.2 (0 Lux and IR open). Power requirements are DC12V with a power consumption of 120mA. Operating temperature range: -20 ℃ -75 ℃, RH 95% MAX; storage temperature range: -40 ℃ -80 ℃, RH 95% MAX. Rated waterproof level: IP67 / IP68.
