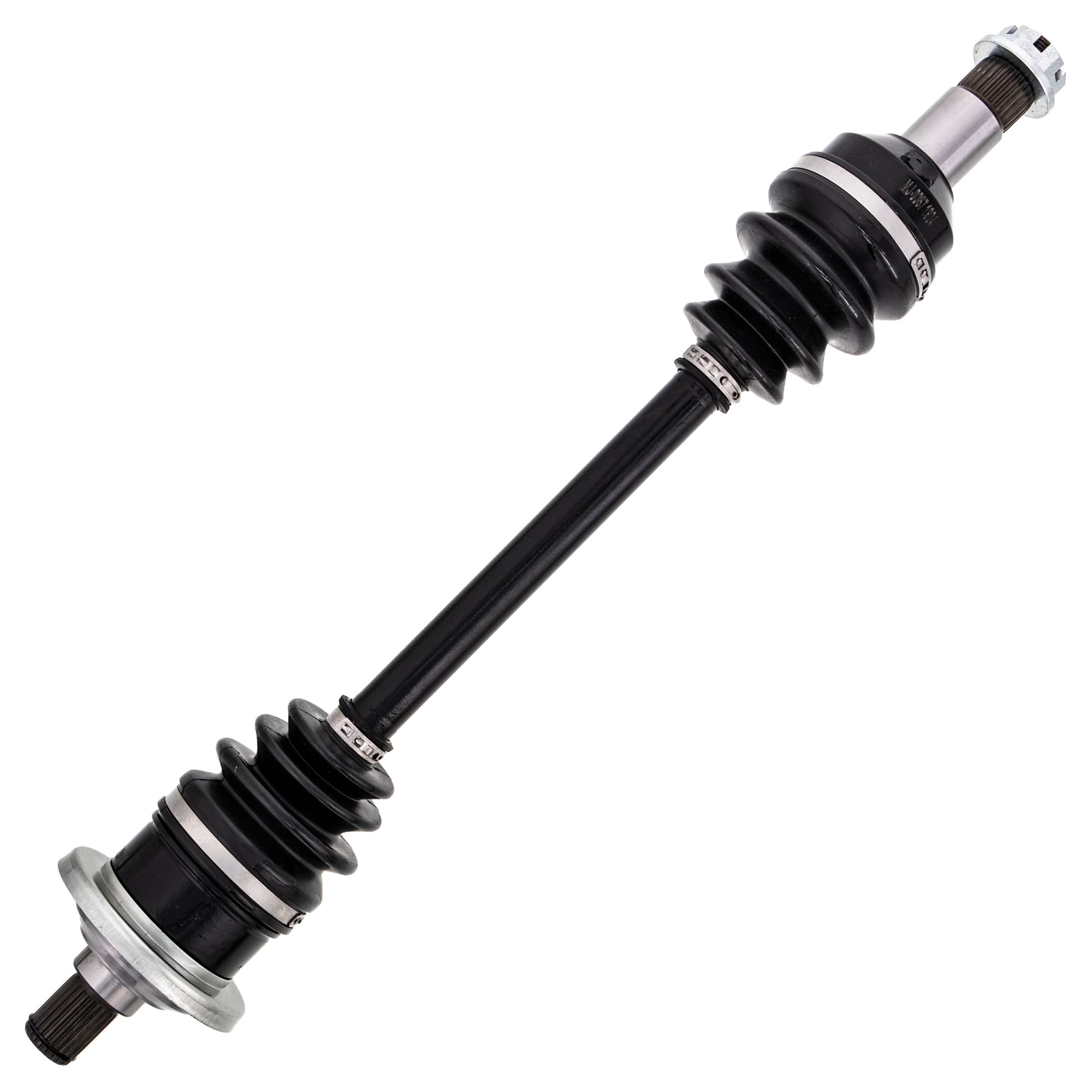

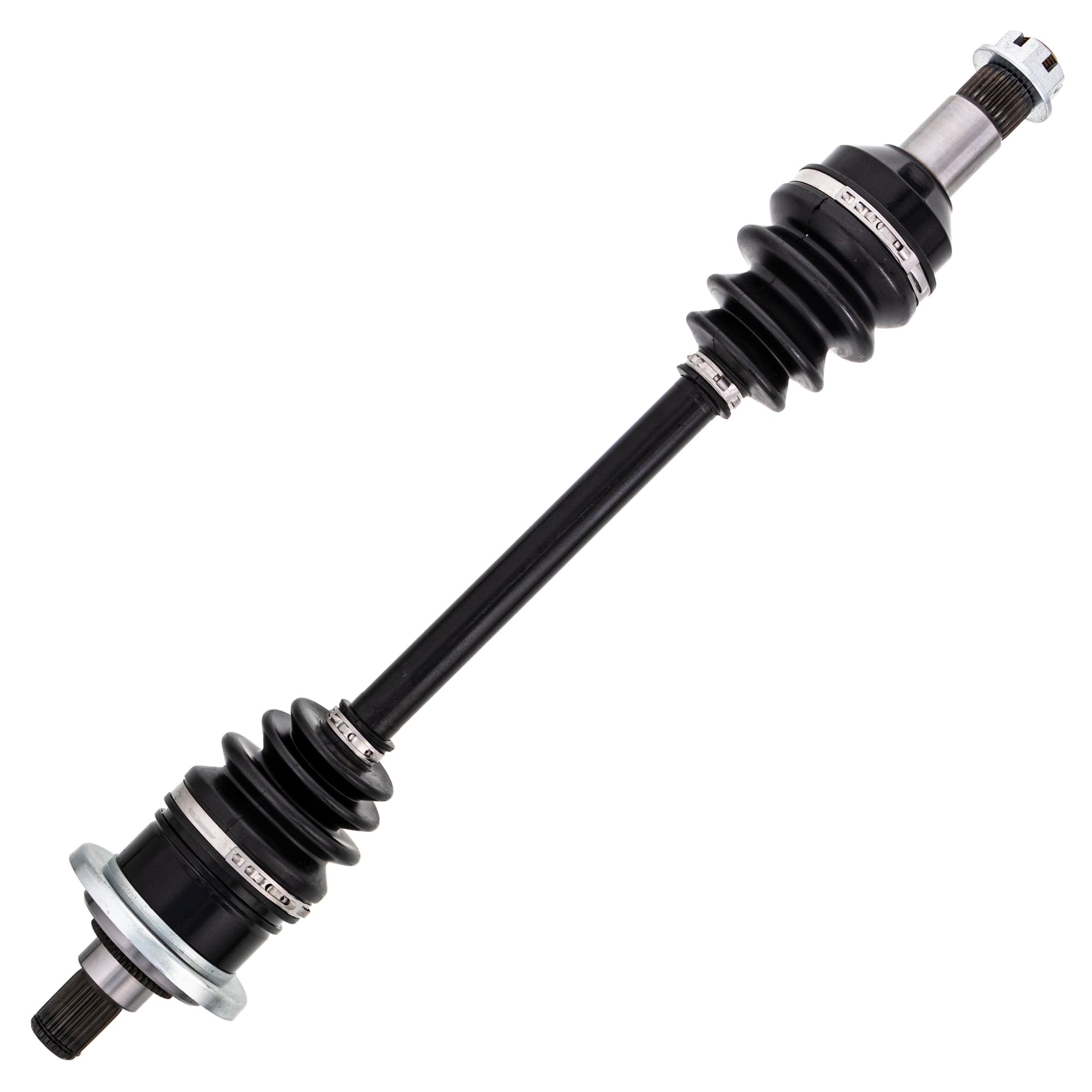

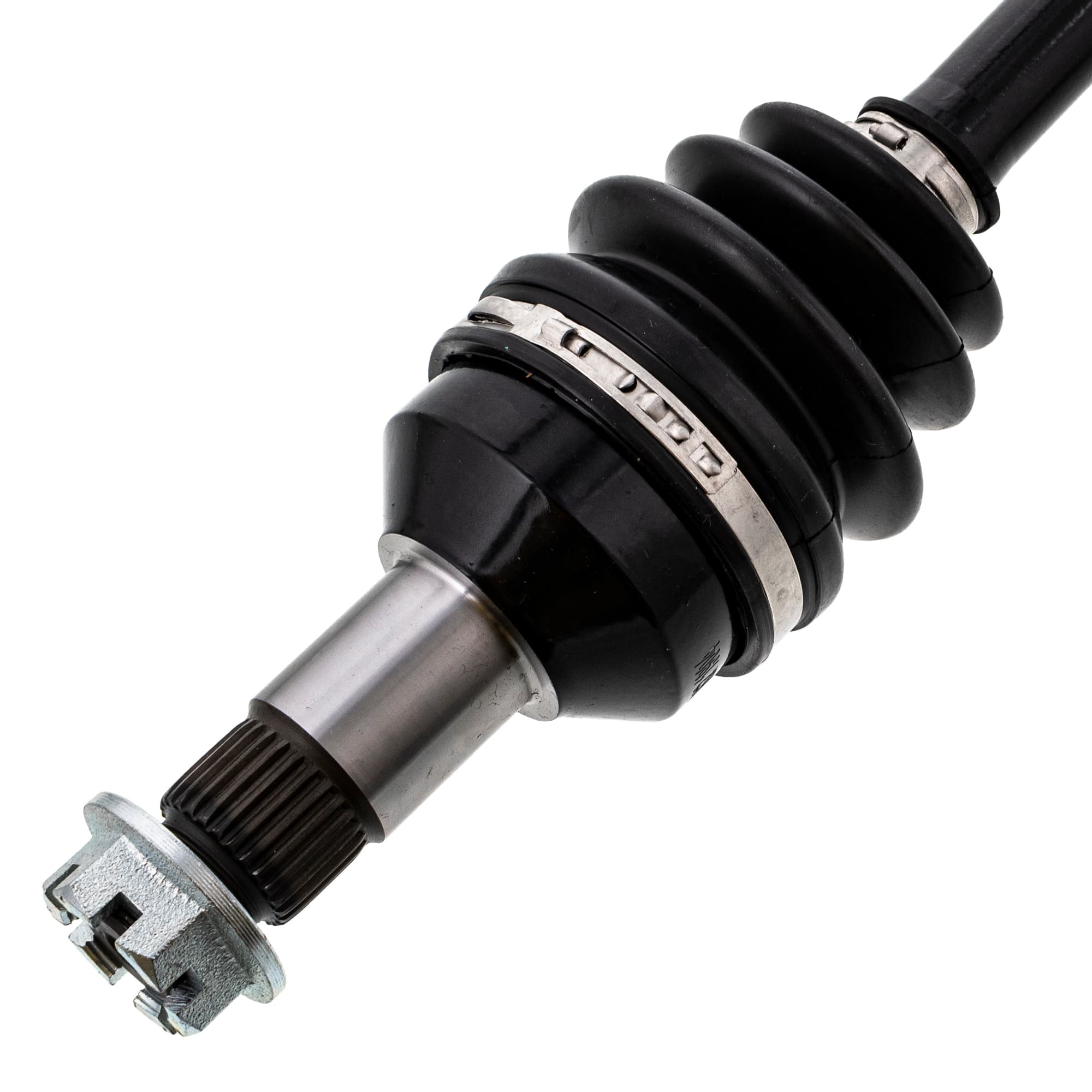

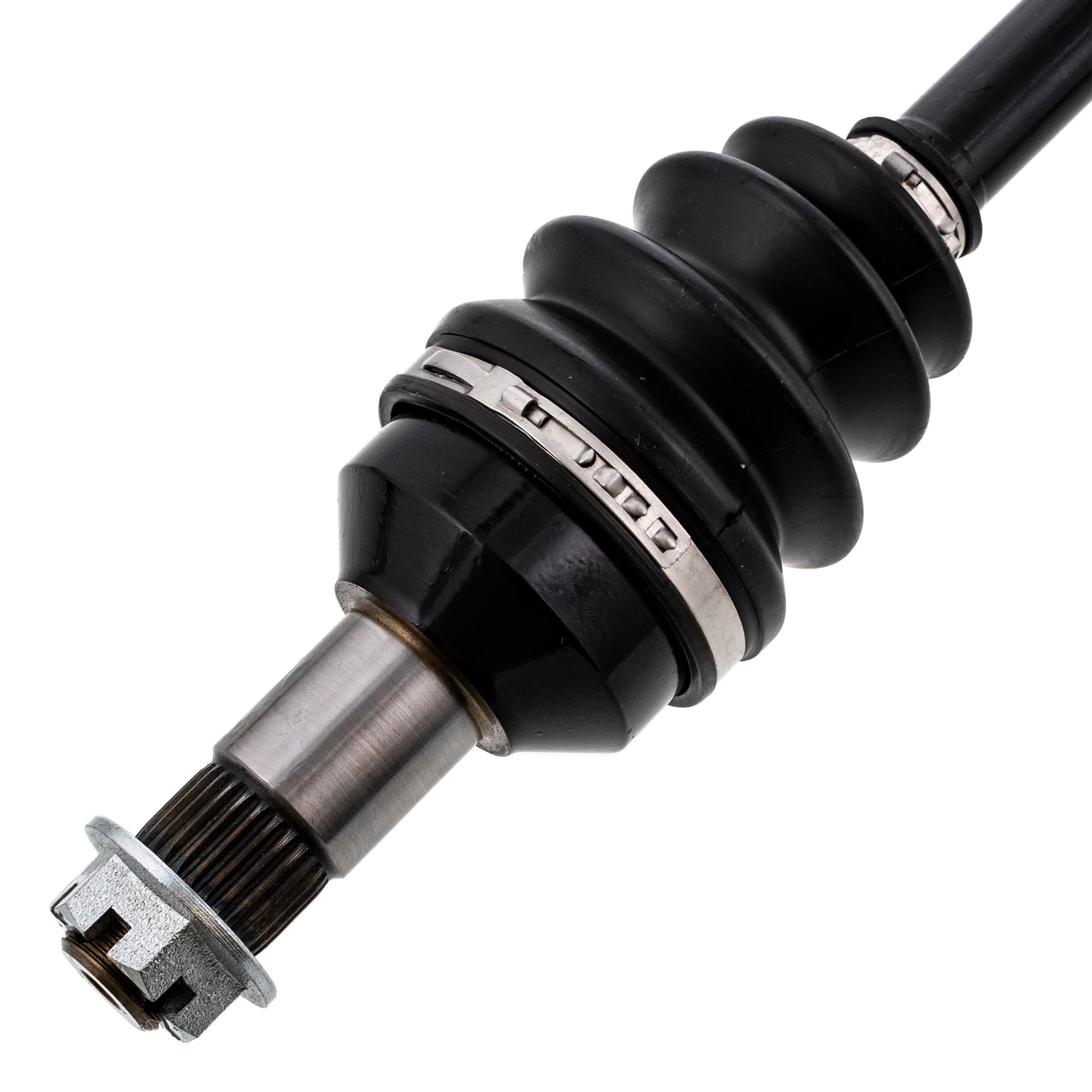

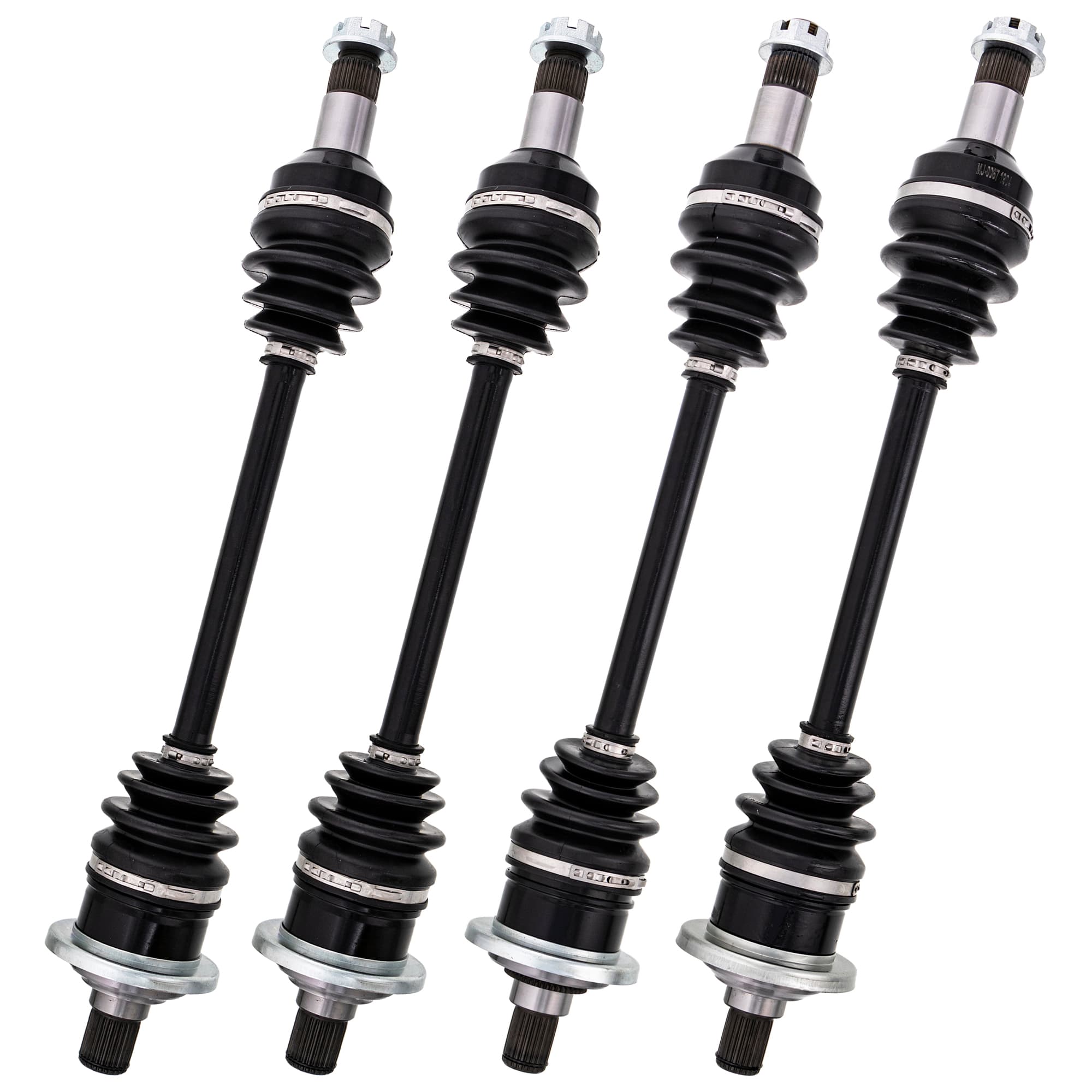

Niche Front Rear Complete Drive Shaft Axle Kit for Arctic Cat 400 ATV MK1001448

Front Right Axle Compatible with OEM Part Numbers Arctic Cat 1502-874; Front Left Compatible with OEM Part Numbers Arctic Cat 1502-873 Compatible with Arctic Cat 2006-2008 400, 2011-2012 450, 2006-2014 500, 2009-2014 550, 2006-2011 650, 2006-2014 700, 2009-2010 1000 Front Left Compressed Length 21 5/8, Inboard Splines 24T/45T, Inboard Spline Diameter 2 11/16, Outboard Splines 27T, Outboard Spline Diameter 2 9/16, Shaft Diameter 7/8, Thread Measurement M22x1.5 Front Right Compressed Length 21 9/16, Inboard Splines 24T, Inboard Spline Diameter 2 11/16, Outboard Splines 27T, Outboard Spline Diameter 2 9/16, Shaft Diameter 7/8, Thread Measurement M18x1.5 Rear Compressed Length 21 11/16, Inboard Splines 27T, Inboard Spline Diameter 2 11/16, Outboard Splines 27T, Outboard Spline Diameter 2 9/16, Shaft Diameter 13/16, Thread Measurement M22x1.5
