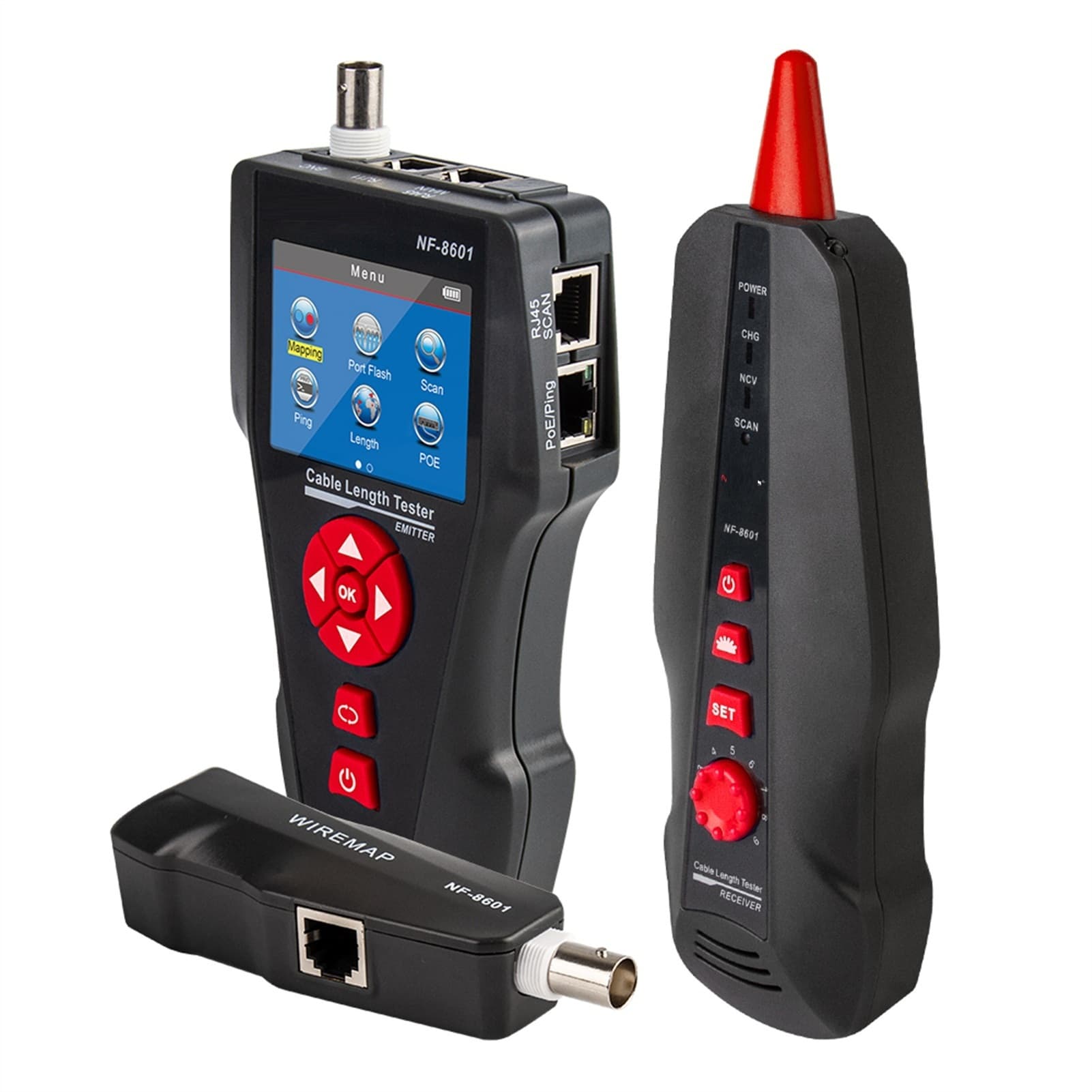

NF-8601 New Design POE PING LCD Cable Length Test For RJ11 RJ45 BNC Network Cat 7 Cable Tester Wire Check ,Fast Responses

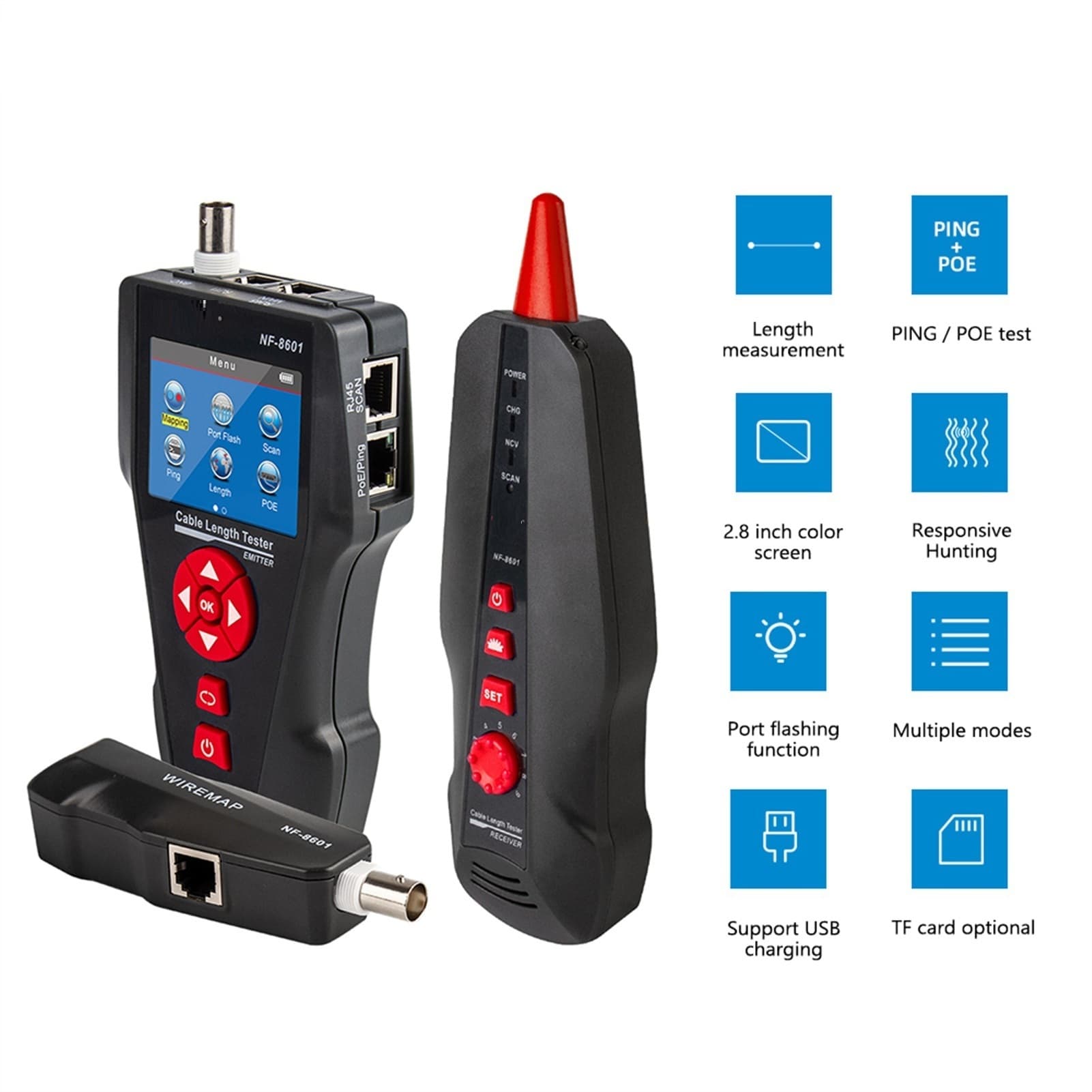

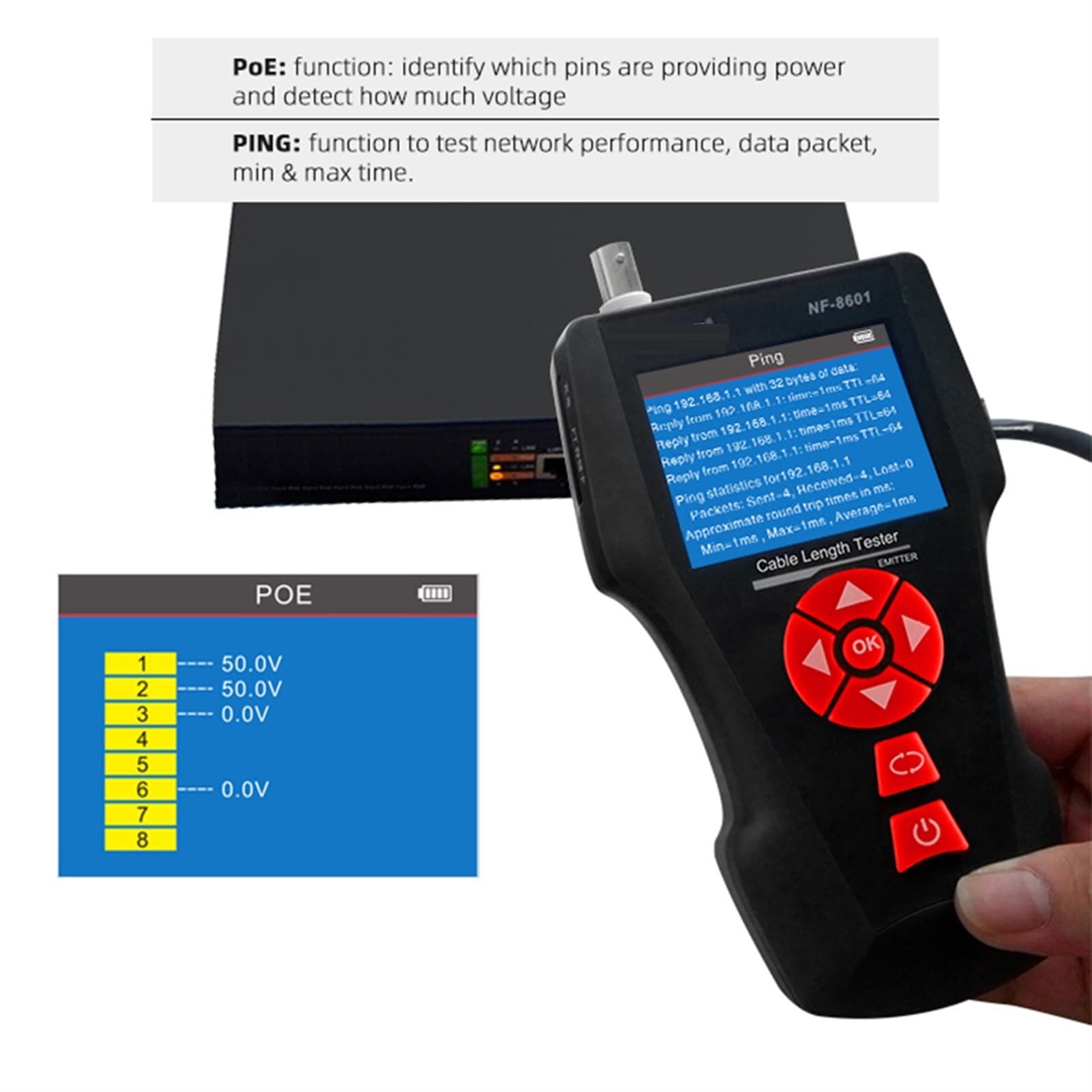

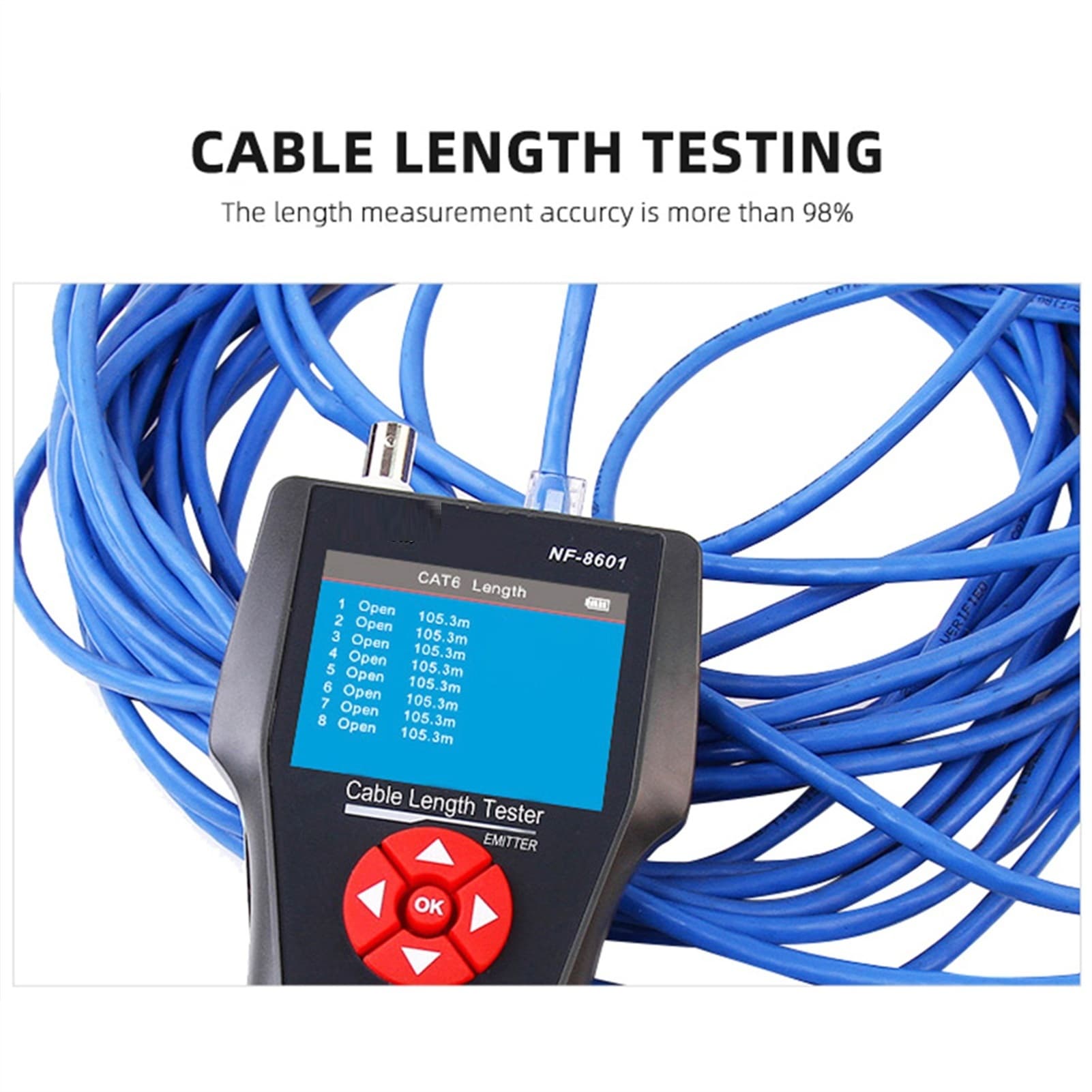

Functions 1. PoE / PING testing. 2. Trace targeted cable among lots of unknown cables ; 3. Port flash function help trace lan cable connected to swticher or router visually, no need of receiver. 4. Capable of scanning cable on PoE switch without damaging the device. 5. Locate faults for RJ11/RJ45/BNC Cable; 6. measure cable length accurately 7. Voltage detecting function. 8. Memory and storage function, export or upload the data from PC. 9. Lithium battery and color screen. Benefits 1. Big LCD color screen 320*240 2. Function of storage and memory 3. Currency detection and lighting lamp 4. Automatic delay power on-off 5.Low voltge alarm function 6. Lithium battery for more efficient work Specification: Technical indexes: NF-8601 Transmitter specifications Indictor LCD 320x240 mm, with backlight Cable test types STP/UTP 5E,6E network , telephone , coaxial cable. Max. distance of wiremap 2000 m Max. distance of tracing 2000m Max. distance of cable length 1000 m Min. distance of calibration 10 m Accuracy 3% ( after calibration ) Compatible connectors RJ11,RJ45, BNC, PING/POE Cable map indication LCD (#1-#8) Battery Type 3.7V lithium battery 1800mAh Work temperature / humidity 10 ~ -60 / 0~70 Dimension(LxWxD) 173x92x34mm NF-8601 Receiver specifications Cable RJ11,RJ45, BNC Types of cable 2 cores Battery Type 3.7V lithium battery 1800mAh Dimension(LxWxD) 183x58x35 mm NF-8601 Remote unit specifications Compatible connectors RJ11,RJ45, BNC Dimension(LxWxD) 106x32x30mm Accessories Included: Built-in Lithium battery x 2 sets telephone line adapter x 1 set network cable adapter x 1 set Cable clips x 1 set Related Products: network cable tester,cable tester,ethernet tester,network & cable testers,ethernet cable tester,ethernet testers,ethernet wire tracer,fiber tester,coax cable tester,cable tracer,network tool kit,network tools,ethernet tester tool,poe tester
