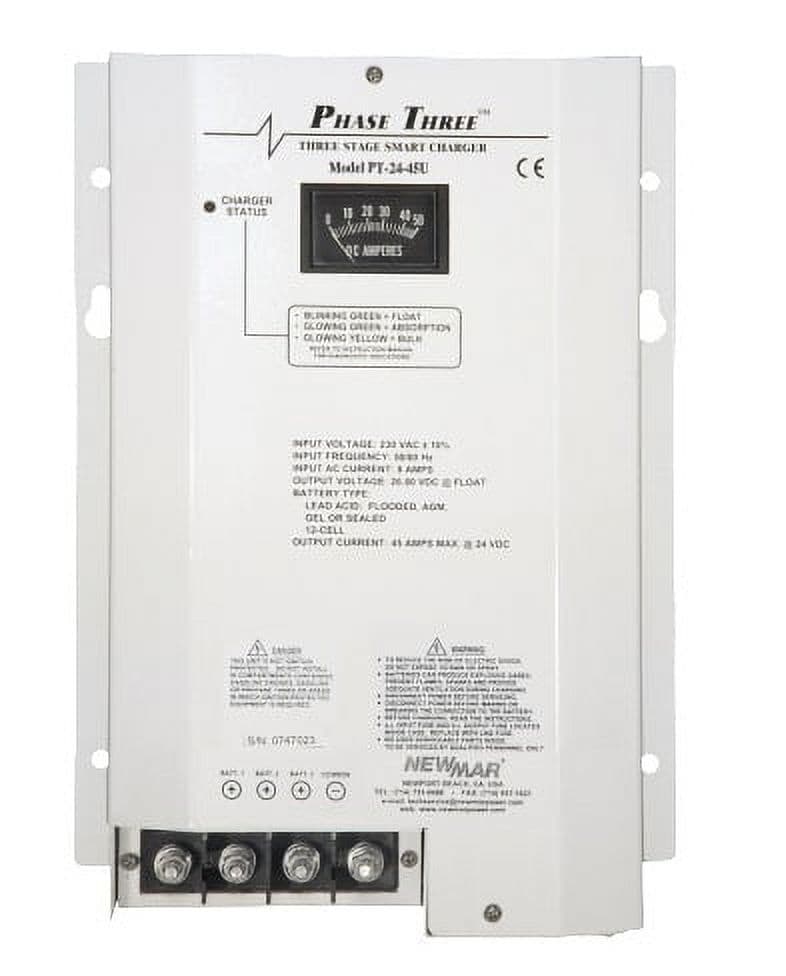

Newmar PT2445U Batt Chgr Phase 3 24v 45a 3 Bank

Three Stage "Smart" Chargers Phase Three "Smart" battery charging technology is now available in a wide range of power levels, allowing you to select the right size, features and flexibility you require for virtually any application from small recreational craft to large live-aboards, workboats and other commercial vessels. These chargers interact with batteries to put them through the optimum three stage charge process which provides for fastest recovery and ideal conditioning, maximizing battery performance and extending battery life. A selector switch adjusts output voltage to adapt for gel-cell/flooded lead-acid/AGM battery types. An optional temperature compensation sensor also adjusts output for ideal voltage based on changes in the batteries' ambient temperature. All models are housed in a rugged stainless steel case with a durable white powder coat finish, and the internal circuitry is polyurethane coated for maximum corrosion resistance. Features class="wtul"> "Smart" circuitry provides three stage charging bulk, absorption, float. Wide model range covers battery system ratings from 14-950 amp-hours Gel-Cell/Flooded Lead-acid/AGM battery type switch selects optimum charge/float voltages. Multiple isolated output banks; ammeter indicates total output current. (except PT-7) Optional sensor adjusts output voltage based on battery temperature. (except PT-7) Current limiting-prevents damage from overloading. Charger status clearly displayed with L.E.D. and/or audible indicators or optional remote panel. Use as a power supply; can power loads without a battery in line. Built to last rugged stainless steel case with a durable white powder coat finish with an optional drip shield and marinized internal circuitry. Numerous Safety and EMC CompliancesTwo year parts and labor warranty Models width="355" border="1" cellspacing="0" cellpadding="3"> 12 Volt 24 Volt 32 Volt PT-7 PT-24-8W PT-32-25W PT-14W PT-24-13W PT-25W PT-24-20U PT-40U PT-24-45U PT-80 PT-24-60W PT-24-95U Detailed specifications below. Specifications border="1" cellspacing="0" cellpadding="3"> 12 Volt Models PT-7 PT-14W PT-25W PT-40W PT-80 Input VAC (50-60 Hz.) 88-132 or 176-264 85-264 90-132 or 180-264 85-135 or 170-270 90-264 Input Amps @ Full Load @ 115 VAC 2 2.8 6.5 8.5 12 @ 230 VAC 1 1.4 4 4.3 7 P.F. Rating >.65 .93@230V .98@115V .7 .7 .95@230V .98@115V Max Output Amps 7 14 25 40 80 Output Banks 2 3 3 3 3 Battery Capacity (Amp-Hours) 14-70 28-140 50-250 80-400 160-800 Operating Temp. Rating Reference T-1 T-2 T-4 T-5 T-7 Case Size Ref. A-1 A-2 A-2 A-3 A-5 Weight; Lbs./Kg. 3.2/1.5 8/4 8.2/4 12/6 15.2/7 Optional Temp.Sensor Model N/A TCS-12/24 TCS-12/24 TCS-12/24 TCS-12/24 Remote Panel Model N/A RP RP RP RP Equalize Option No Yes Yes Yes Yes Output Indicator Ref. M-1 M-3 M-3 M-3 M-3 Compliance Ref. CG, CE CG, CE CG CG, CE CE border="1" cellspacing="0" cellpadding="3"> 24 Volt Models PT-24-8W PT-24-13W PT-24-20U PT-24-45U PT-24-60W PT-24-95U Input VAC (50-60 Hz.) 85-264 90-132 or 180-264 85-135 or 170-270 90-264 207-253 90-264 Input Amps @ Full Load @ 115 VAC 2.8 6.5 8.5 12 NA 26 @ 230 VAC 1.4 4 4.3 7 13 14 P.F. Rating .93@230V .98@115V .7 .7 .95@230V .98@115V .7 .95@230V .98@115V Max Output Amps 8 13 20 45 60 95 Output Banks 3 3 3 3 3 3 Battery Capacity (Amp-Hours) 16-80 26-130 40-200 90-450 120-600 180-950 Operating Temp. Rating Reference T-2 T-3 T-5 T-8 T-6 T-8 Case Size Ref. A-2 A-2 A-3 A-5 A-6 A-6 Weight; Lbs./Kg. 8/4 8.2/4 12/6 12.2/6 24.1/11 24.5/11 Optional Temp.Sensor Model TCS-12/24 TCS-12/24 TCS-12/24 TCS-12/24 TP TCS-12/24 Remote Panel Model RP RP RP RP N/A RP Equalize Option Yes Yes Yes Yes No Yes Output Indicator Ref. M-3 M-3 M-3 M-3 M-2 M-3 Compliance Ref. CG, CE CG
