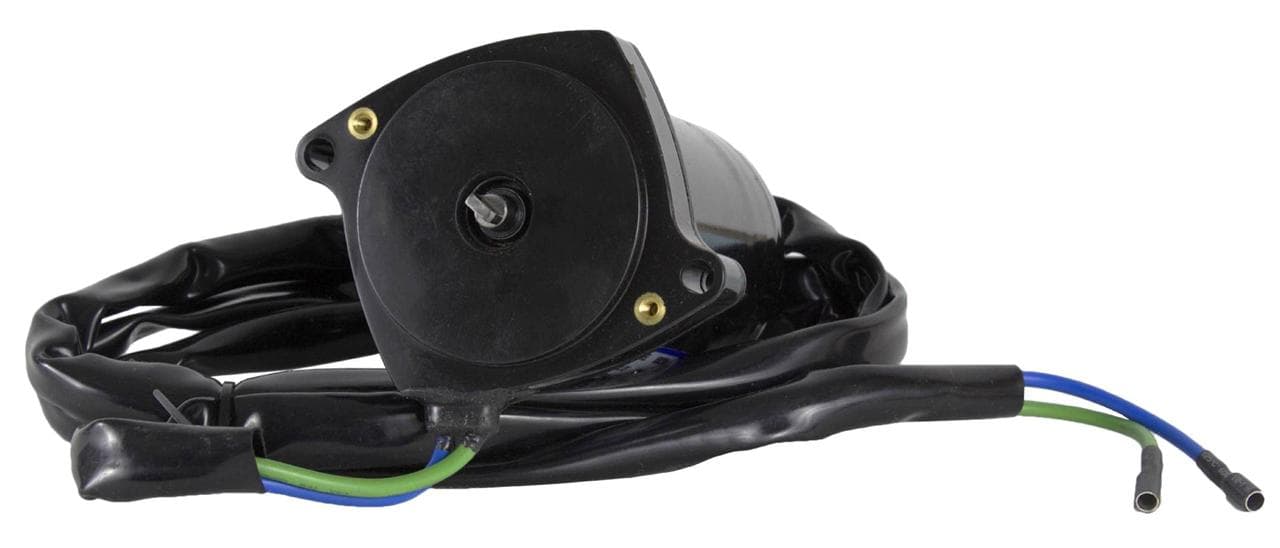

Rareelectrical Other trim motor sku-125104859 686696002421

Rareelectrical tilt/trim motor in the Other color category, SKU sku-125104859, UPC 686696002421. Listed as Replacement Auto Parts compatible with Man, Mercury, Ram and Sierra Marine, including various Mercury Marine tilt and trim models from 1993-1995. Cross-references: API Marine PT485NM, Arco Marine 6279, Mercury Marine 811628 and Sierra Marine 18-6774. Check the OEM part number on the original unit to help confirm fit. This is a new aftermarket motor with 12 Volts and reversible rotation. Field housing OD: 78.1Mm / 3.075In; overall length: 138.4Mm / 5.449In; shaft OD: 7.4Mm / 0.291In. Shaft note: blade. Terminal 1, terminal 2 and terminal 3 each have a 1/4" ring terminal. For 3-Ram, 2-Wire trim units and aft-fill reservoirs. Approximate weight: 5.95 Lbs / 2.70 Kg. Includes a one-year manufacturer's warranty.You may also like Rareelectrical Other Transmission Sensor sku-18649261123.
