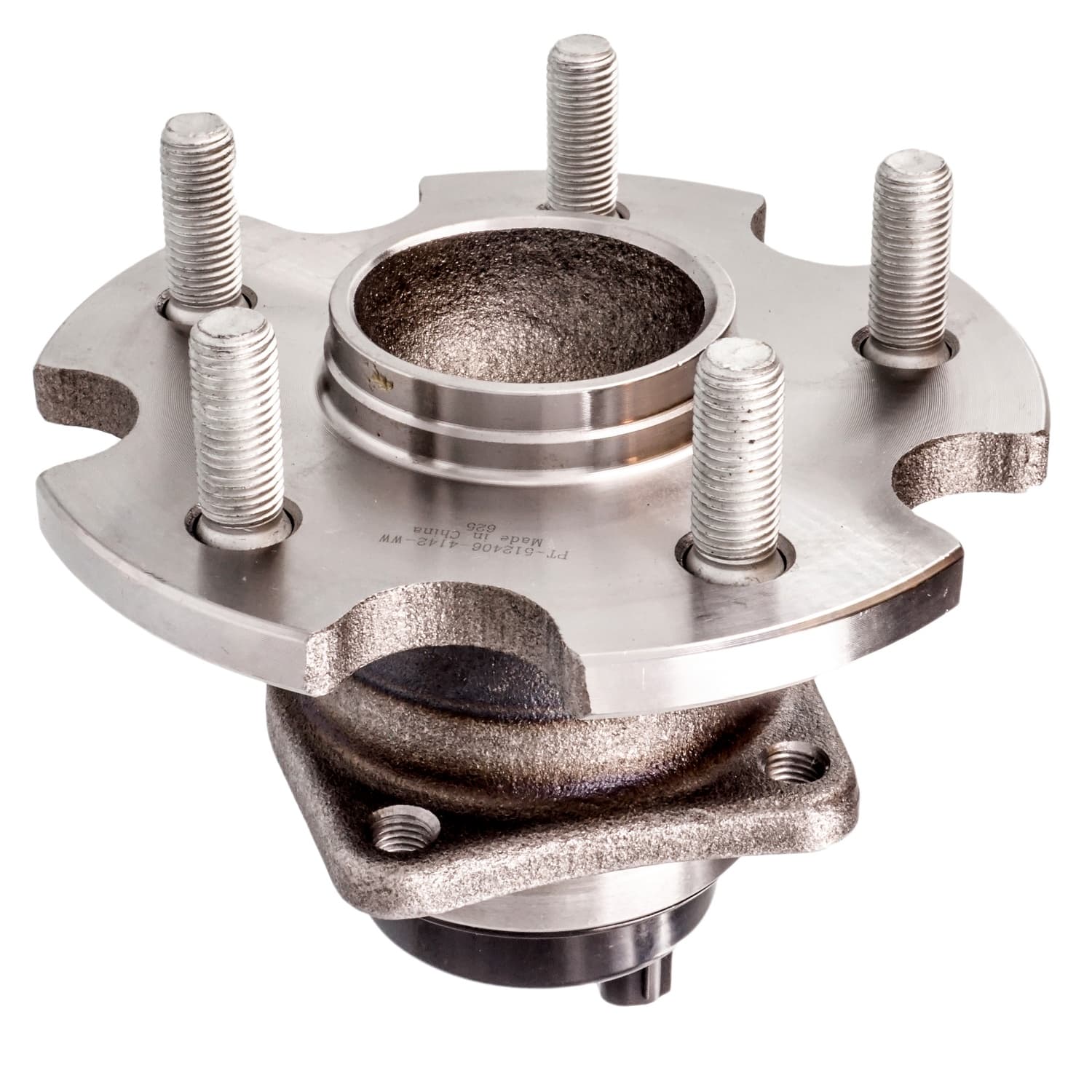

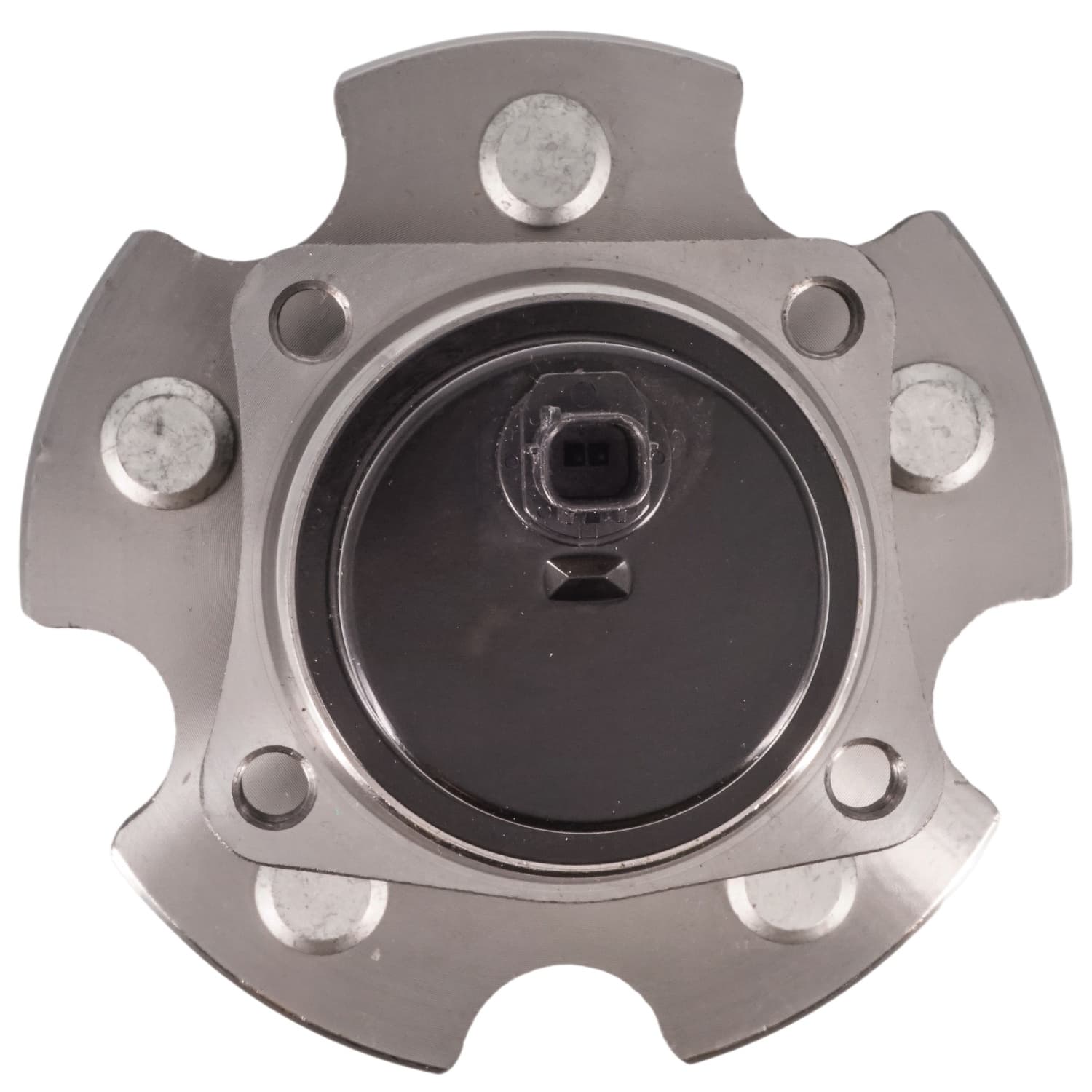

New Hub Assembly Compatible With Toyota Matrix 2009 2010 2011 2012 By Part Numbers PT512406 BR930714 HA590310

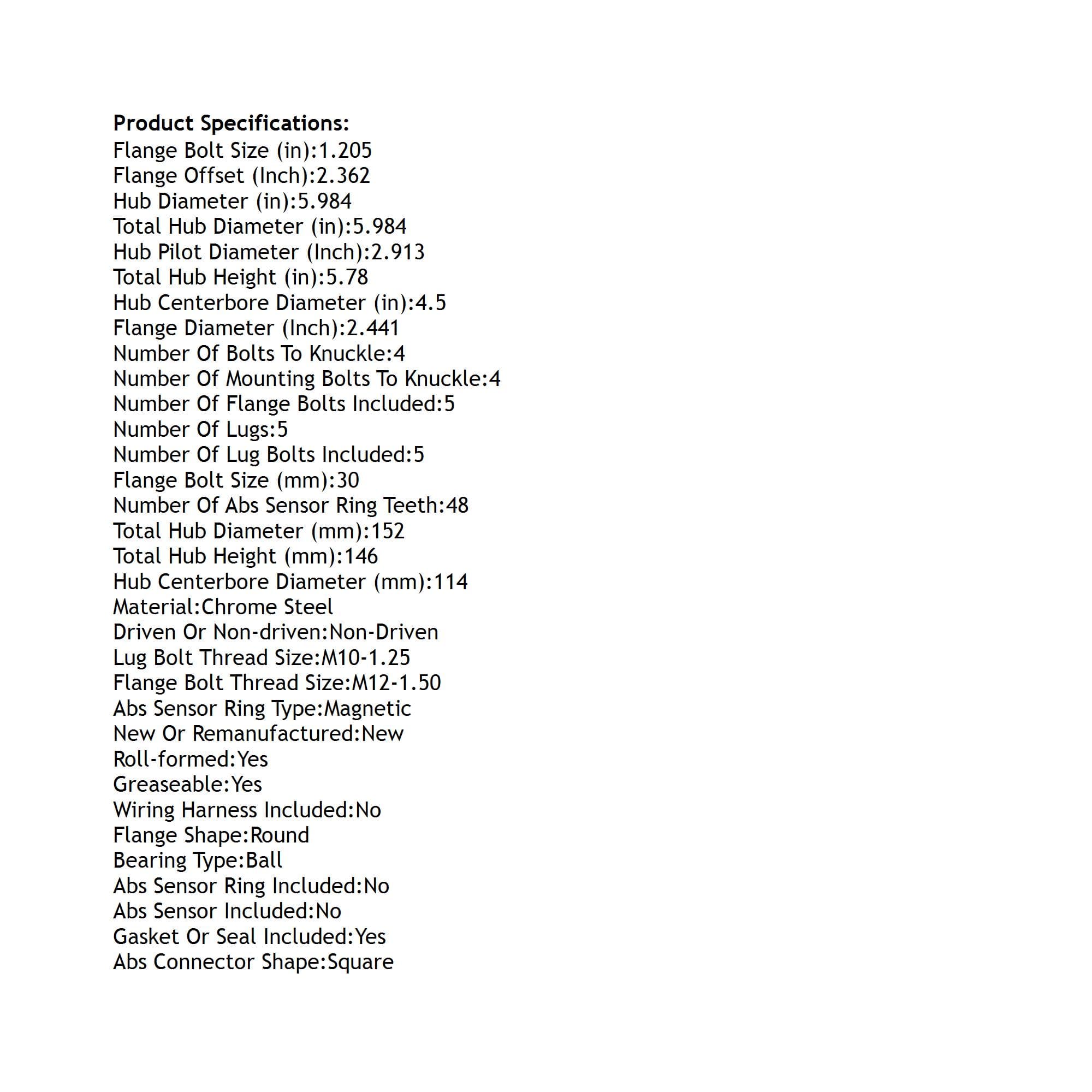

Rareelectrical Compatible With Toyota,Matrix This Item Fits Various Applications By Part Number. Please Check Your Part Number To Ensure Fitment. Product Type: Hub Assembly Specifications: Abs Connector Shape: Square Abs Sensor Included: No Abs Sensor Ring Included: No Abs Sensor Ring Type: Magnetic Bearing Type: Ball Driven Or Non-Driven: Non-Driven Flange Bolt Size (In): 1.205 Flange Bolt Size (Mm): 30 Flange Bolt Thread Size: M12-1.50 Flange Diameter (Inch): 2.441 Flange Offset (Inch): 2.362 Flange Shape: Round Gasket Or Seal Included: Yes Greaseable: Yes Hub Centerbore Diameter (In): 4.5 Hub Centerbore Diameter (Mm): 114 Hub Diameter (In): 5.984 Hub Pilot Diameter (Inch): 2.913 Lug Bolt Thread Size: M10-1.25 Material: Chrome Steel New Or Remanufactured: New Number Of Abs Sensor Ring Teeth: 48 Number Of Bolts To Knuckle: 4 Number Of Flange Bolts Included: 5 Number Of Lug Bolts Included: 5 Number Of Lugs: 5 Number Of Mounting Bolts To Knuckle: 4 Roll-Formed: Yes Total Hub Diameter (In): 5.984 Total Hub Diameter (Mm): 152 Total Hub Height (In): 5.78 Total Hub Height (Mm): 146 Wiring Harness Included: No Replaces: Acdelco: Rw20-115 Autopart International: 1411-425149 Centric Parts: 40744016 General Motors: 19184270 Gsp: 693406 Mevotech: H512406 Moog Hub Assemblies: 512406 Napa: Pbr930714 Applications: Toyota Matrix (2009-2012) Source: Aftermarket One Year Manufacturer's Warranty.
