Rareelectrical Honda Fit Hub sku-14897913954 466421082320

Rareelectrical hub assembly for Honda Fit (2013-2014), listed under Engine & Powertrain Replacement Parts. Check the part number for fitment. This is a new, aftermarket, non-driven assembly with a ball bearing, round flange and chrome steel construction. The listed ABS sensor ring type is magnetic, with 43 ring teeth specified, but no ABS sensor ring is included.

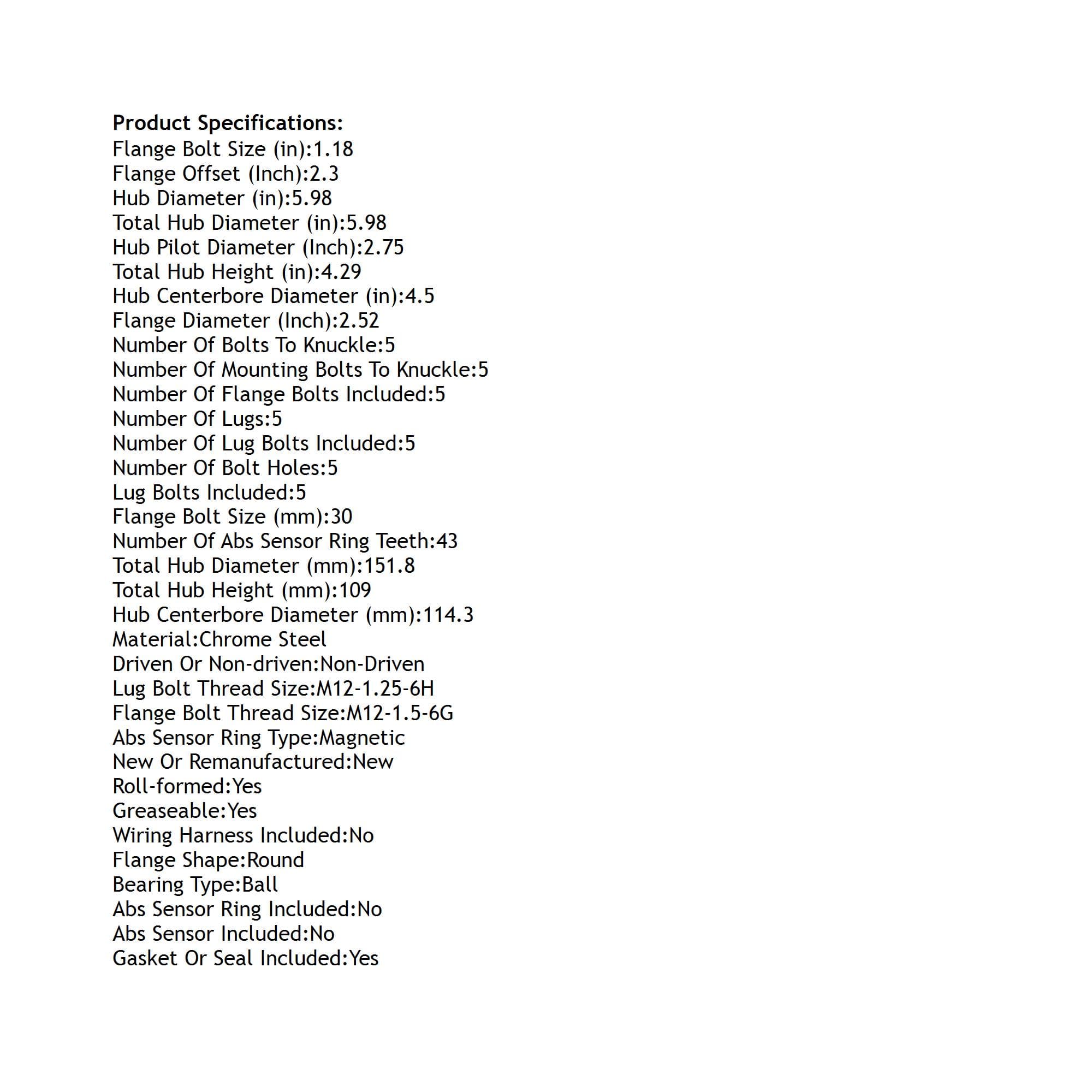

It has no ABS sensor or wiring harness. A gasket or seal is included; the assembly is greaseable and roll-formed. The flange bolt size is 1.18 in (30 mm), with an M12-1.5-6G thread. Flange diameter is 2.52 in and offset is 2.3 in. Hub centerbore diameter is 4.5 in (114.3 mm); hub diameter and total hub diameter are 5.98 in, or 151.8 mm total. Hub pilot diameter is 2.75 in.

The 5 included lug bolts have M12-1.25-6H threads. There are 5 bolt holes, 5 lugs, 5 flange bolts and 5 bolts or mounting bolts to the knuckle. Total hub height is 4.29 in (109 mm). Replacement references include Autopart International 1411-556368, BCA WE61440, Centric Parts 40640036E, Moog Hub Assemblies 512545 and NAPA PBR930843. It carries a one-year manufacturer's warranty.

SKU sku-14897913954; UPC 466421082320.
