New Hub Assembly Compatible With Ford F-150 F-150 Lightning 1997-2000 By Part Numbers PT515010 BR930318 SP550200

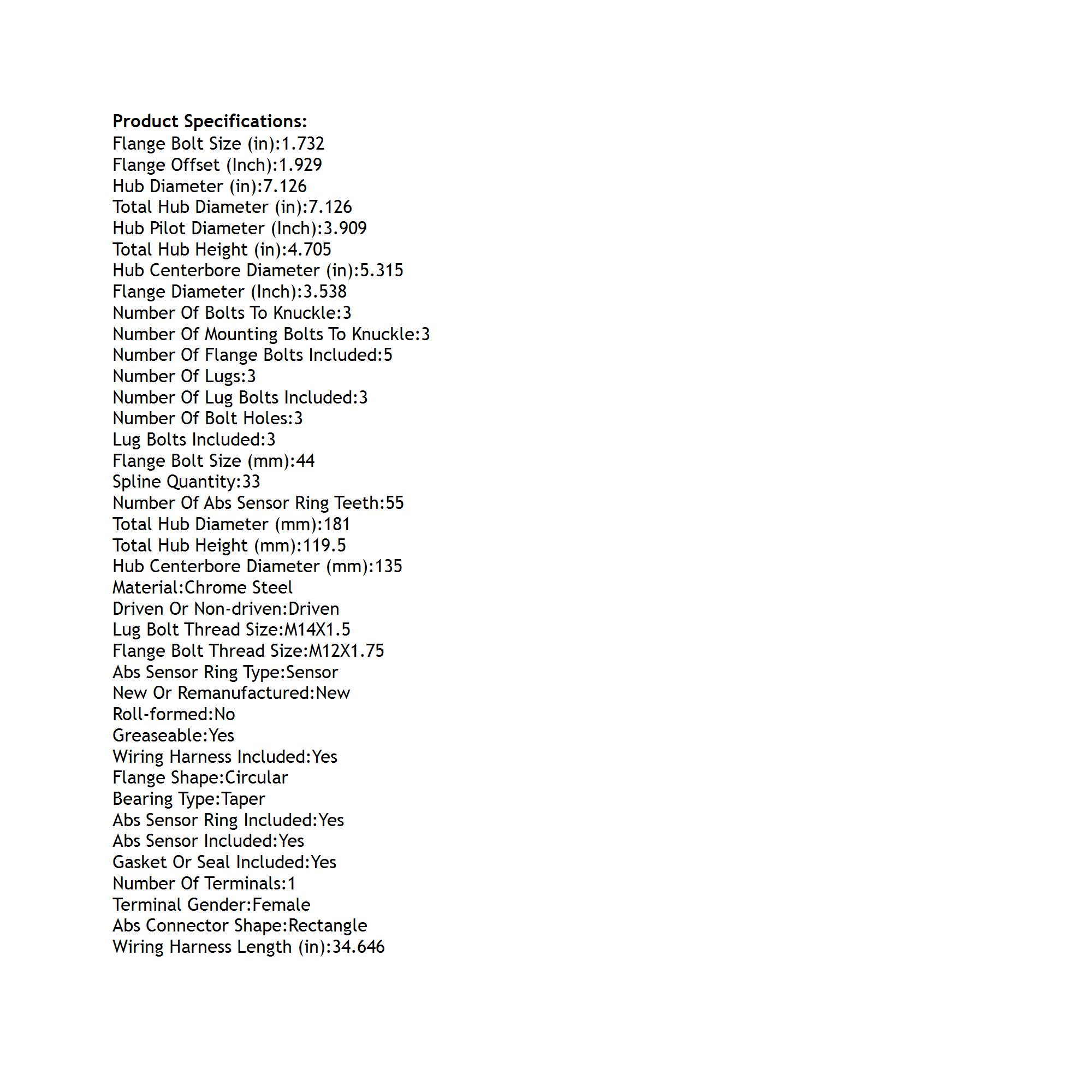

Rareelectrical Compatible With Ford,F-150,F-150 Lightning This Item Fits Various Applications By Part Number. Please Check Your Part Number To Ensure Fitment. Product Type: Hub Assembly Specifications: Abs Connector Shape: Rectangle Abs Sensor Included: Yes Abs Sensor Ring Included: Yes Abs Sensor Ring Type: Sensor Bearing Type: Taper Driven Or Non-Driven: Driven Flange Bolt Size (In): 1.732 Flange Bolt Size (Mm): 44 Flange Bolt Thread Size: M12x1.75 Flange Diameter (Inch): 3.538 Flange Offset (Inch): 1.929 Flange Shape: Circular Gasket Or Seal Included: Yes Greaseable: Yes Hub Centerbore Diameter (In): 5.315 Hub Centerbore Diameter (Mm): 135 Hub Diameter (In): 7.126 Hub Pilot Diameter (Inch): 3.909 Lug Bolt Thread Size: M14x1.5 Lug Bolts Included: 3 Material: Chrome Steel New Or Remanufactured: New Number Of Abs Sensor Ring Teeth: 55 Number Of Bolt Holes: 3 Number Of Bolts To Knuckle: 3 Number Of Flange Bolts Included: 5 Number Of Lug Bolts Included: 3 Number Of Lugs: 3 Number Of Mounting Bolts To Knuckle: 3 Number Of Terminals: 1 Roll-Formed: No Spline Quantity: 33 Terminal Gender: Female Total Hub Diameter (In): 7.126 Total Hub Diameter (Mm): 181 Total Hub Height (In): 4.705 Total Hub Height (Mm): 119.5 Wiring Harness Included: Yes Wiring Harness Length (In): 34.646 Replaces: Autopart International: 1411-45592 Bca: We60990 Centric Parts: 40265011 Fag Us: 101978 Gsp: 116010 Mevotech: H515010 Moog Hub Assemblies: 515010 Napa: Pbr930318 Applications: Ford F-150 (1997-2000) Ford F-150 Lightning (1999-2000) Source: Aftermarket One Year Manufacturer's Warranty.You may also like New Water Pump Compatible With Fiat Panda 2007 2008 By Part Numbers 1616 P1838 Pa5942 P1838 46526243 46805736 55184080 1302210 N302210 Qcp3422 Pa983A Vkpc82250 Us8945.
