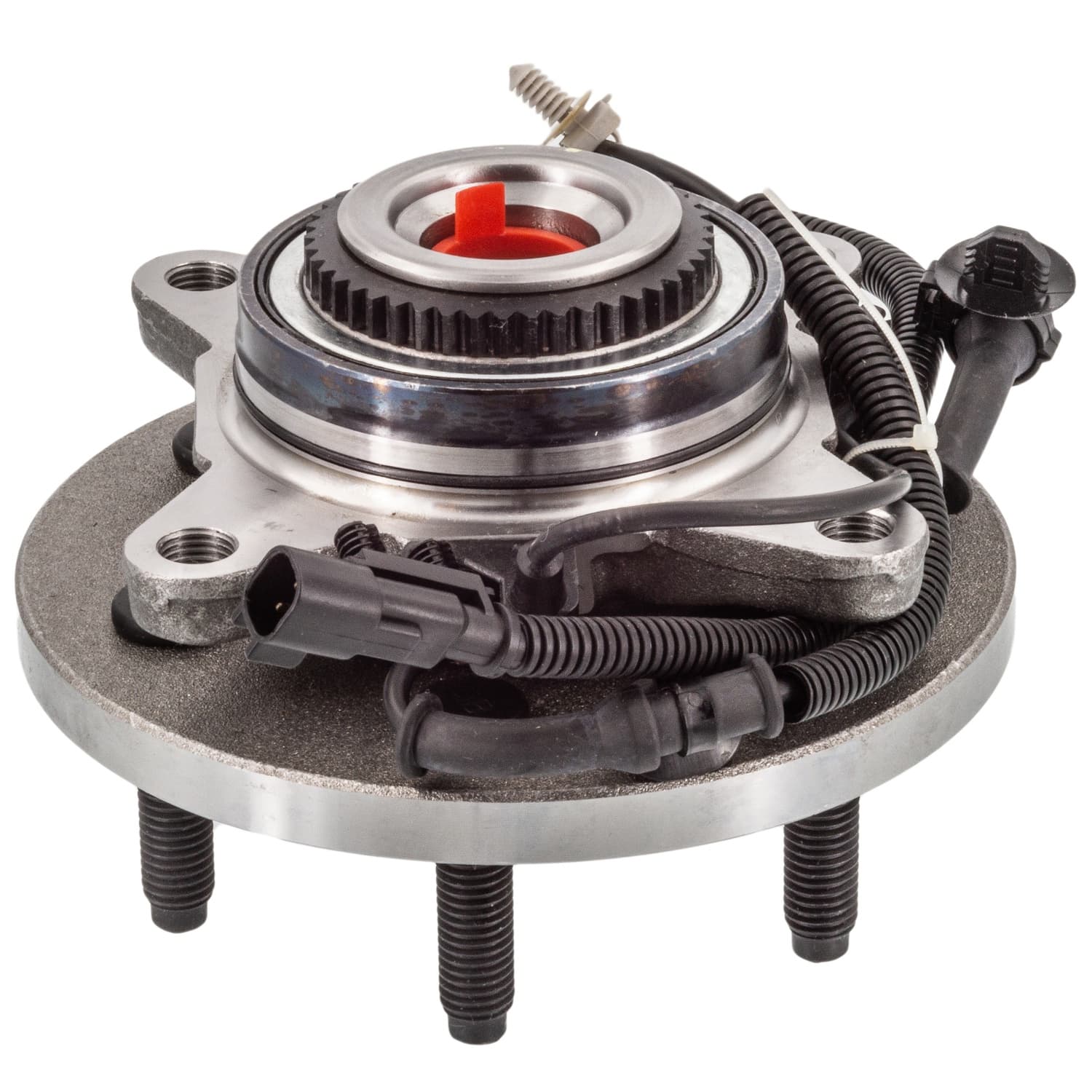

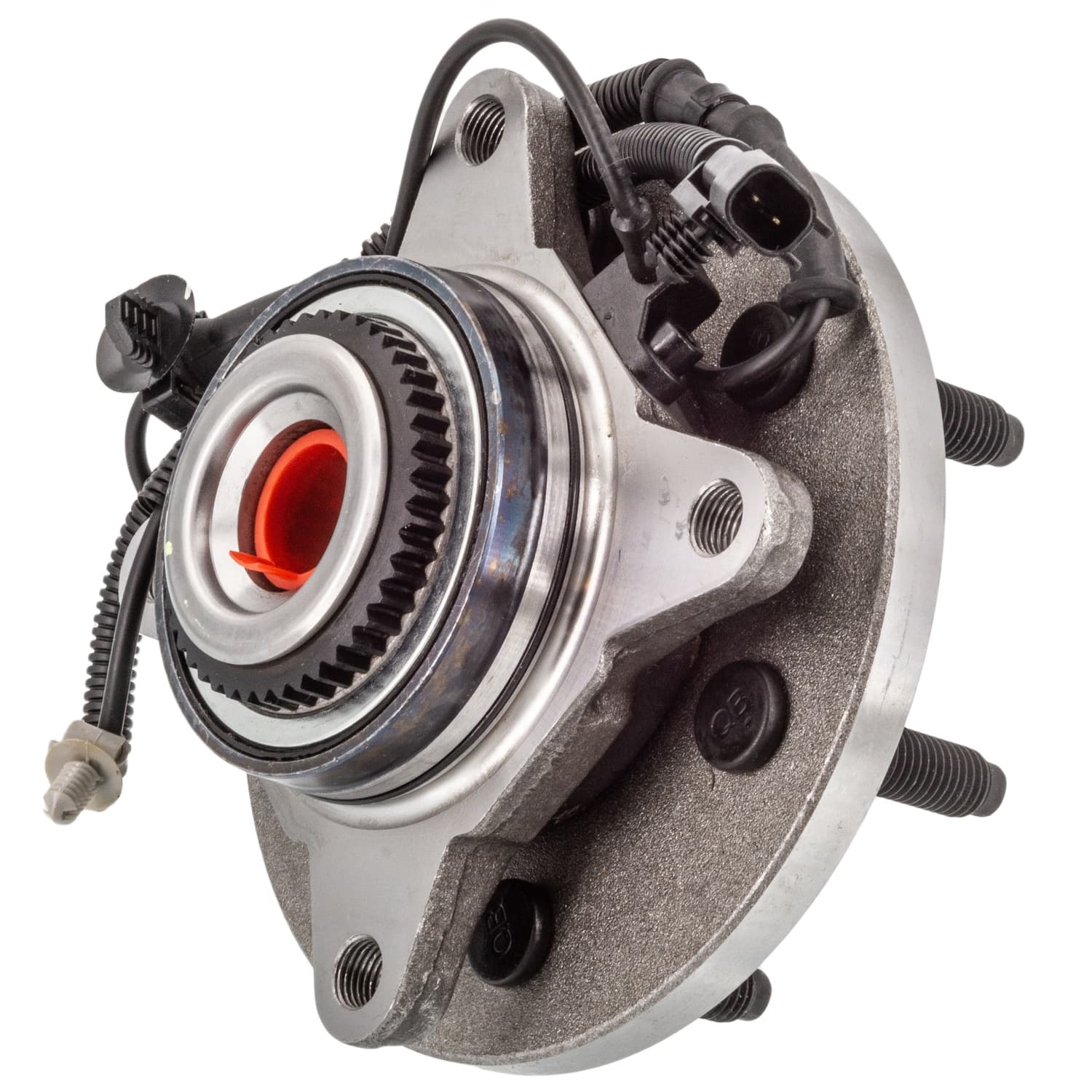

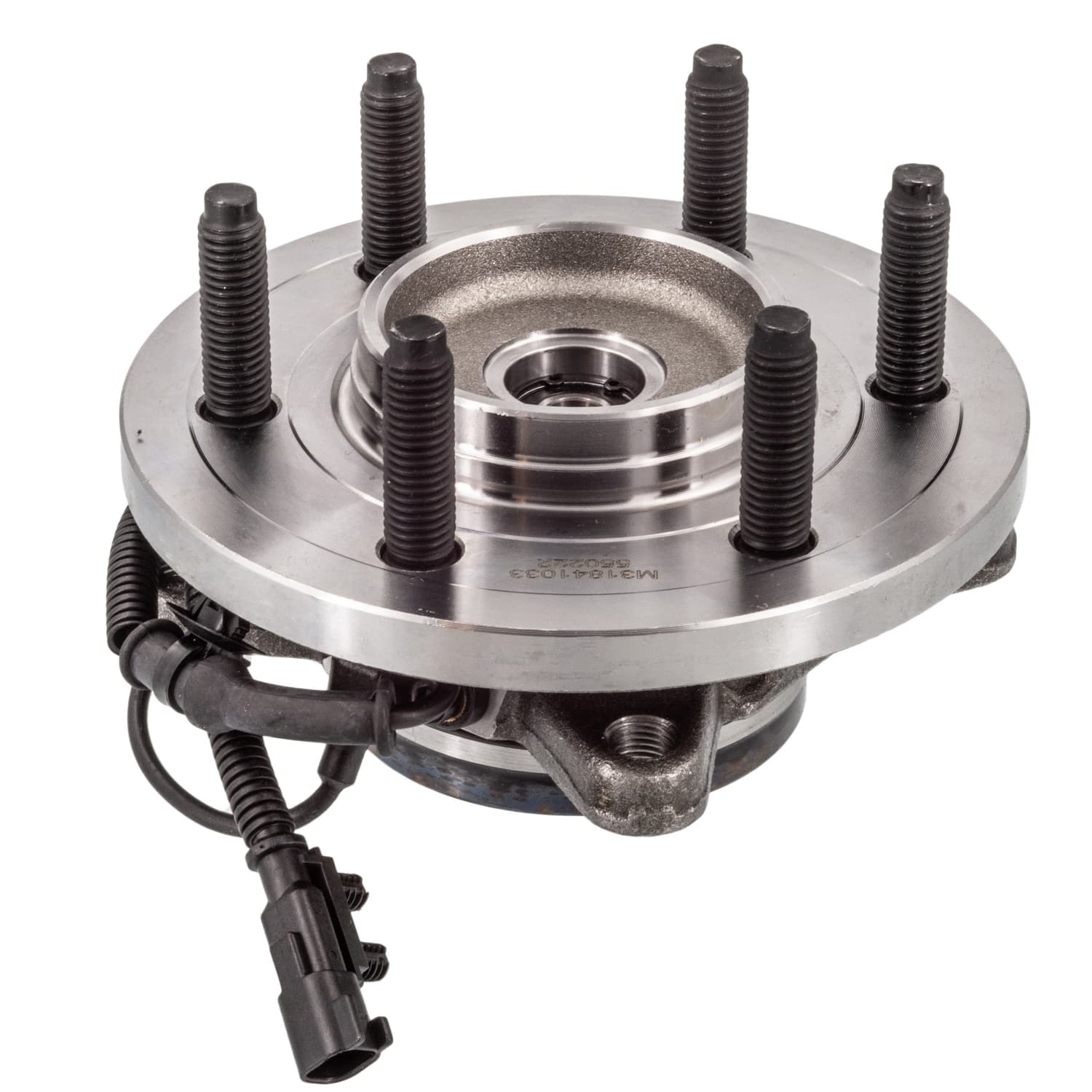

New Hub Assembly Compatible With Ford F-150 2011 2012 2013 2014 By SP550222 PT515166

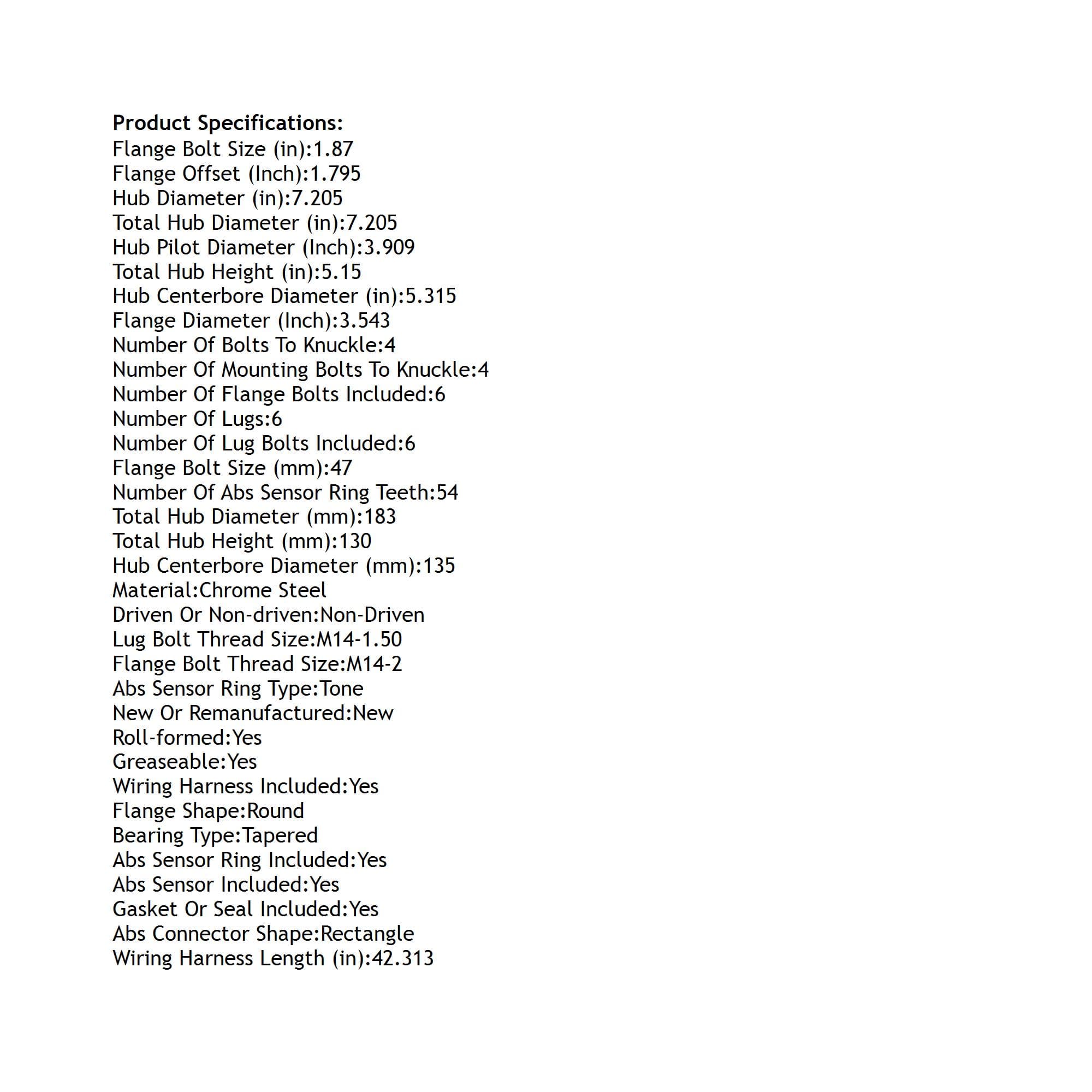

Rareelectrical Compatible With Ford,F-150 This Item Fits Various Applications By Part Number. Please Check Your Part Number To Ensure Fitment. Product Type: Hub Assembly Specifications: Abs Connector Shape: Rectangle Abs Sensor Included: Yes Abs Sensor Ring Included: Yes Abs Sensor Ring Type: Tone Bearing Type: Tapered Driven Or Non-Driven: Non-Driven Flange Bolt Size (In): 1.87 Flange Bolt Size (Mm): 47 Flange Bolt Thread Size: M14-2 Flange Diameter (Inch): 3.543 Flange Offset (Inch): 1.795 Flange Shape: Round Gasket Or Seal Included: Yes Greaseable: Yes Hub Centerbore Diameter (In): 5.315 Hub Centerbore Diameter (Mm): 135 Hub Diameter (In): 7.205 Hub Pilot Diameter (Inch): 3.909 Lug Bolt Thread Size: M14-1.50 Material: Chrome Steel New Or Remanufactured: New Number Of Abs Sensor Ring Teeth: 54 Number Of Bolts To Knuckle: 4 Number Of Flange Bolts Included: 6 Number Of Lug Bolts Included: 6 Number Of Lugs: 6 Number Of Mounting Bolts To Knuckle: 4 Roll-Formed: Yes Total Hub Diameter (In): 7.205 Total Hub Diameter (Mm): 183 Total Hub Height (In): 5.15 Total Hub Height (Mm): 130 Wiring Harness Included: Yes Wiring Harness Length (In): 42.313 Replaces: Autopart International: 1411-639473 Centric Parts: 40265034 Ford: Cl3z 1104 L Mevotech: Mb40311 Moog Hub Assemblies: 515166 Motorcraft: Hub349 Pt515166 Napa: Pbr931100 Applications: Ford F-150 (2011-2014) Source: Aftermarket One Year Manufacturer's Warranty.
