Rareelectrical Fiat 500 Hub sku-14867301284 461202647590

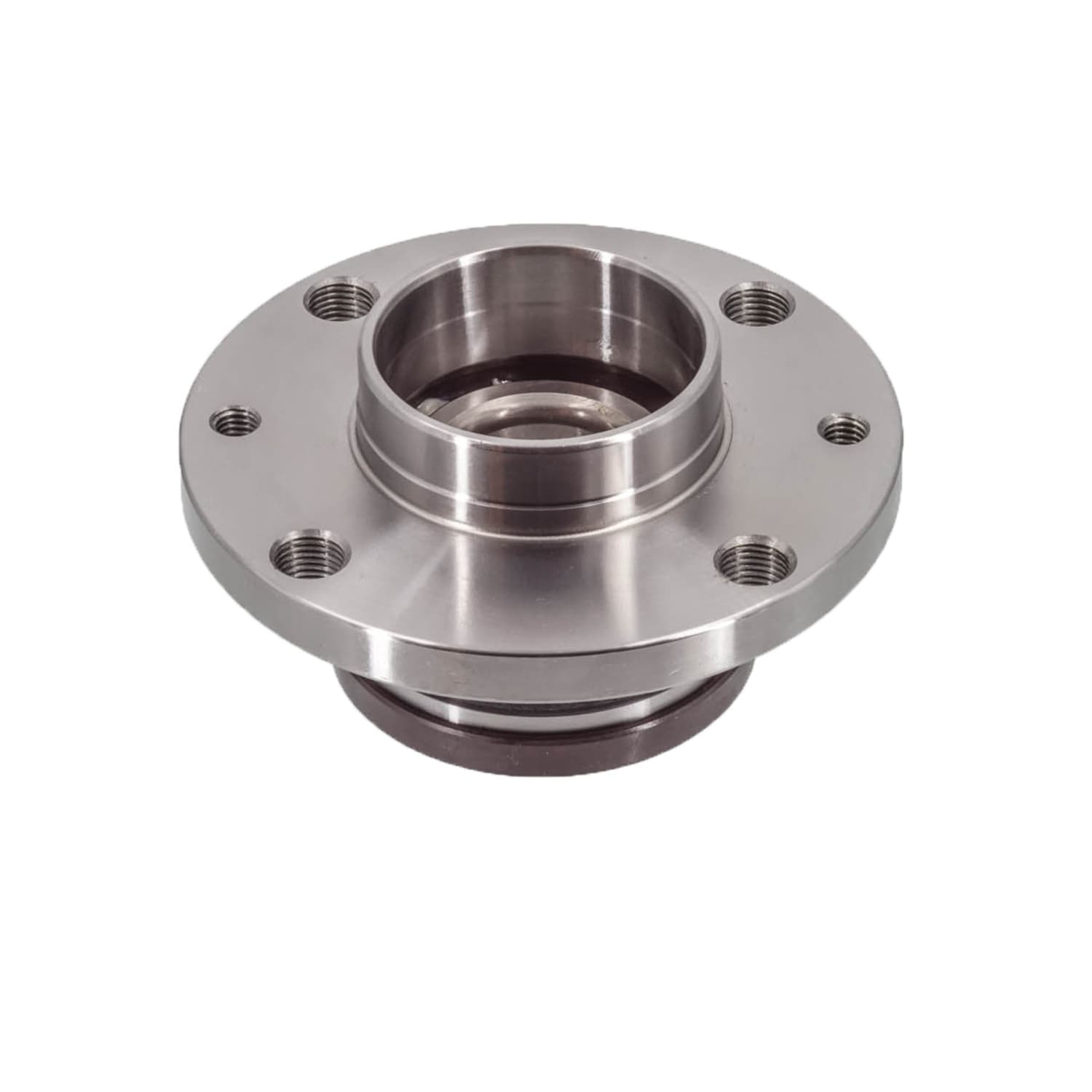

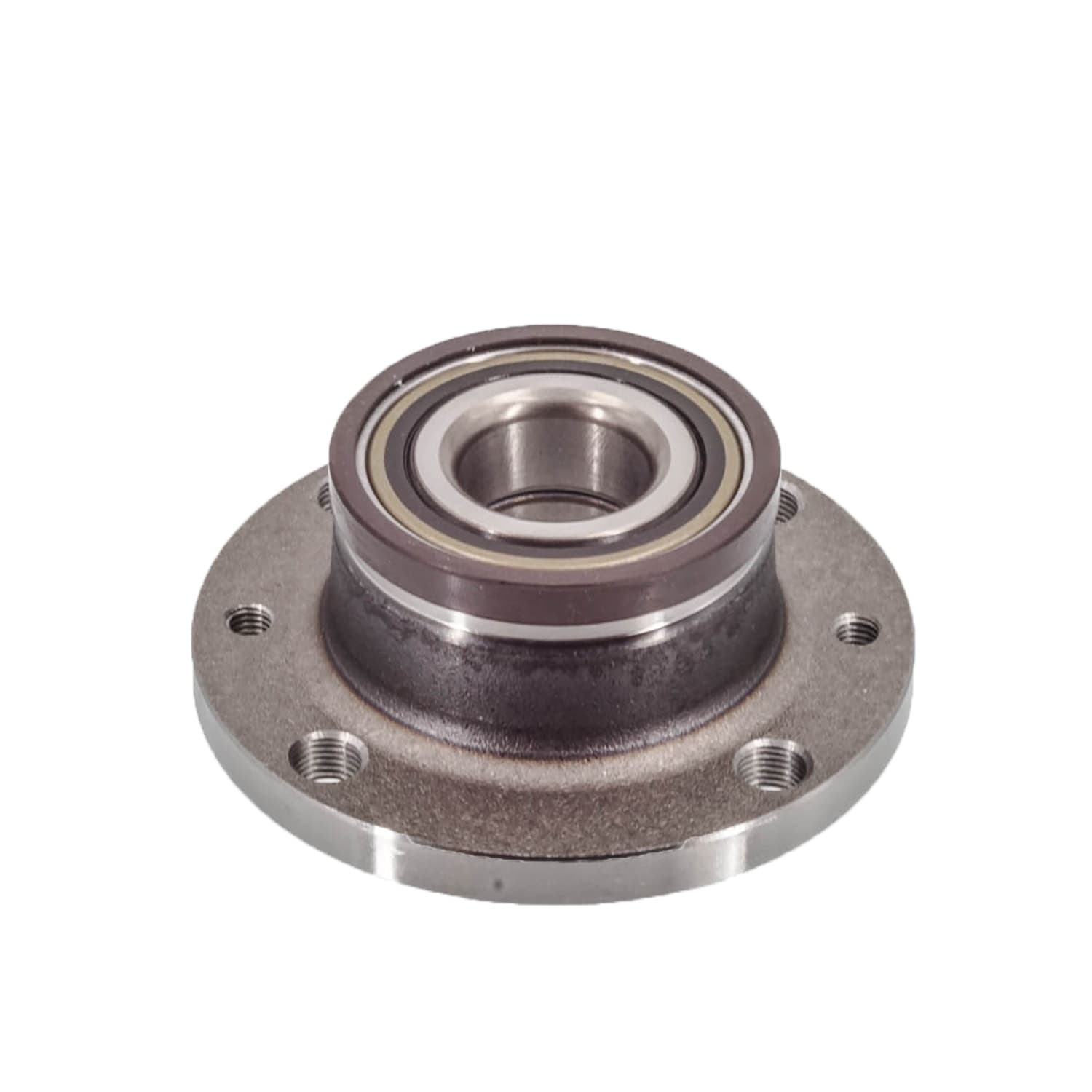

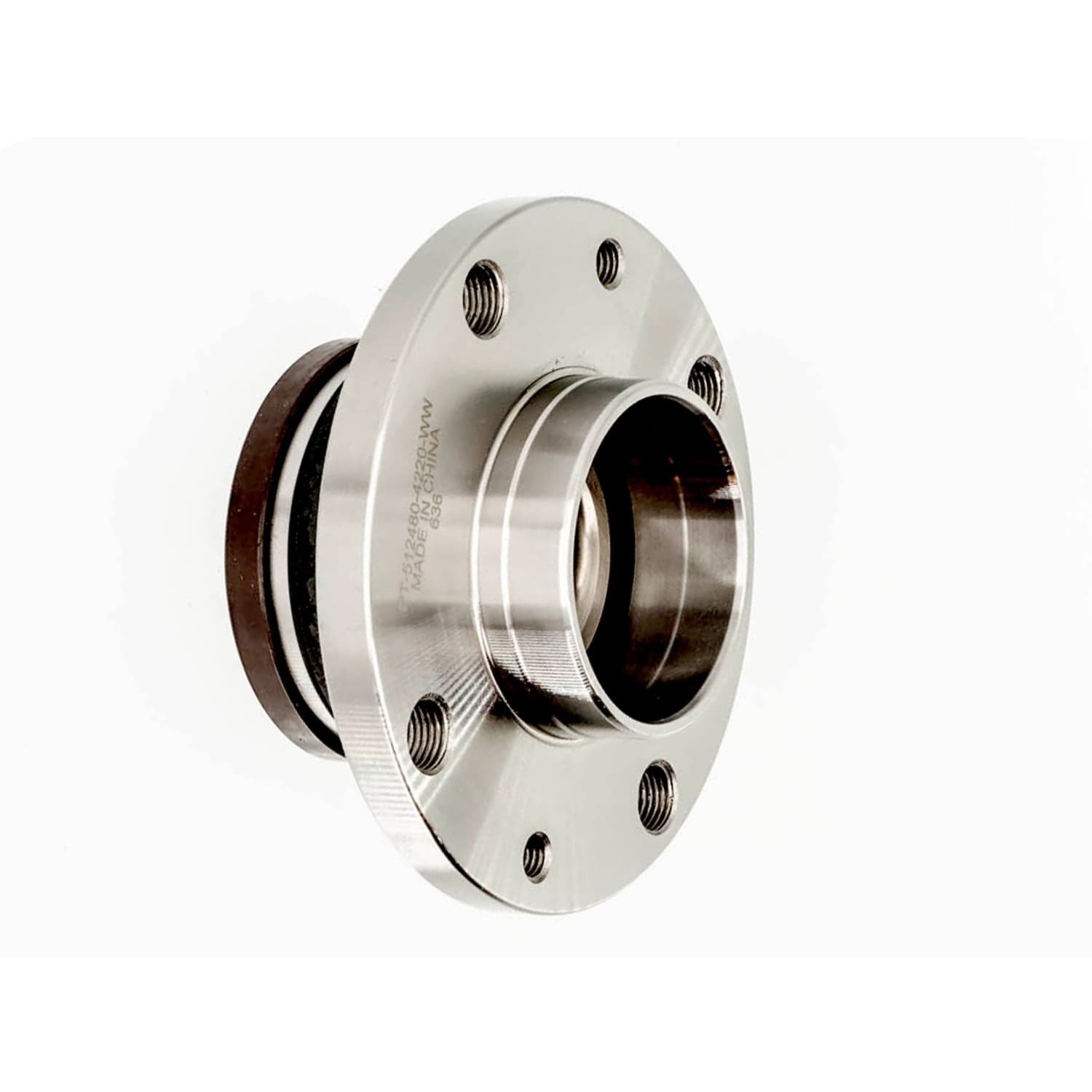

Rareelectrical offers this new, single hub assembly for Fiat 500 models from 2012, 2013, 2014, 2015, 2016, 2017, 2018 and 2019. It is compatible with the listed Fiat and Mevotech applications by part number; check your part number to confirm fitment. It is listed under Engine & Powertrain Replacement Parts. The hub has a ball bearing, a chrome steel body and a circular flange.

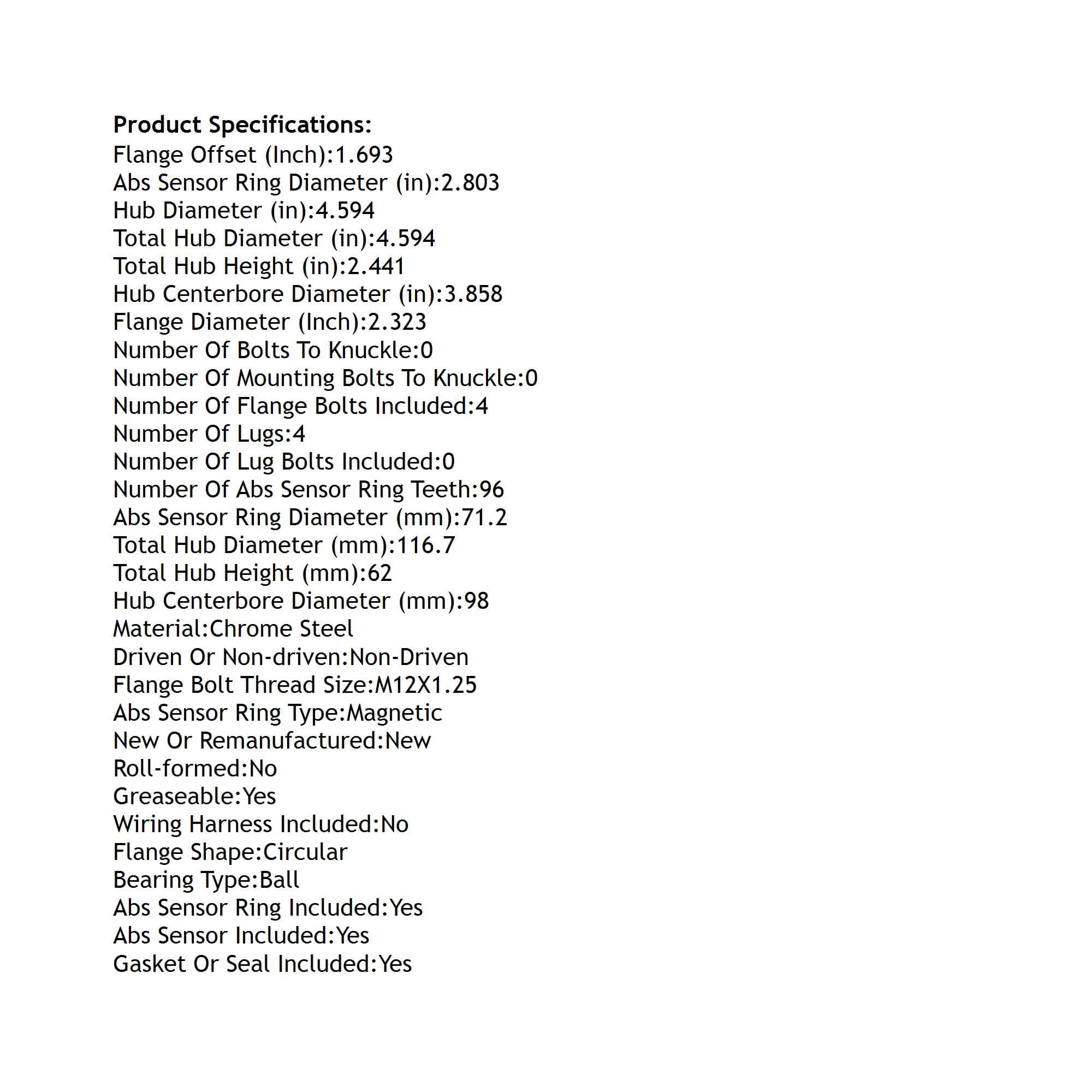

It is non-driven, greaseable and not roll-formed. An ABS sensor and magnetic ABS sensor ring are included, along with a gasket or seal. The ring measures 2.803 in (71.2 mm) in diameter and has 96 teeth. The flange bolt thread is M12x1.25; flange diameter is 2.323 in and offset is 1.693 in. The hub centerbore measures 3.858 in (98 mm), and the hub diameter is 4.594 in.

Total hub diameter is 4.594 in (116.7 mm), and total height is 2.441 in (62 mm). It has 4 lugs and includes 4 flange bolts, 0 lug bolts, 0 bolts to knuckle and 0 mounting bolts to knuckle. No wiring harness is included. Replacement references are PT512480, SKF BR930540, Autopart International 1410-556431, BCA WE61651, Beck/Arnley 051-6493, Centric Parts 41190009, FAG US 803191A, GSP 123480, Mevotech H512480, Moog Hub Assemblies 512480 and NAPA PBR930540.

Aftermarket source; one-year manufacturer's warranty. SKU: sku-14867301284. UPC: 461202647590.
